Stainless Steel Trench Drains

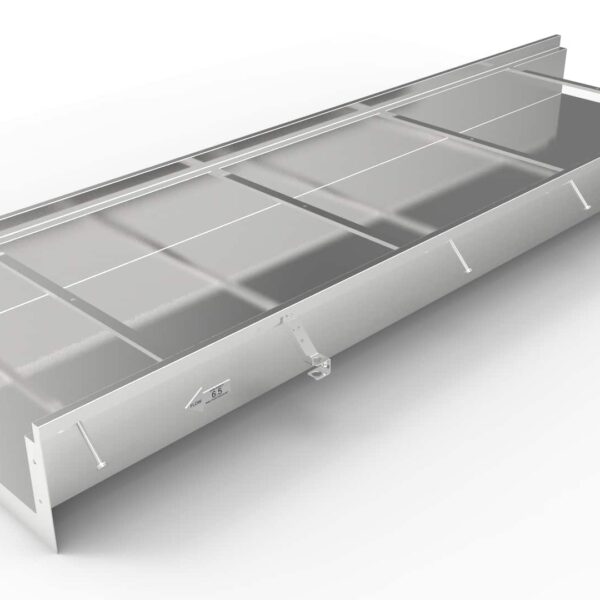

The Dura Trench stainless steel trench drain products are truly limitless.  Our in house production team has the capabilities to fabricate virtually any stainless trench drain product.  We manufacture many custom designed drainage systems for chemical, food and beverage, meat processors, munitions, and other industrial processes.  We offer stainless steel trench drains and floor drains in both T304 and T316 stainless.  Our standard stainless trench drain widths are 2", 4", 6", 8", 10", 12", 18", and 24" wide.  We have manufactured stainless steel trench drains as narrow as 3/4" wide to widths upwards of 48" wide.  Stainless steel trench drains can have very deep depths upwards of 6 feet deep, with multiple slopes, turns, and other custom features.  Our custom stainless steel trench drain products are often shipped in lengths as long as 40 feet to minimize field welding.

The more standard variety of our stainless trench drains come in 8 foot sections with built in slope and flanges for bolt together connection.  We also have the stainless steel floor drains, catch basins, clean-outs, p-traps, etc. to ensure you can get a complete system from one source.  Turn to Dura Trench for your next stainless steel trench drain project!

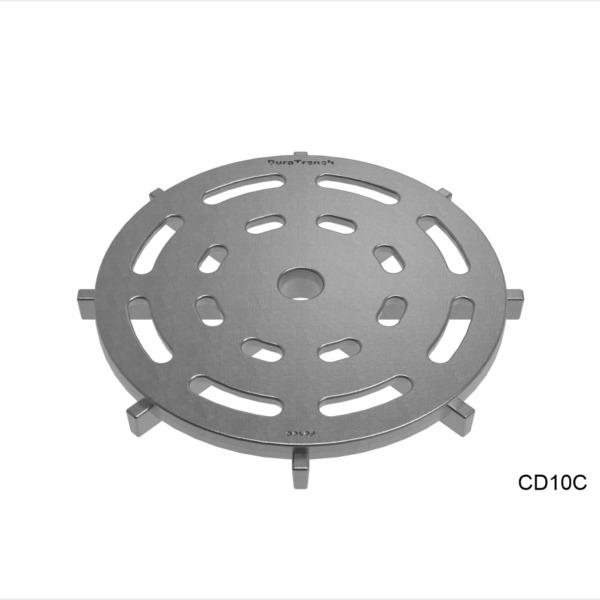

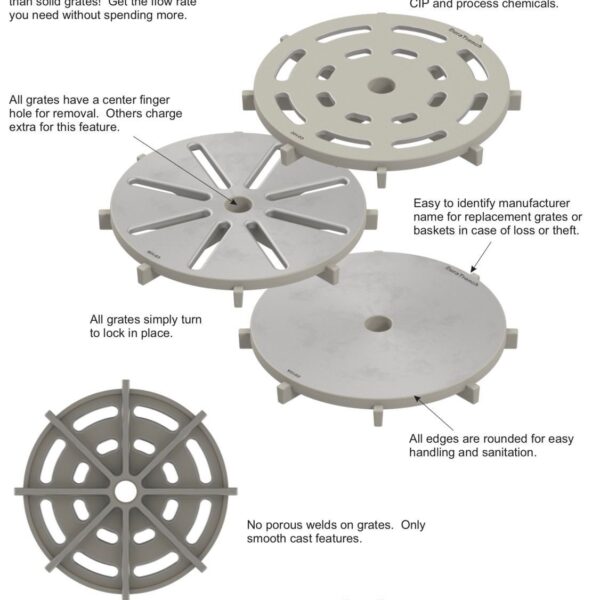

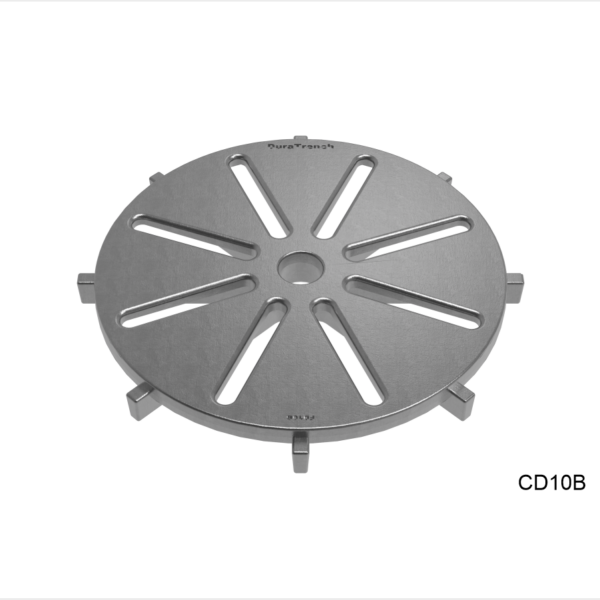

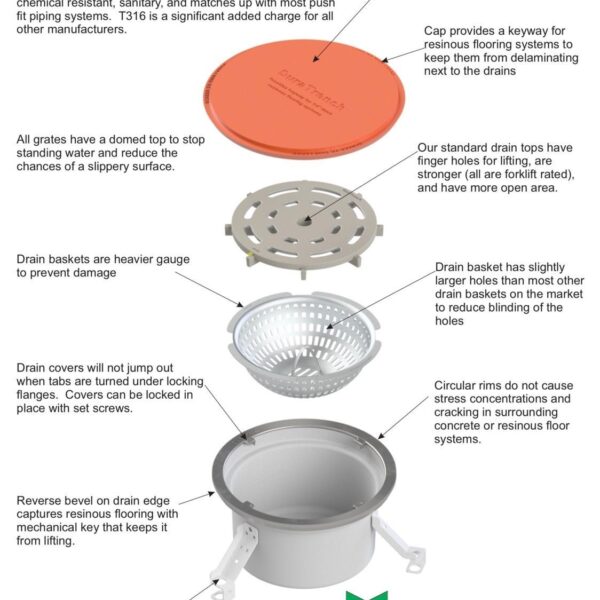

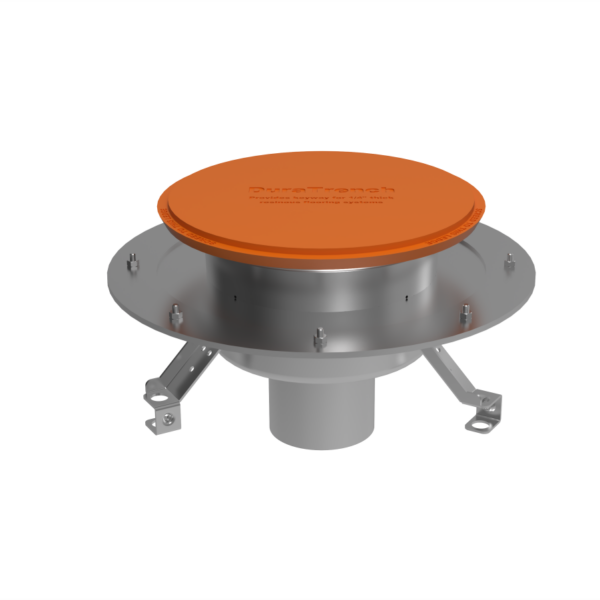

These heavy duty stainless floor drains are typically used in food process applications or industrial applications where heavy loads are required while not compromising the sanitary condition.  The inside of these stainless drains offer strainer baskets and are smooth and sanitary.  There are several different grates and strainer baskets that can be utilized depending on loading, particulate size, flows, etc.  Our stainless drains have optional membrane clamping collars, factory welded stainless p-traps, and multiple pipe size offerings.

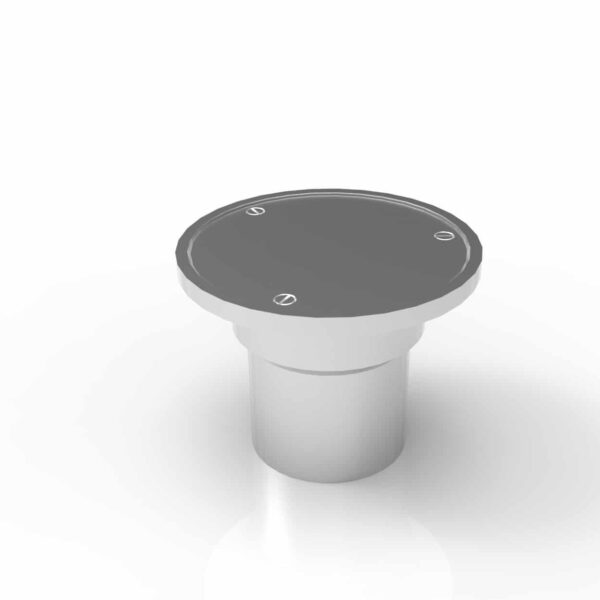

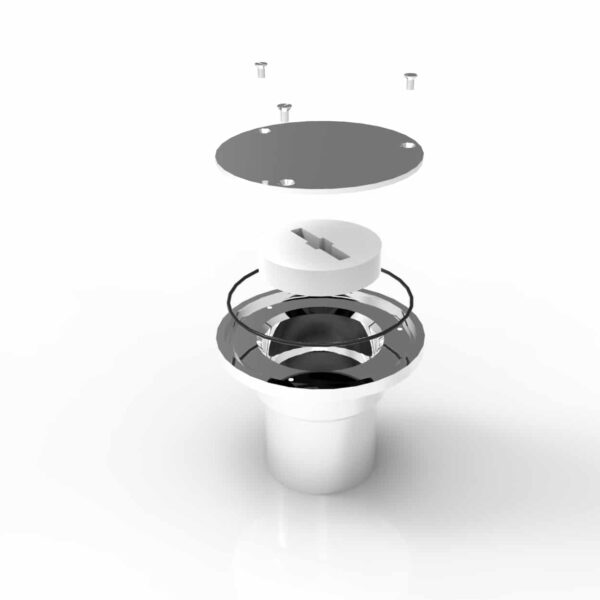

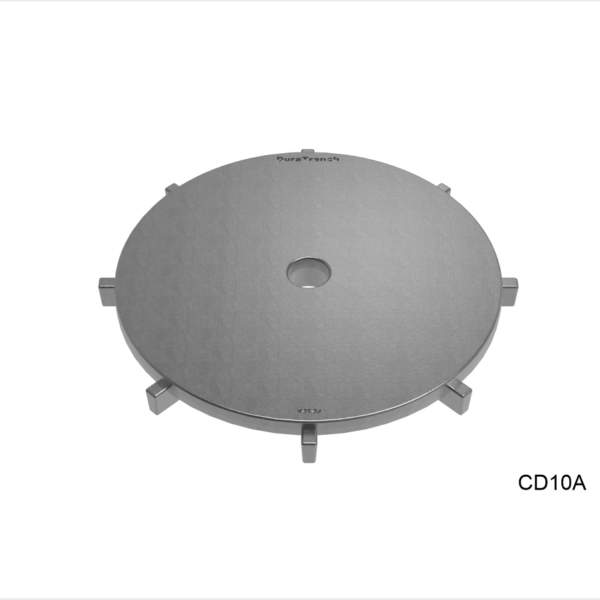

These heavy duty stainless steel clean outs come in various sizes, are forklift rated, have an inner seal to prevent foul air from exiting the clean out, and are built to last a lifetime.

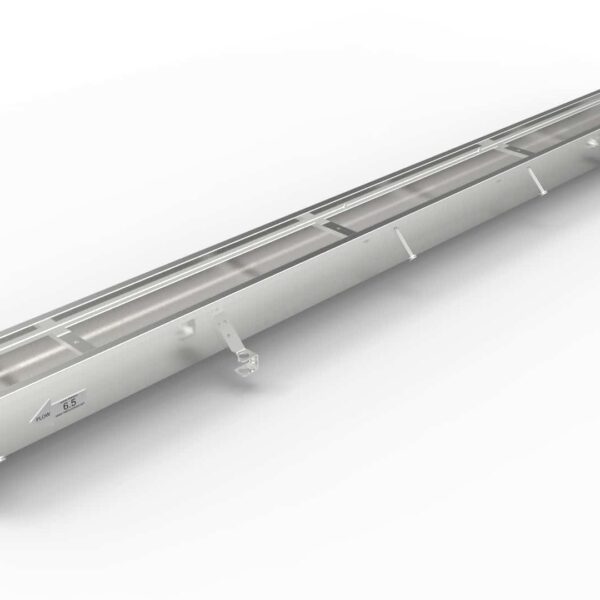

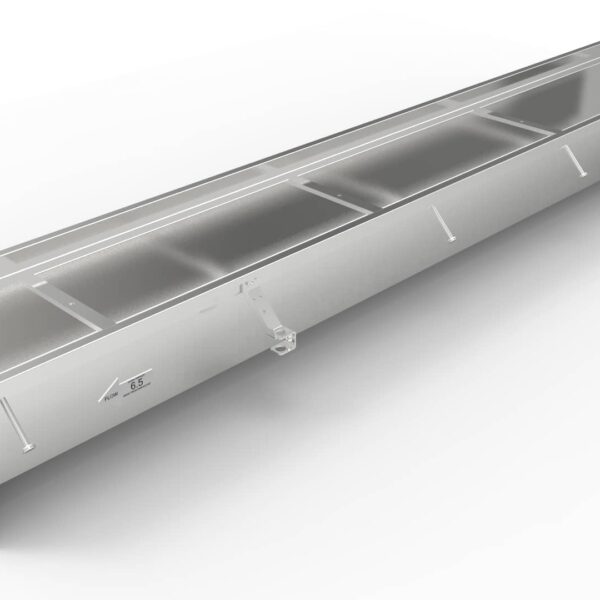

This specialty stainless steel trench drain is typically used in sanitary or chemical processing areas.  This size can handle flows in the 0.3 cfs (150 gpm) range.  This stainless steel trench comes in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of 3" wide trench drain grates to meet any design requirement.  All stainless trench drains can be shipped in long lengths to minimize field welding.

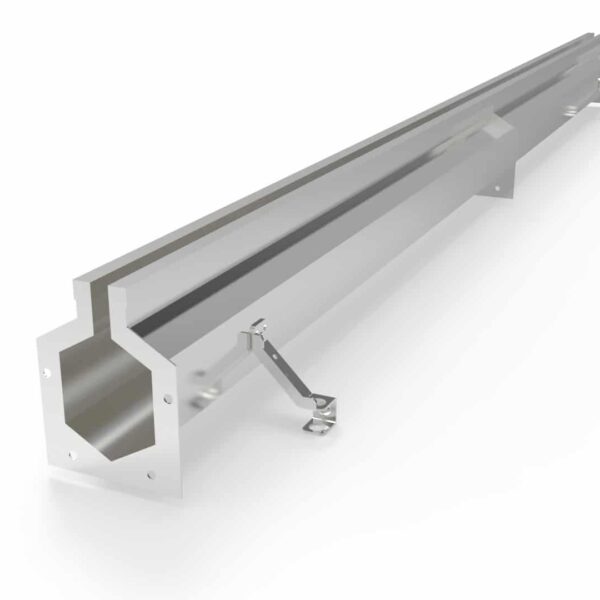

This specialty stainless slotted drain is typically used in sanitary or chemical processing areas.  This size can handle flows in the 0.3 cfs (150 gpm) range.  The stainless steel slot drain comes in pre-sloped 8' lengths with installation aides standard.  All stainless slotted drains can be shipped in long lengths to minimize field welding.

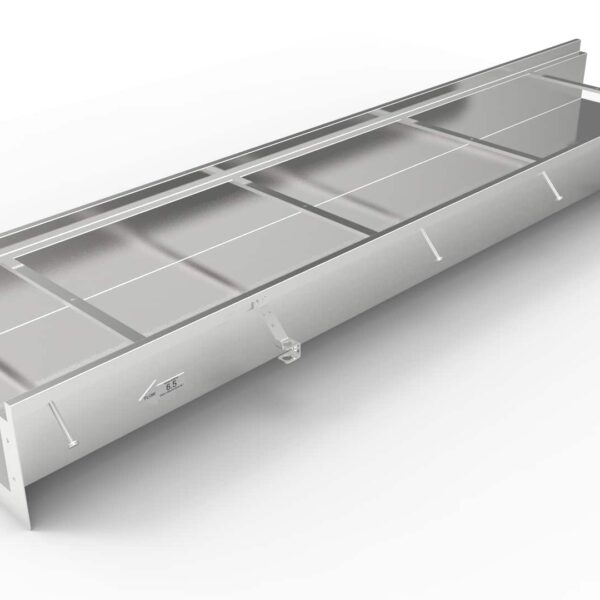

This specialty stainless steel trench drain is typically used in sanitary or chemical processing areas.  This size can handle flows in the 1.5 cfs (700 gpm) range.  Dura Trench stainless steel trench drains come in pre-sloped 8' lengths with heavy plywood cover and installation aides standard.  Offered with a wide selection of 5" wide trench drain grates to meet any design requirement.  All stainless trench drains can be shipped in long lengths to minimize field welding.

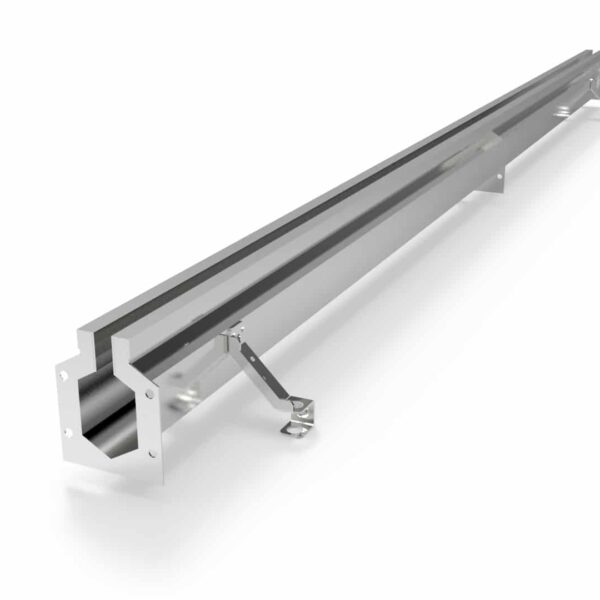

This specialty stainless steel slotted drain is typically used in sanitary or chemical processing areas.  This size can handle flows in the .8 cfs (360 gpm) range.  Dura Trench stainless slot drains come in pre-sloped 8' lengths with installation aides standard.  All stainless slotted drains can be shipped in long lengths to minimize field welding.

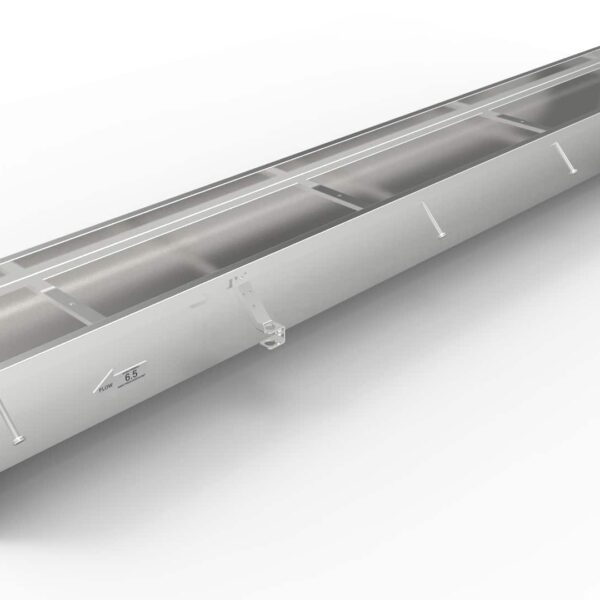

This specialty stainless steel trench drain is typically used in sanitary or chemical processing areas.  This size can handle flows in the 3.9 cfs (1750 gpm) range.  Dura Trench stainless steel trench drains come in pre-sloped 8' lengths with heavy plywood cover and installation aides standard.  Offered with a wide selection of 8" wide trench drain grates to meet any design requirement.  All stainless trench drains can be shipped in long lengths to minimize field welding.

This specialty stainless steel trench drain is typically used in sanitary or chemical processing areas.  This size can handle flows in the 6 cfs (2275 gpm) range.  Dura Trench stainless steel trench drains come in pre-sloped 8' lengths with heavy plywood cover and installation aides standard.  Offered with a wide selection of 10" wide trench drain grates to meet any design requirement.  All stainless trench drains can be shipped in long lengths to minimize field welding.

This specialty stainless steel trench drain is typically used in sanitary or chemical processing areas.  This size can handle flows in the 8.8 cfs (3900 gpm) range.  Dura Trench stainless steel trench drains come in pre-sloped 8' lengths with heavy plywood cover and installation aides standard.  Offered with a wide selection of 12" wide trench drain grates to meet any design requirement.  All stainless drains can be shipped in long lengths to minimize field welding.

This specialty stainless steel trench drain is typically used in sanitary or chemical processing areas.  This size can handle flows in the 11.8 cfs (5275 gpm) range.  Dura Trench stainless steel trench drains come in pre-sloped 8' lengths with heavy plywood cover and installation aides standard.  Offered with a wide selection of 14" wide trench drain grates to meet any design requirement.  All stainless trench drains can be shipped in long lengths to minimize field welding.

This specialty stainless steel trench drain is typically used in sanitary or chemical processing areas.  This size can handle flows in the 15 cfs (6725 gpm) range.  Dura Trench stainless steel trench drains come in pre-sloped 8' lengths with heavy plywood cover and installation aides standard.  Offered with a wide selection of 20" wide trench drain grates to meet any design requirement.  All stainless trench drains can be shipped in long lengths to minimize field welding.

This specialty stainless steel trench drain is typically used in sanitary or chemical processing areas.  This size can handle flows in the 22.6 cfs (10,150 gpm) range.  Dura Trench stainless steel trench drains come in pre-sloped 8' lengths with heavy plywood cover and installation aides standard.  Offered with a wide selection of 26" wide trench drain grates to meet any design requirement.  All stainless trench drains can be shipped in long lengths to minimize field welding.

Please reload

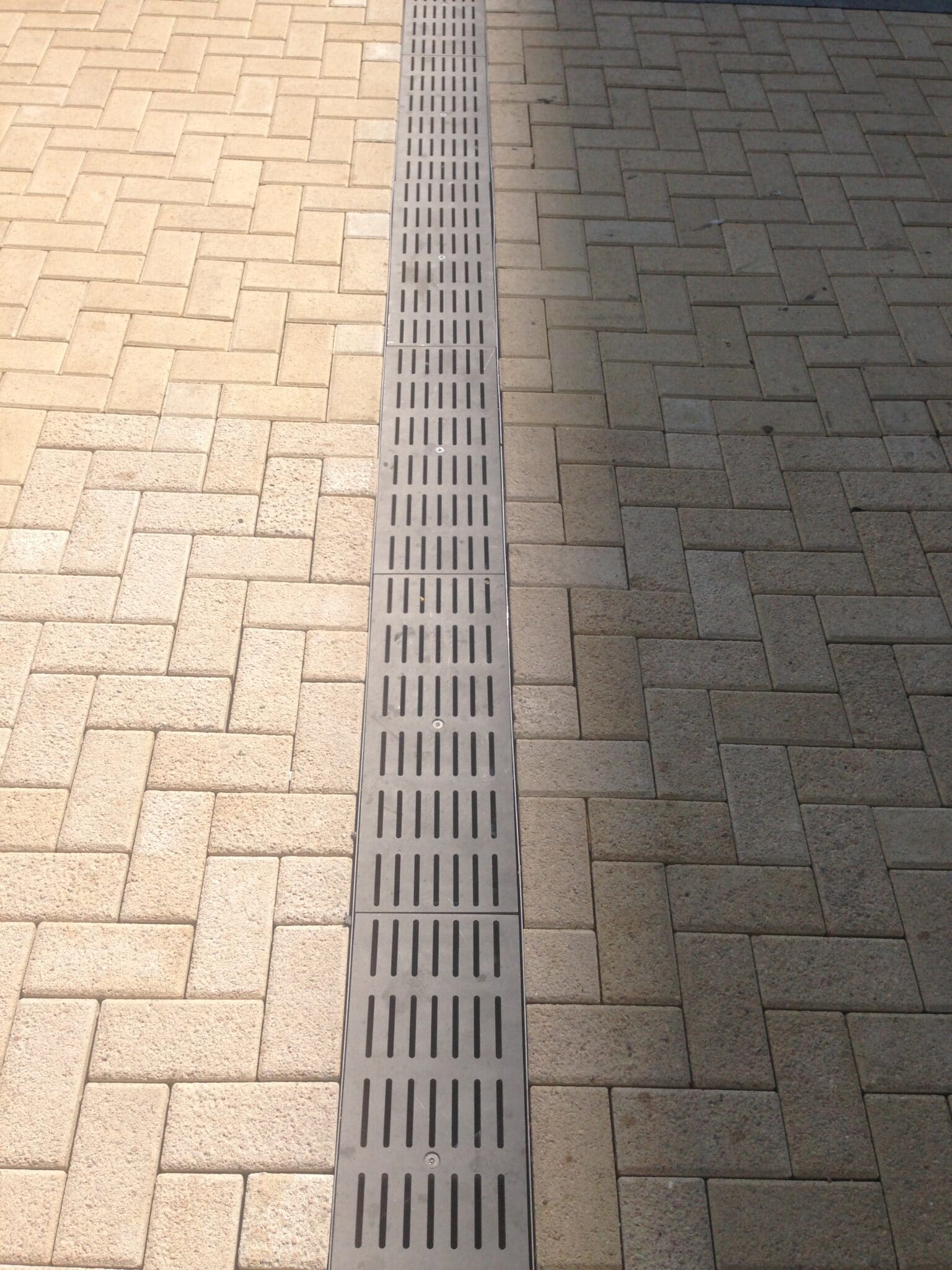

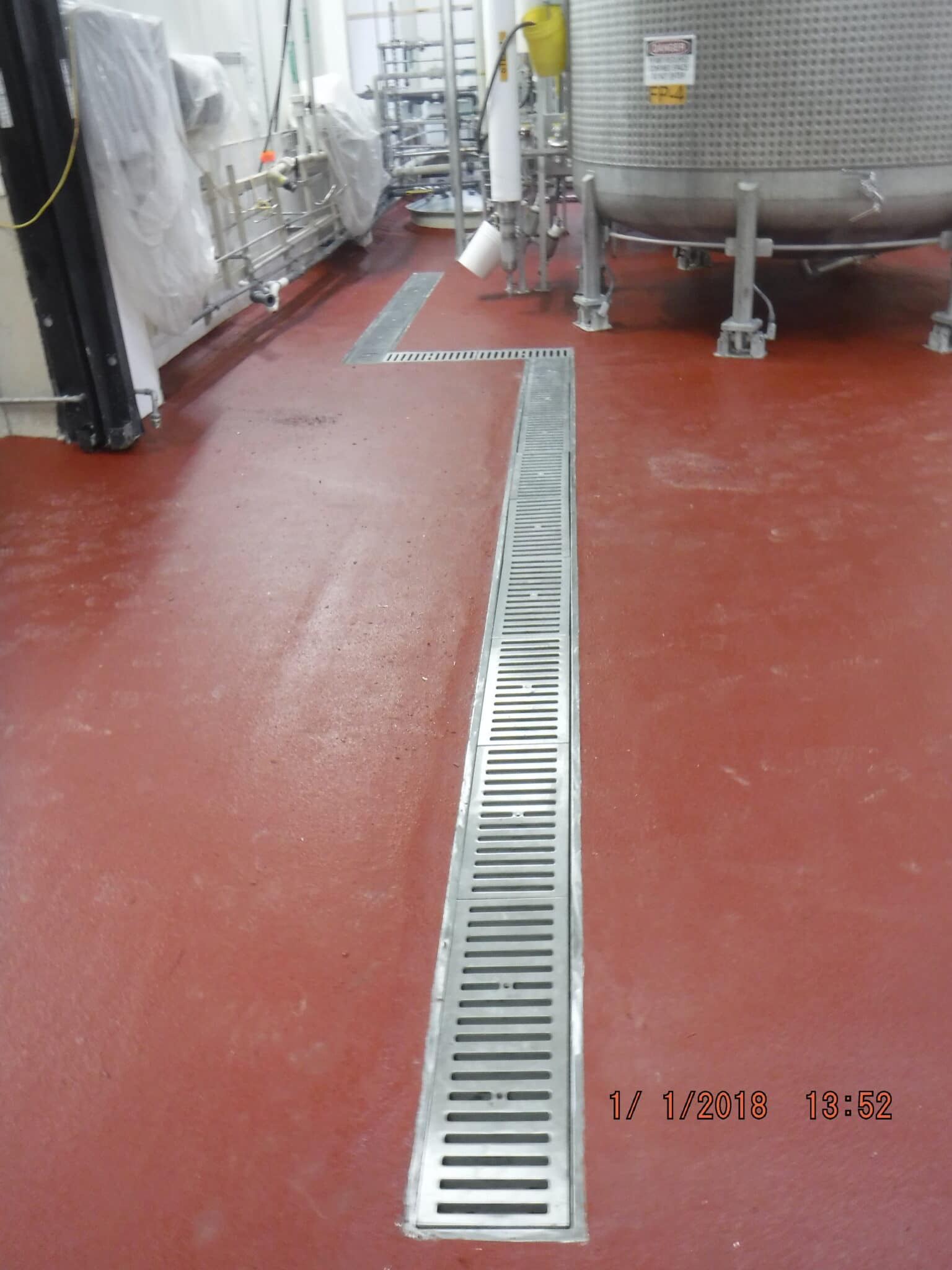

Stainless Trench Drain Gallery



Dura Trench is dedicated to be a leader in the stainless steel trench drain and stainless steel slot drain market.  We have invested heavily in the technology to manufacture precision pre-sloped stainless steel trench drain systems and stainless steel slot drain systems.  We have reviewed how a traditional stainless steel trench drain was being built and looked for ways to make it better.

We offer our stainless steel channel drains in any thickness you desire.  Commonly our stainless steel trench drain and slot drain bodies are made from 14 gauge stainless but we have worked a lot with thin gauges like 18 gauge, 16 gauge, 12 gauge, 10 gauge, 7 gauge, and even 1/4" thick stainless bodies.  We also fabricate stainless steel trench drains from T304 or T316 stainless.  We finish the stainless steel channel drains with a class 2b or sandblast finish.

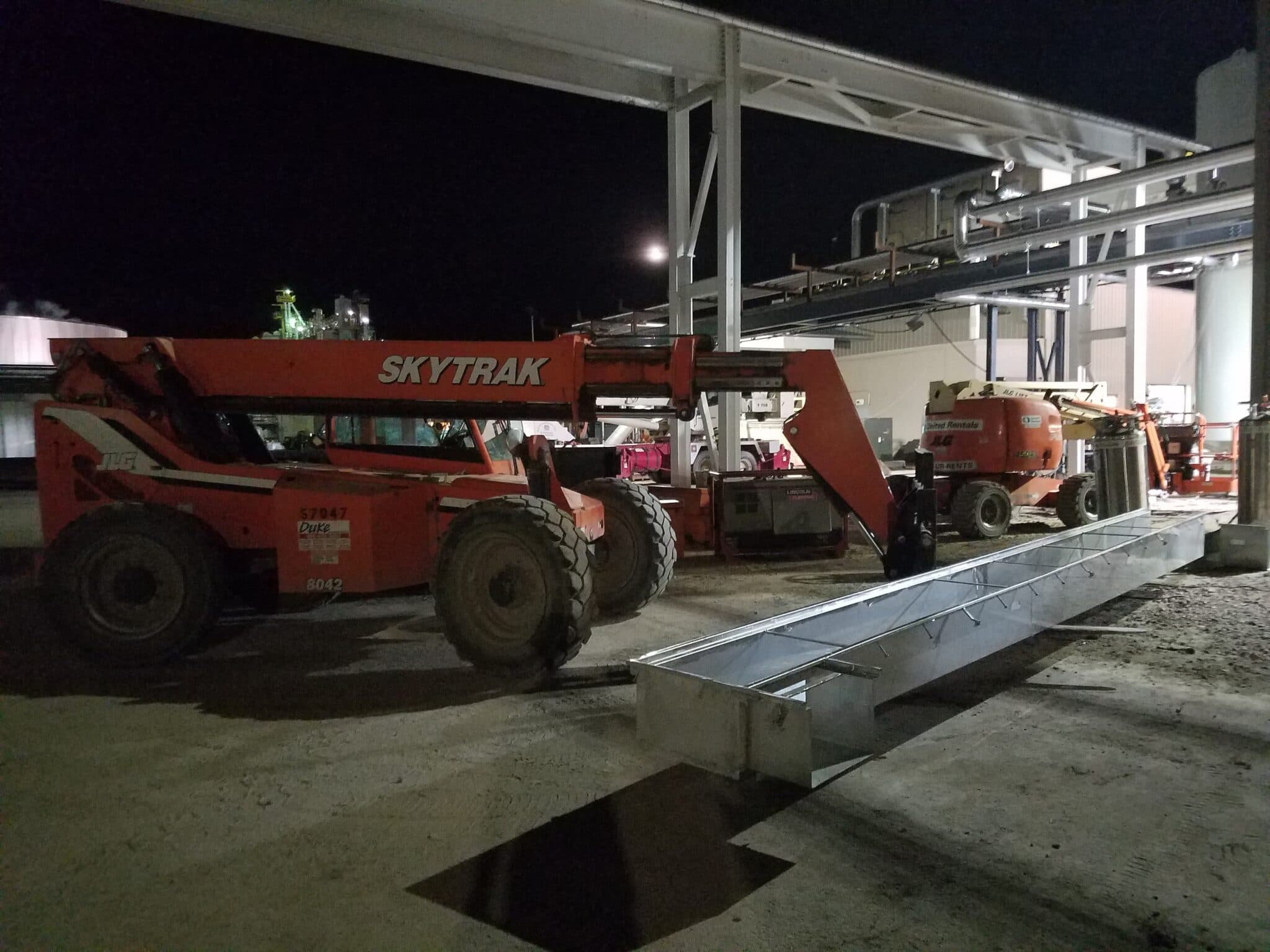

One of the difficulties with stainless steel trench drains is making long runs where all the joints line up properly.  Over the years, Dura Trench has heavily invested in high precision CNC and robotic equipment for its stainless steel trench drains.  This allows the stainless channel drain bodies to line up precisely for easier fit up and welding.  We offer the joints as a butt weld or a flange connection on our stainless steel slot drains and trench drains.  To reduce installation time in the field we can make stainless steel trench drains in lengths as long as we can ship.  This is typically about 48 to 50 foot.

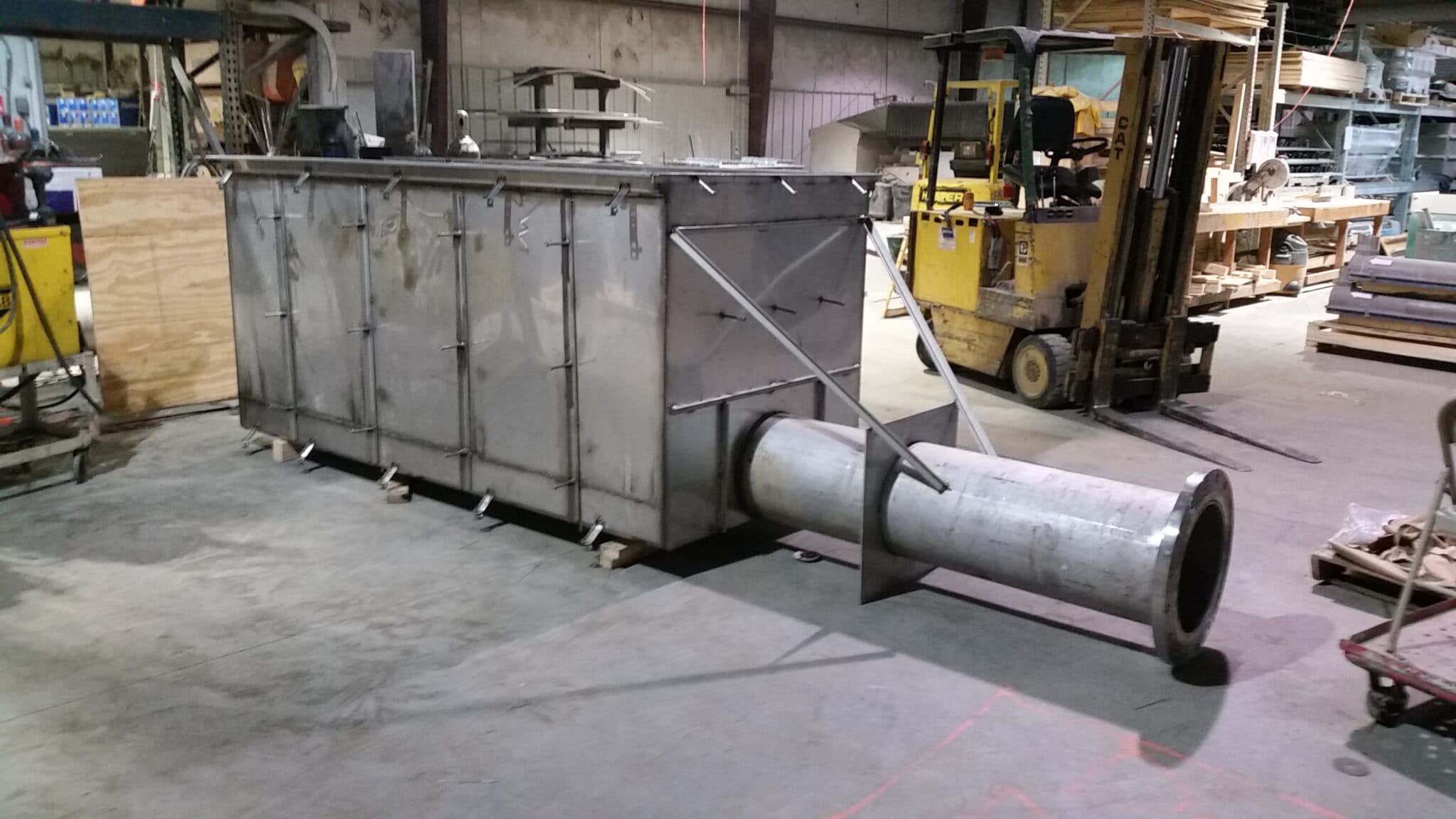

The depth of a stainless steel trench drain or stainless slot drain is an issue for many fabricators.  It takes special equipment to produce stainless steel channel drains deeper than about 18 inches deep.  Dura Trench has committed to being one of the best at making complicated stainless steel trench drains and stainless slot drain so we have made the investment in the proper equipment to make deep parts.  We have made stainless steel trench drains to depths in excess of 48".  If you can dream it - we can build it.

Dura Trench stainless steel trench drains are offered in the following widths: 2" stainless steel trench drain, 4" stainless steel trench drain, 6" stainless steel trench drain, 8" stainless steel trench drain, 10" stainless steel trench drain, 12" stainless steel trench drain, 18" stainless steel trench drain24" stainless steel trench drain, 36" stainless steel trench drain, 48" stainless steel trench drain, and any other custom size you may need.  Our stainless steel slot drains are offered in the following diameters:  3/4" stainless steel slot drain, 2" stainless steel slot drain, 4" stainless steel slot drain, 6" stainless steel slot drain, 8" stainless steel slot drain, 12" stainless steel slot drain, 15" stainless steel slot drain, 18" stainless steel slot drain, and any other custom size you may need.

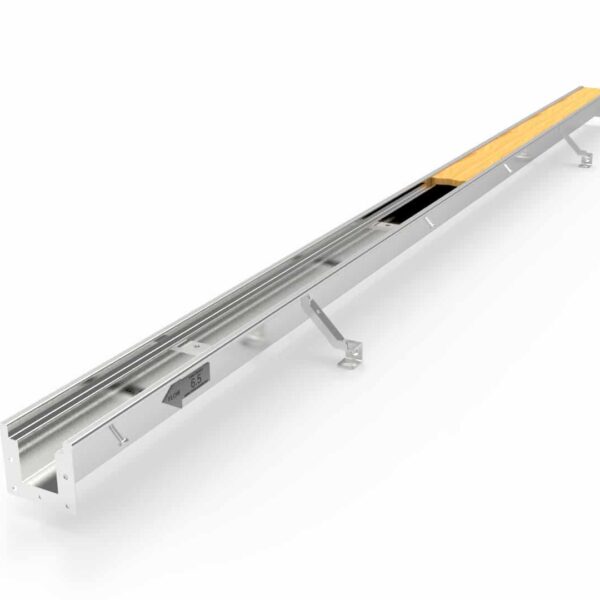

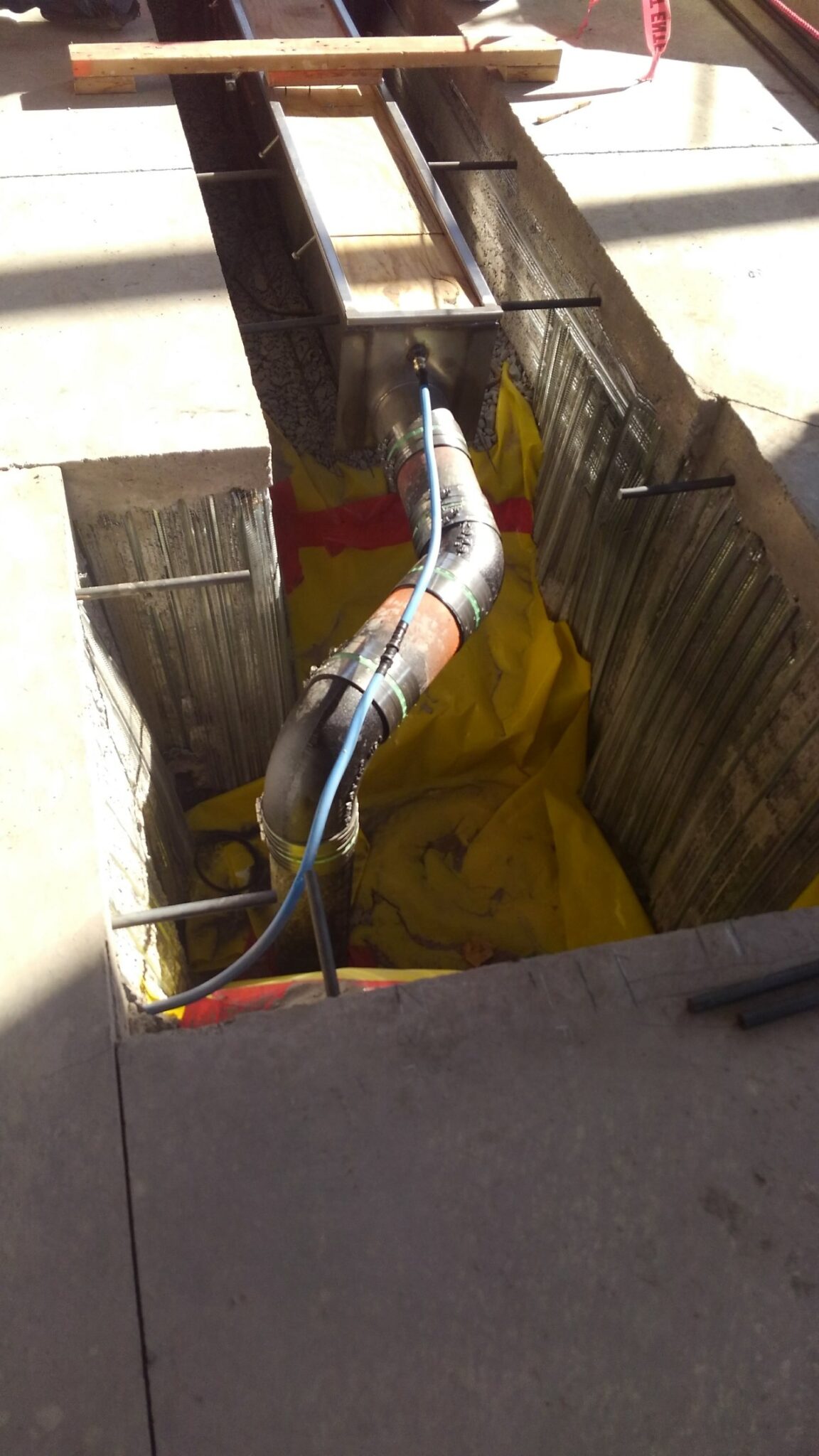

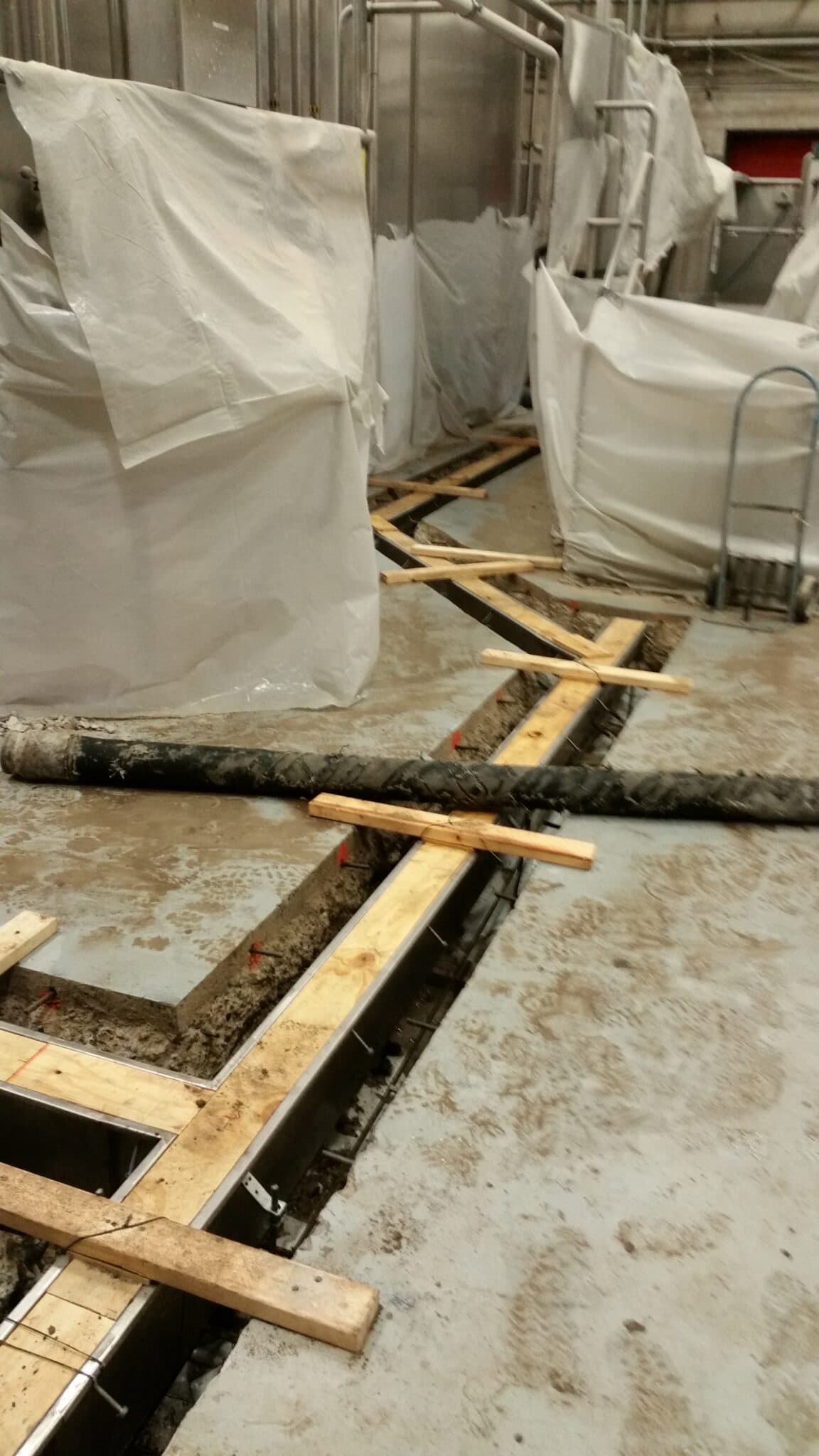

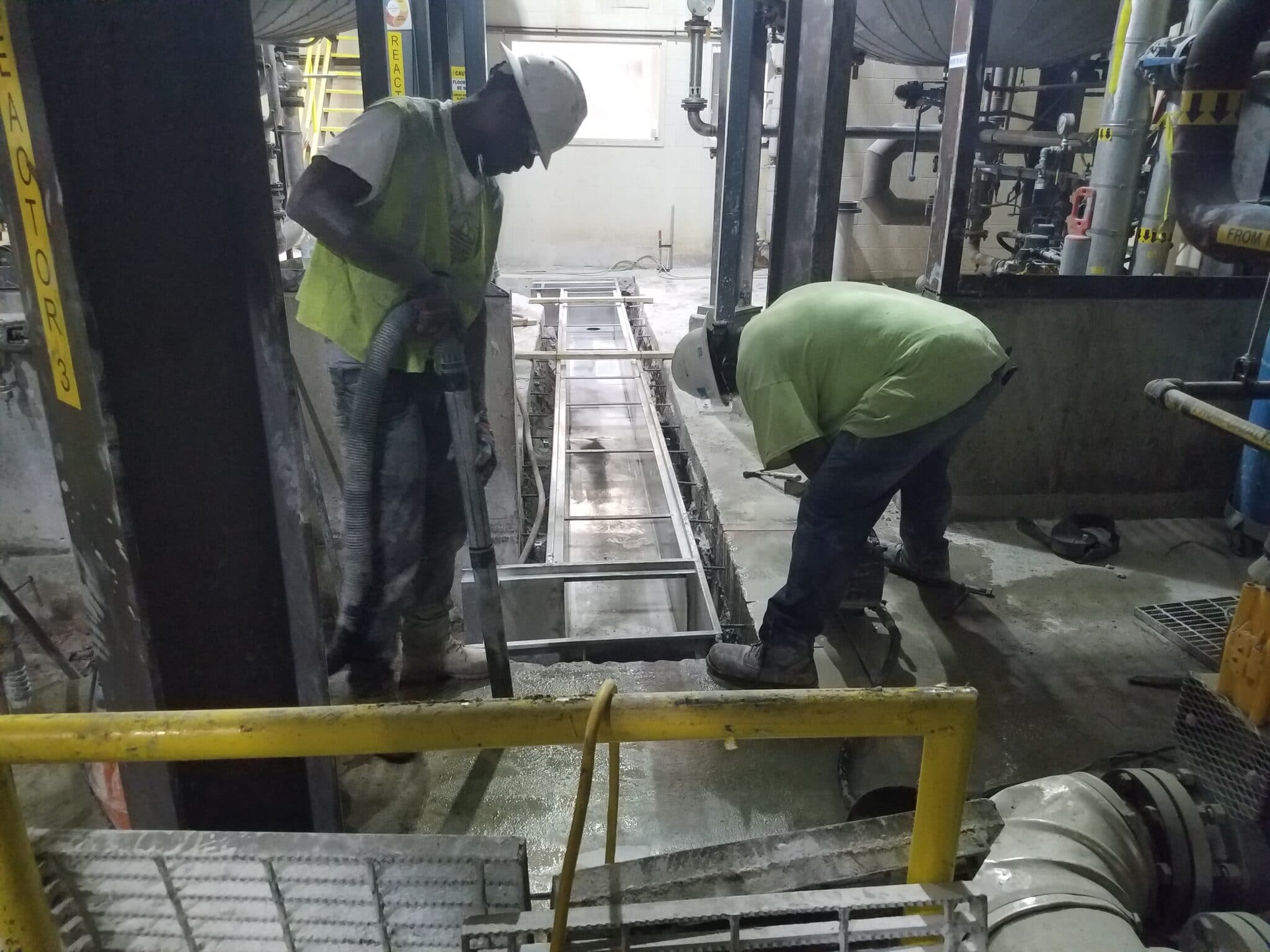

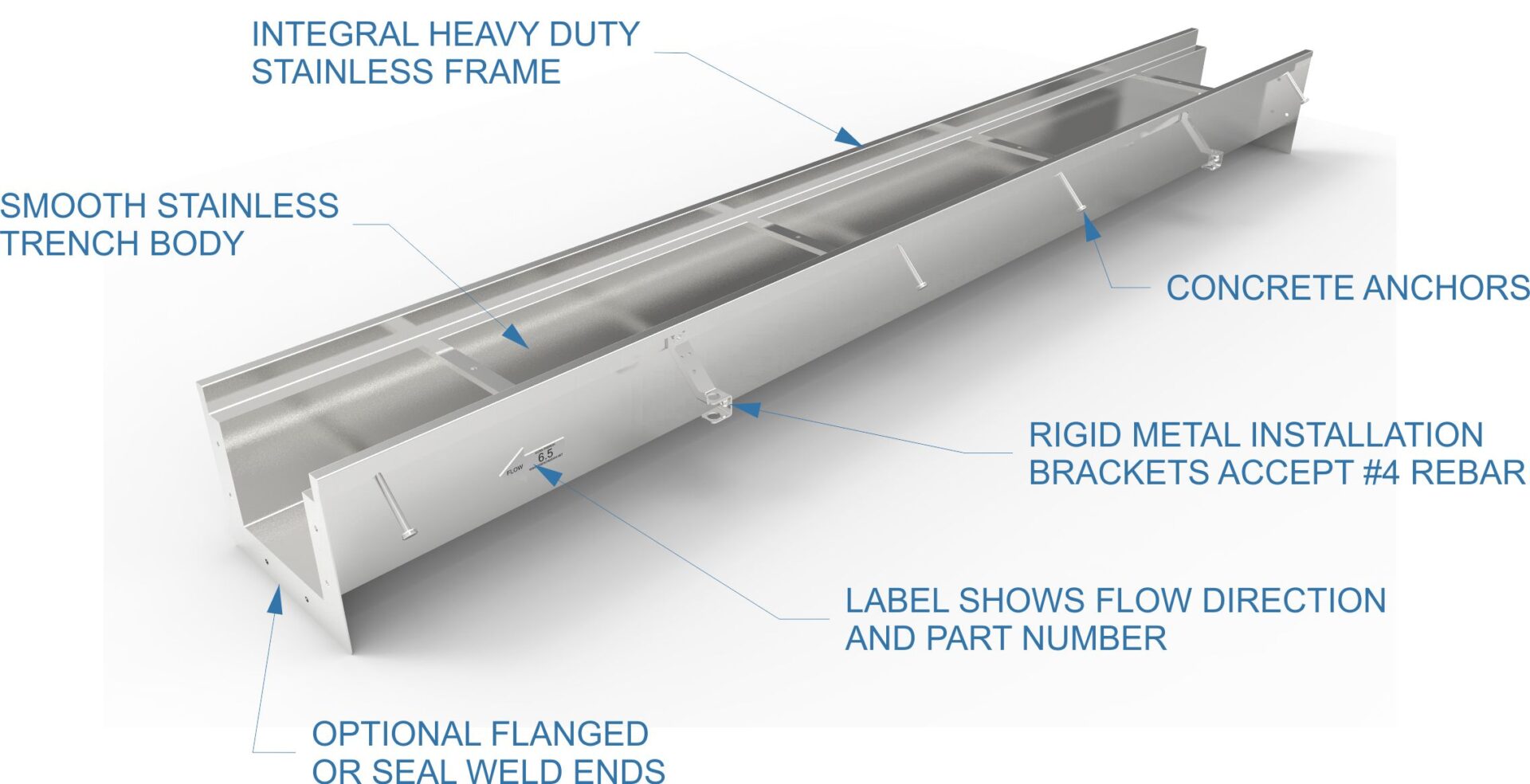

We believe the installer is important and his time is valuable, so we always put some focus on how our stainless steel slot drains and stainless steel trench drains will install.  We attach our proven rigid metal installation devices on the sides of our stainless channel drains to help the installer hold the stainless slot drain or trench drain on grade.  This device will also resist the flotation that happens when the concrete is poured.  Dura Trench stainless steel trench drains are also shipped with plywood in the top of the drain.  This keeps concrete out of the stainless steel channel drain during the placement.  The installer can also use this wood to attach bracing to keep the drain straight.

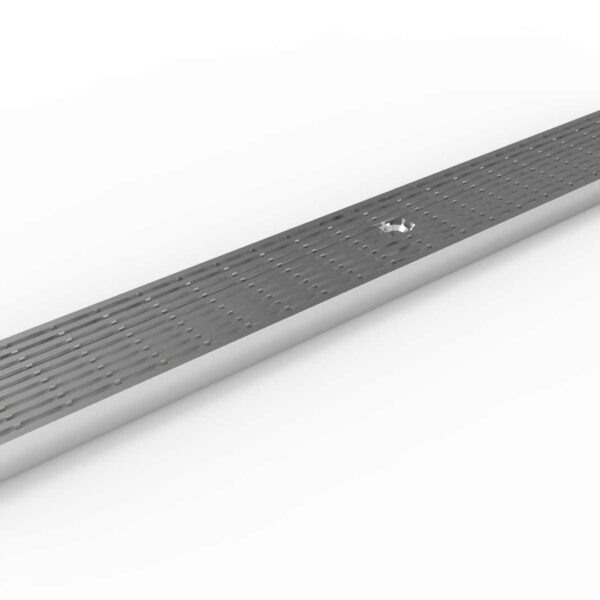

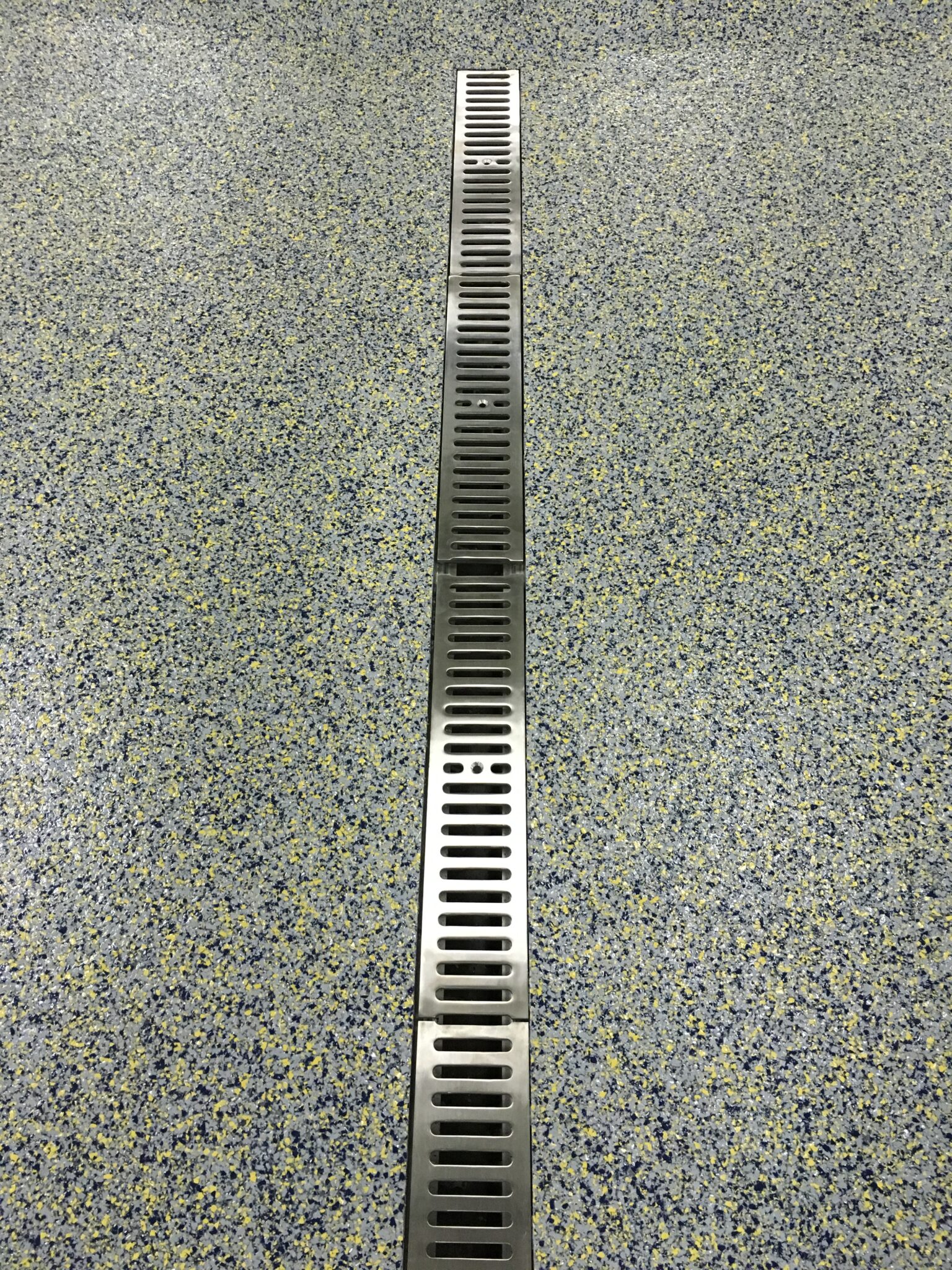

Grating construction is another area where Dura Trench is changing the way stainless steel trench drains are viewed.  There should be options!  We have a larger selection of stainless steel trench drain grates than anyone else.  We ensure they are industrial strength, not those week flimsy grates that many others produce.  A stainless steel trench drain is purchased because the drain needs to last in a harsh environment?  Why shouldn't the grating be built for the same environment.  We have slotted, ADA compliant, serrated, solid covers, mesh grates, bar grates, and many others.  While it is typical to install a stainless grate on a stainless steel trench drain, we do have other options like fiberglass, iron, plastic, brass, bronze, stone, etc. if needed.

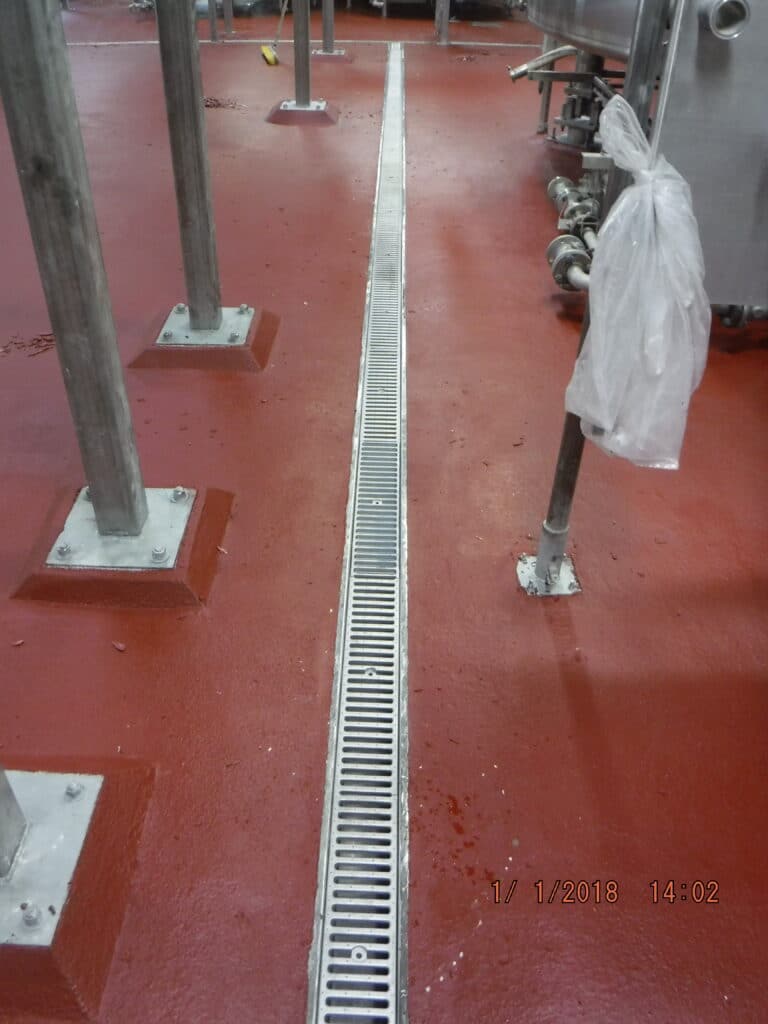

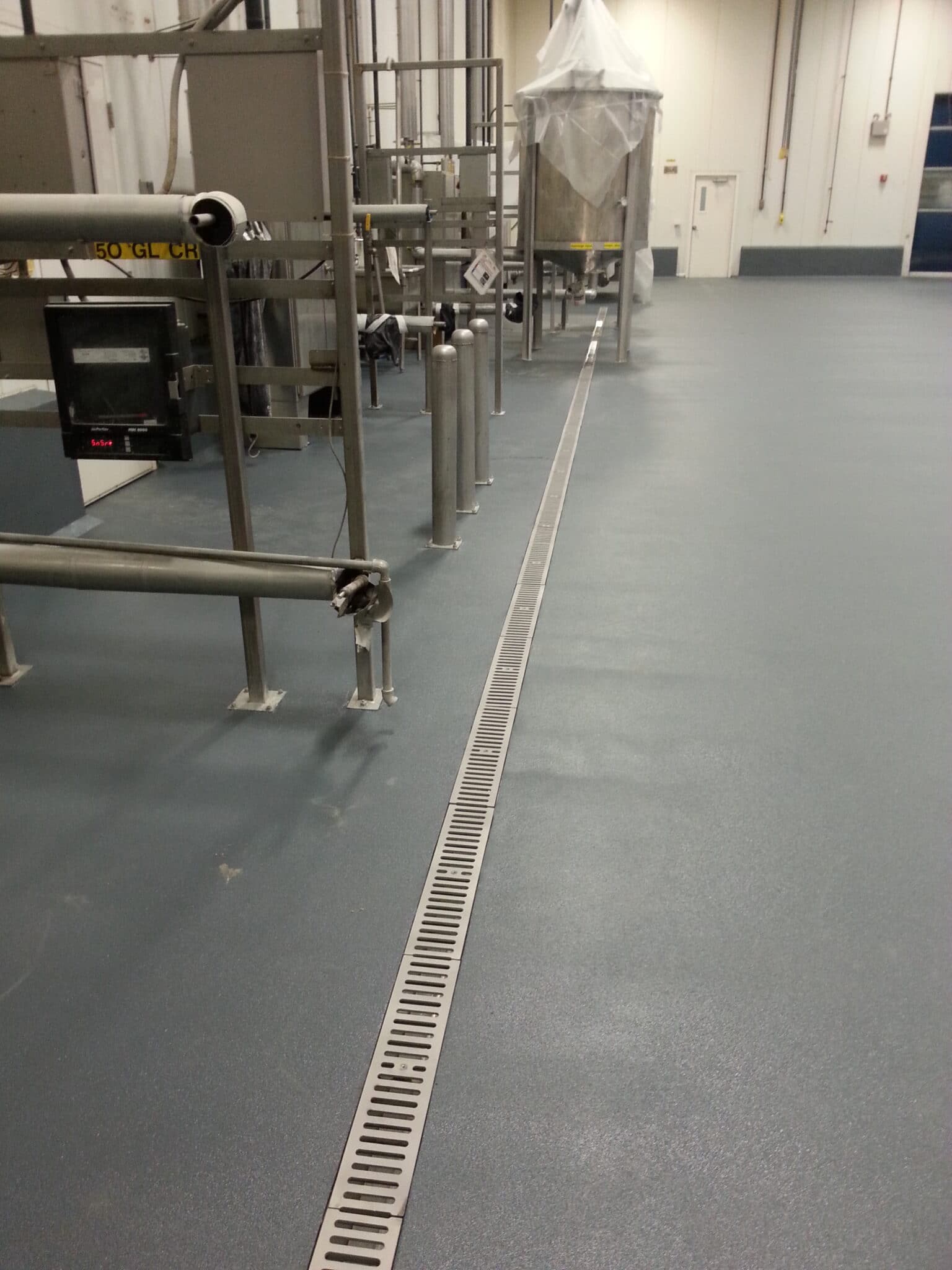

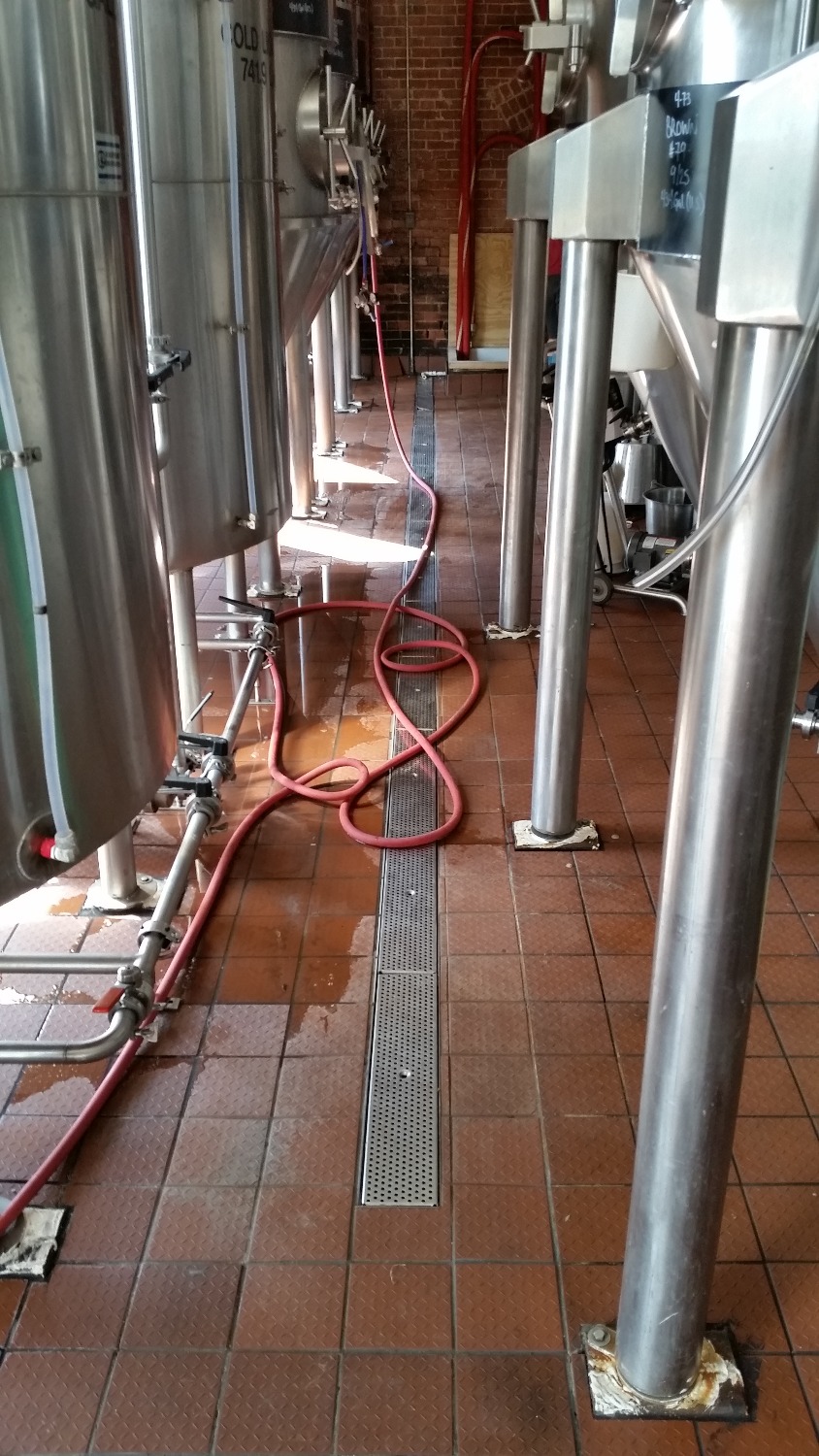

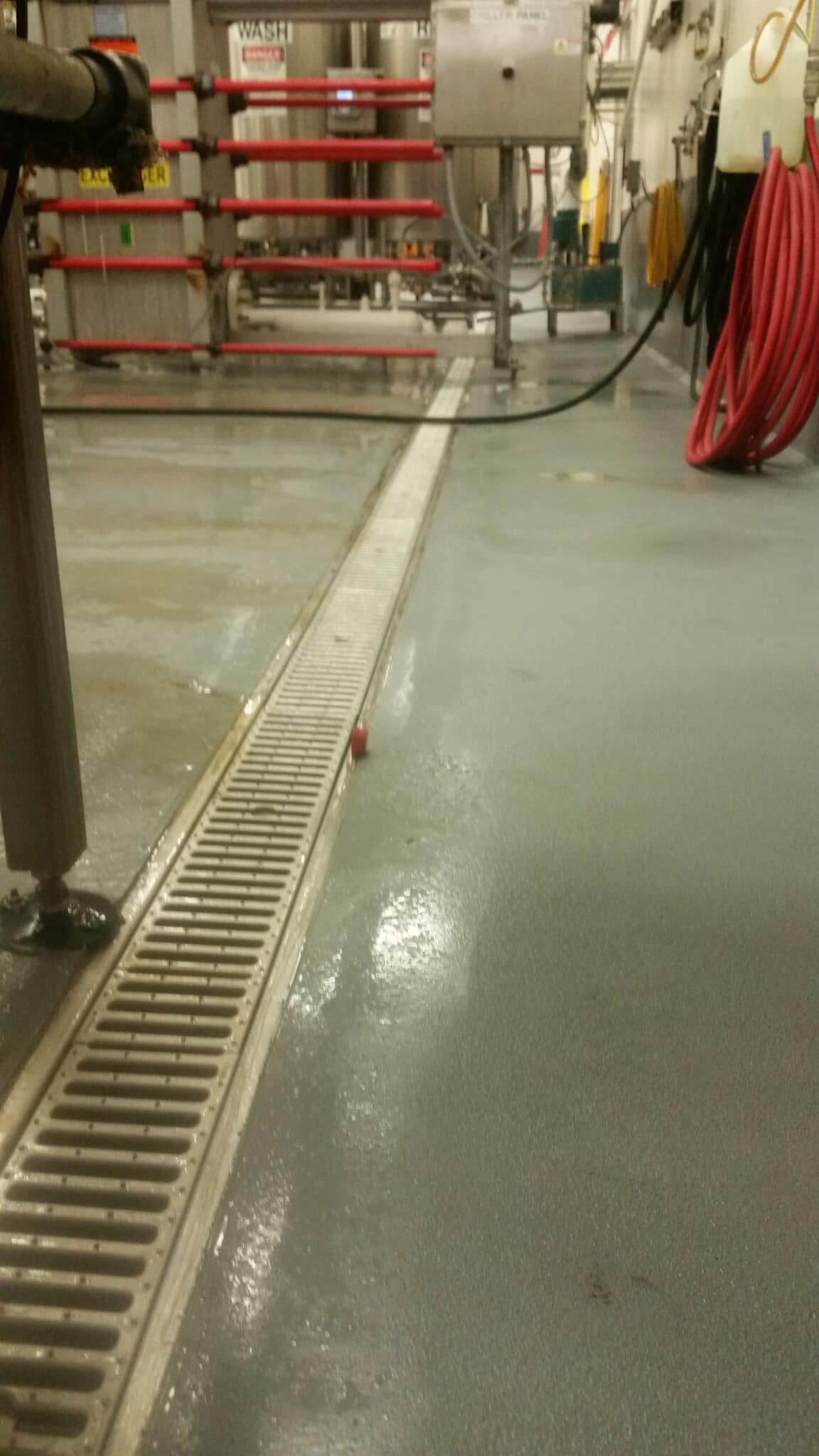

Dura Trench stainless steel trench drains and stainless steel slot drains have been used in projects like poultry production, chicken hatcheries, slaughter houses for beef and pork, commercial kitchens, power plants, bakeries, beverage bottling facilities, breweries, wineries, distilleries, munitions facilities, chemical processing facilities, manufacturing plants, and many more.  When your project requires a quality, easy to install stainless steel trench drain or stainless steel slot drain look to Dura Trench!
