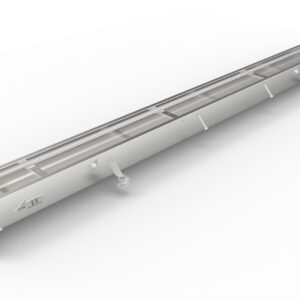

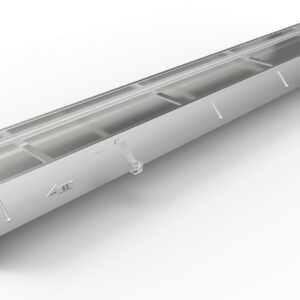

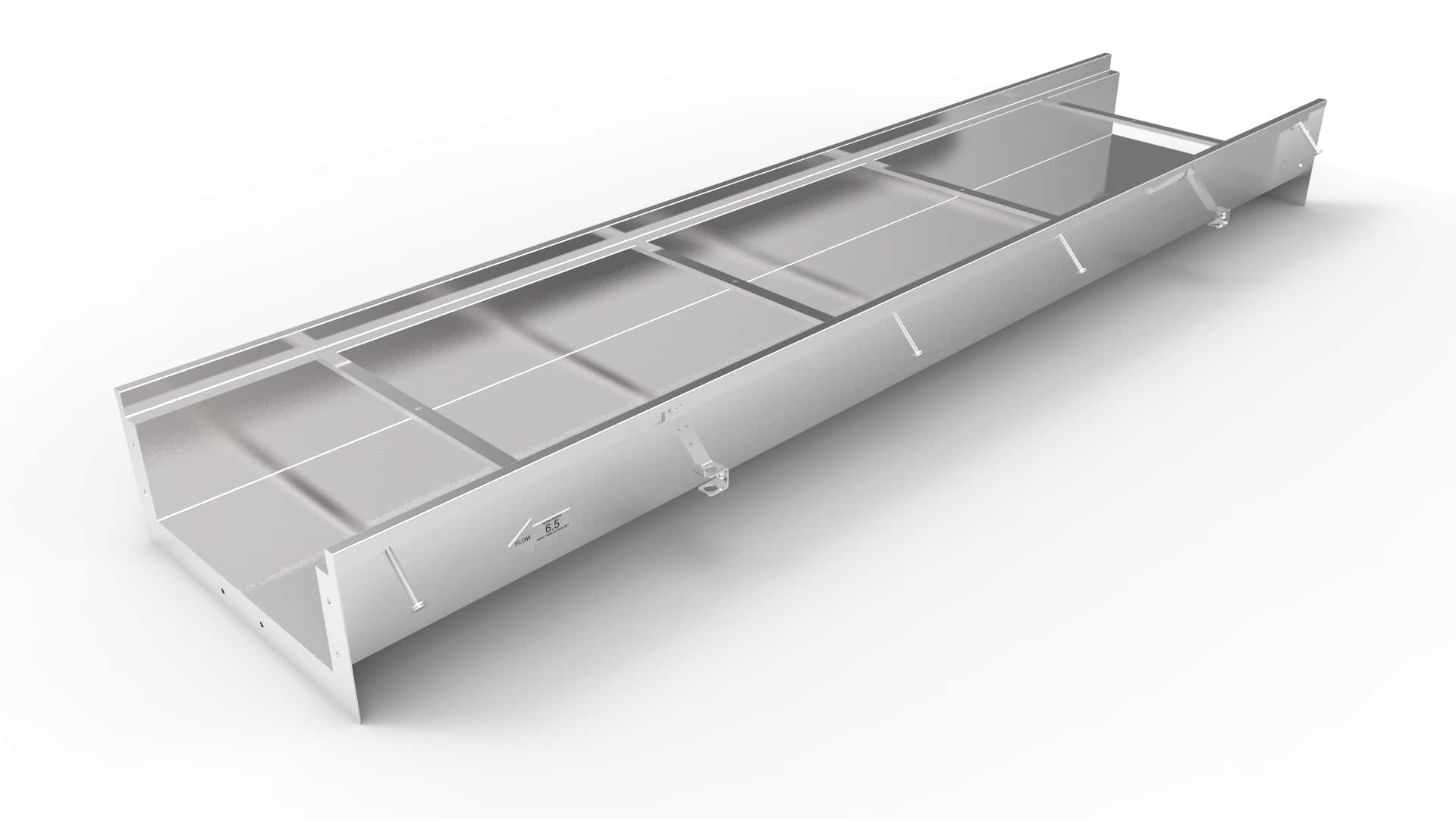

18 inch wide stainless trench drain



18 inch wide stainless trench drain

18″ wide interior trench drains can be sloped from 4″ to 18″ deep typical. Typically used for flows up to 15 cfs (6,725 gpm).  Comes complete with installation brackets, plywood covers, end plates and outlets.  Accepts any of the 20″ wide trench drain grates. (contact us for pricing and availability on deeper depths)

Additional information

Weight 200 lbs
Dimensions 128 × 24 × 24 in
PRODUCT INFO Trench width: 18" I.D. Grate width: 20" wide Section length: 8' long Depth: varies from 4" to 18" Slope: 0.5% typical (any other slope as required) Trench Material:  14ga T304 stainless steel (T316 optional) Frame Material:  Integral formed edge frame   Note:  after placing order a customer service representative will call you to confirm the details of your order and that it is configured in the manner that you choose.
RETURN & REFUND POLICY This product is assembled to order and will be custom built to your specifications.  As a result the trench is non-returnable.  Grates and locking hardware are returnable.  If they are in re-saleable condition they will be accepted and will be assessed a 25% restocking fee.
SHIPPING INFO Shipping of the DuraTrench product is by truck freight only due to the long section lengths.  A forklift is recommended to unload the materials, however, lift gate service is available for an additional charge.
