Concrete Trench Drain Forming Systems

When you want a concrete trench drain, Dura Trench offers an innovative trench drain forming system.  The system is a true labor and time saver when you need a concrete trench drain.  The trench drain forming system has a seam at the bottom of the trench drain form that is released after the concrete placement. The form can then be removed leaving a concrete trench drain.  The smooth outside of the forms leaves a smooth interior finish while allowing the trench drain to have a radius bottom or vee bottom.  These concrete trench forming systems come fully assembled with installation aides and plywood tops.  The plywood is durable and can be used to help brace the system during the pour.  The interior forms break out easily and stack inside one another leaving little volume to place in a dumpster.  While we recommend a prefabricated trench drain for most applications, if your project requires a cast in place concrete trench we have a labor saving solution.

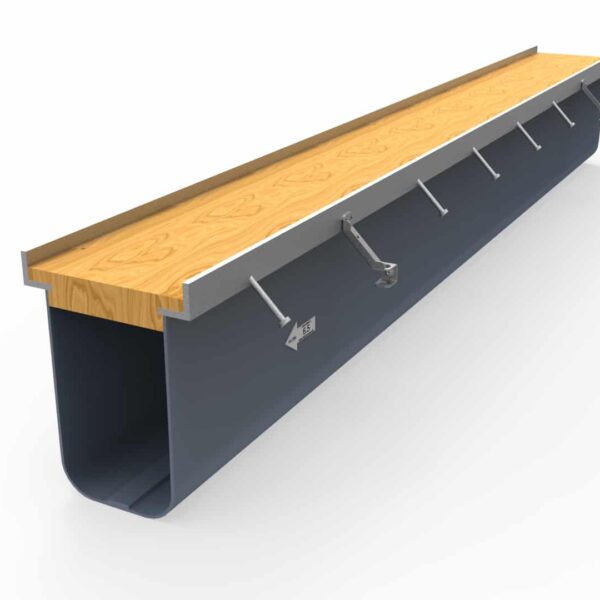

This general purpose concrete trench drain forming system can handle flows in the 4 cfs (1800 gpm) range.  Product comes in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 10" wide trench drain grates to meet any design requirement.

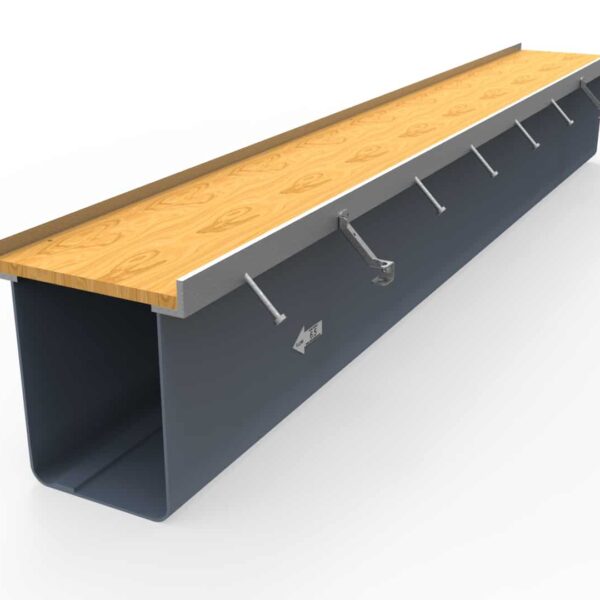

This general purpose concrete trench drain forming system can handle flows in the 6 cfs (2700 gpm) range.  Product comes in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 12" wide trench drain grates to meet any design requirement.

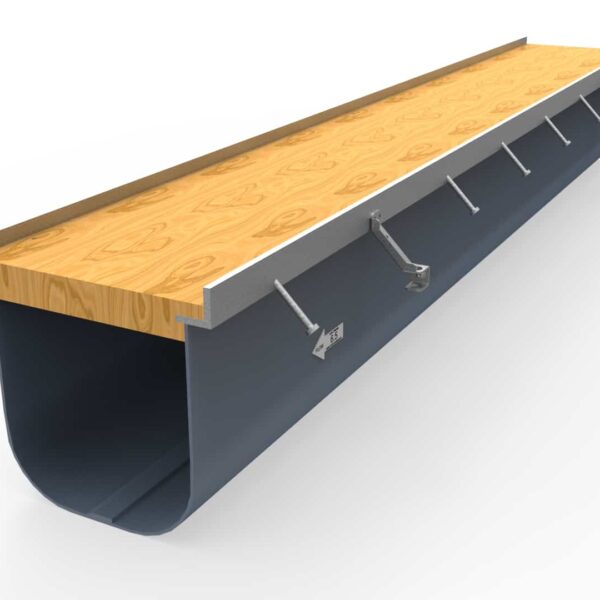

This general purpose concrete trench drain forming system can handle flows in the 8 cfs (3600 gpm) range.  Product comes in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 14" wide trench drain grates to meet any design requirement.

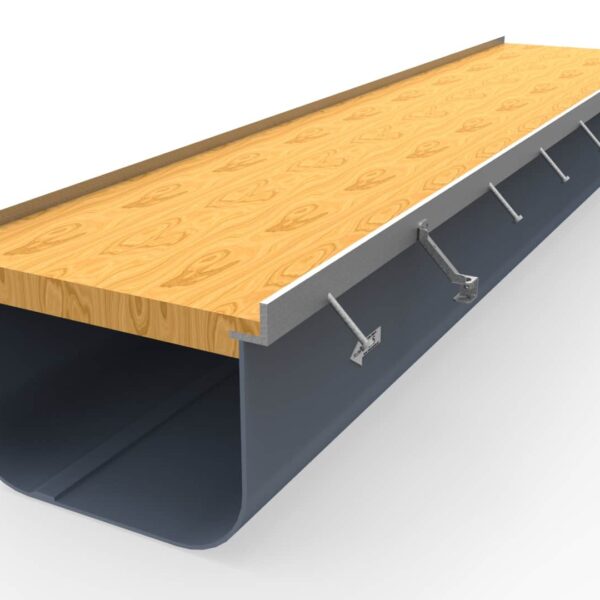

This general purpose concrete trench drain forming system can handle flows in the 15 cfs (6750 gpm) range.  Product comes in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 20" wide trench drain grates to meet any design requirement.

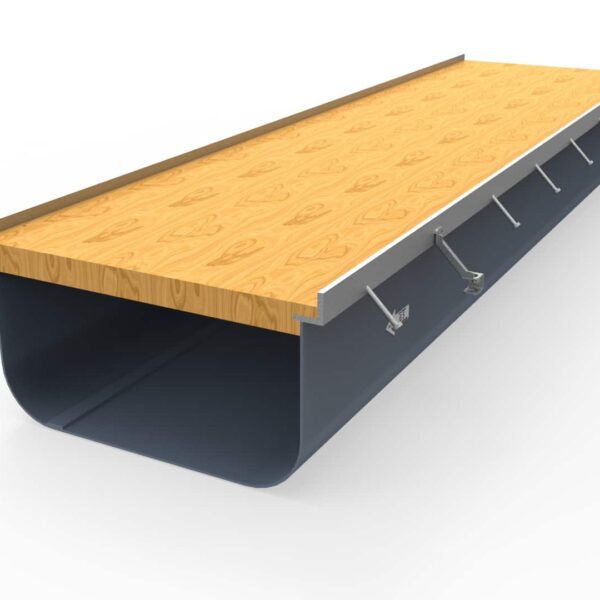

This general purpose concrete trench drain forming system can handle flows in the 23 cfs (10,350 gpm) range.  Product comes in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 26" wide trench drain grates to meet any design requirement.
