Slip Resistance of Trench Drain Grates

Trench drains are not utilized unless the area will be wet.  This means that traffic will be on top of the trench drain while it is wet and the slip resistance of the trench drain grate should be considered.  Slip resistance is of little concern when the grates are small.  When the entire foot can be completely on the grate slip resistance must be considered.

Slip resistance of a trench drain grate should be considered in both interior and exterior applications.  Typically, slip resistance is less of a concern in an exterior storm water application.  This is because fewer people are out walking in a rain event.  However, consider an outdoor swimming pool.  Children will be running and the drain will be wet due to constant splashing of pool water on the pool deck.  Similarly, an industrial process may emit oils, soaps, or other slippery fluids where employees must perform duties.

​Slip resistance on trench drain grates can be achieved in several ways.  The trench grate can have built in traction surfaces or the trench grate can have an applied traction surface.

​Built in trench grate traction can be in several forms.  The first is simply the design and orientation of the slots or openings that let the water into the channel drain.  These openings provide raised and depressed areas which create friction.  The second way that traction is achieved is by having a traction nub.  These are raised dimples that give additional friction on the surface of the grate.  Trench grates or covers can also have recessed grooves to provide traction.  Traction on the surface can also be provided by adding serrations to a bar grate.  Finally, a cast iron grate can have inherent slip resistance due to the size of the grain of sand used to cast the pattern.

​Traction surfaces can also be applied to a trench drain grate.  These also come in many different forms.  For example, for a fiberglass bar grate grit is impregnated into the surface of the grate.  For painted grates, grit can be applied into the coating to give a surface roughness to the trench grate.  For metal grates there are surface deposition techniques that can apply small beads of molten metal to the surface to add slip resistance.

The trench drain designer must consider slip resistance as part of their safety concerns when selecting a trench grate.  There are several standards that can be referenced with regard to trench grate slip resistance.  The IBC classification C, ASTM C-1028, and ANSI/APSP-16 all give guidance on slip resistance of trench grating.

man carwheeling into pool

Don’t let a slippery trench drain grate cause injury on a wet walking surface!

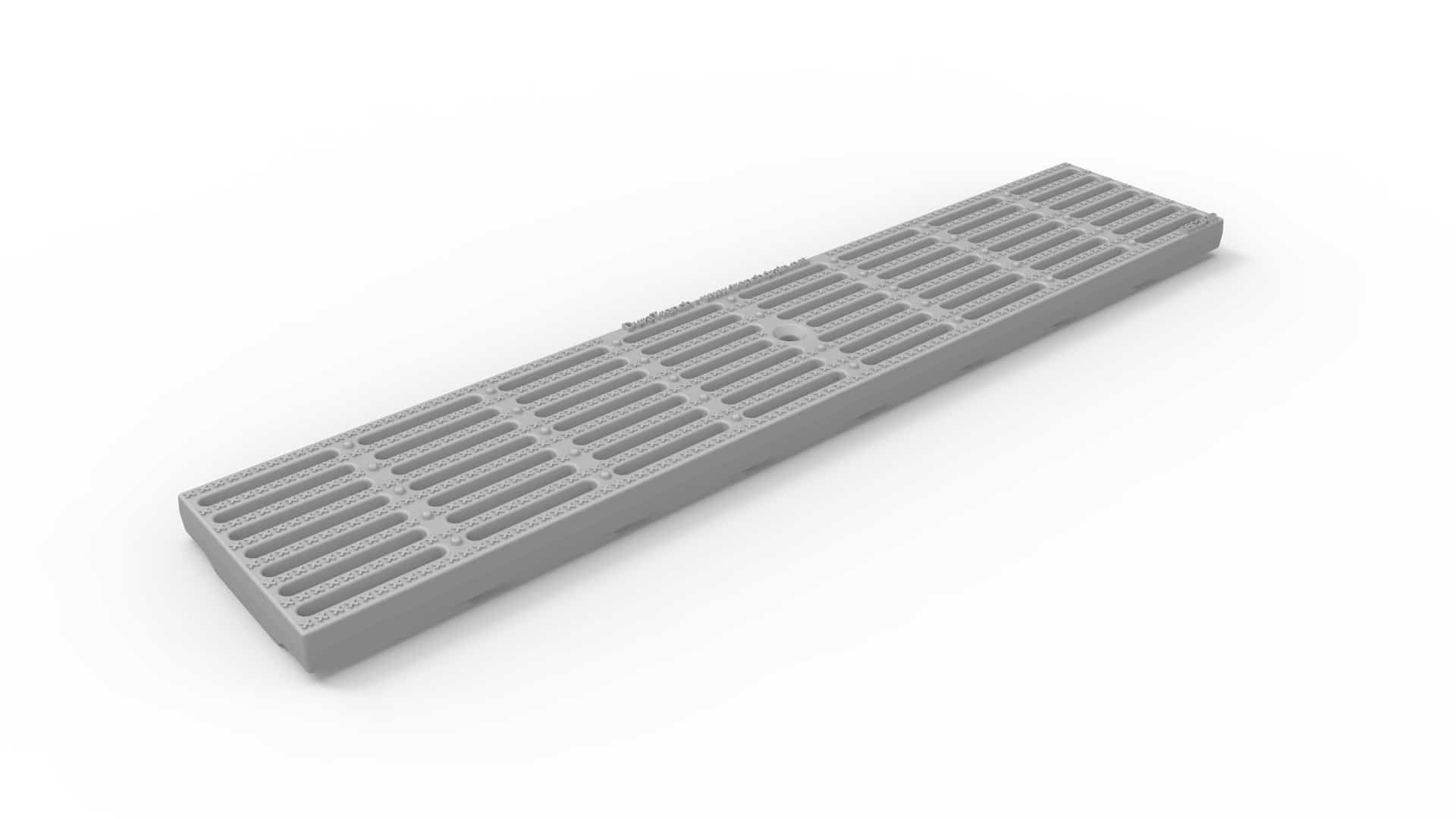

The textured surface on Dura Trench plastic trench drain grates is specifically designed for maximum slip resistance.


Traction nubs on Dura Trench iron trench grates provide needed slip resistance.

duratrench fiberglass drain grate

The impregnated grit on top of Dura Trench fiberglass channel drain grates provides excellent slip resistance.
