Catch Basins, Drain Basins, & Sumps

Dura Trench pre-manufactured catch basins, drain basins, and sumps, integrate with our linear drainage systems or can be used alone as a point inlet. With a vast selection of body compositions, frame materials, load-class, and outlet stub materials and placement options, you can build the best basin for your needs!
Standard and Custom Size Configurations Available
To purchase, contact your local sales representative
Catch Basin Body Composition Options
  • Glass Fiber Reinforced Polymer Concrete (Most Popular!)
  • Vinyl Ester Glass Fiber Reinforced Polymer Concrete
  • Fire Retardant Glass Fiber Reinforced Polymer Concrete
  • Stainless Steel
  • Galvanized Metal
  • Double Containment Glass Fiber Reinforced Polymer Concrete
  • Double Containment Vinyl Ester Glass Fiber Reinforced Polymer Concrete
Load-Bearing Capacity Options

Dura Trench classifies the load-bearing capacity of basins on the DIN 19580 / EN1433 scale, specifically designed for linear drainage systems. Click here to learn more about load classifications.

  • DIN Class A  – Residential and light pedestrian traffic, bicycles with pneumatic tires
  • DIN Class B – Sidewalks and small private parking lots
  • DIN Class C – Parking lots and general commercial use
  • DIN Class D – Traffic sections of roads and highways
  • DIN Class E – Industrial areas, gas stations, and commercial forklifts
  • DIN Class F – Aircraft runways, seaport docks, heavy fork trucks, and heavy wheel loads

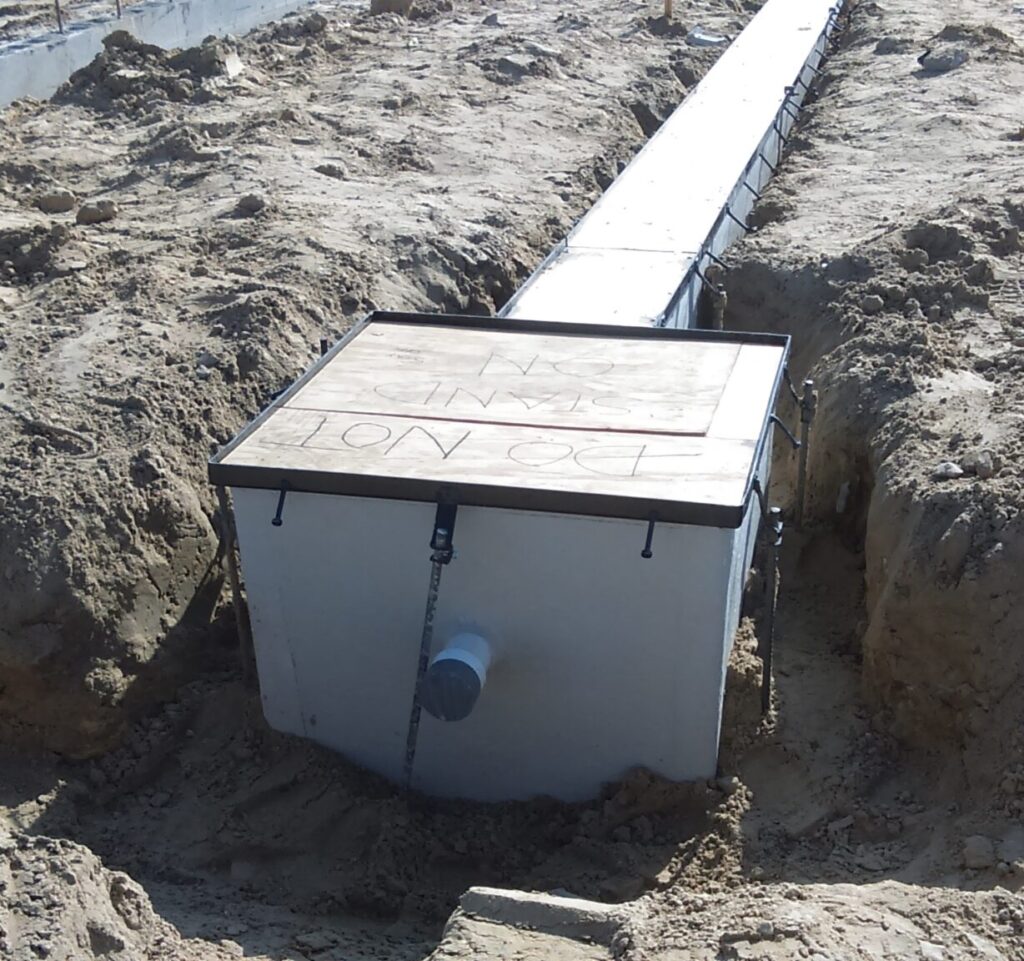

Audi Ft Myers8
Frame Options
  • Extruded Rigid Thermoplastic
  • Galvanized Steel
  • Stainless Steel
  • Structural Steel (most commonly used)
  • Aluminum
  • Fiberglass
  • Paver-Style
Outlet Options

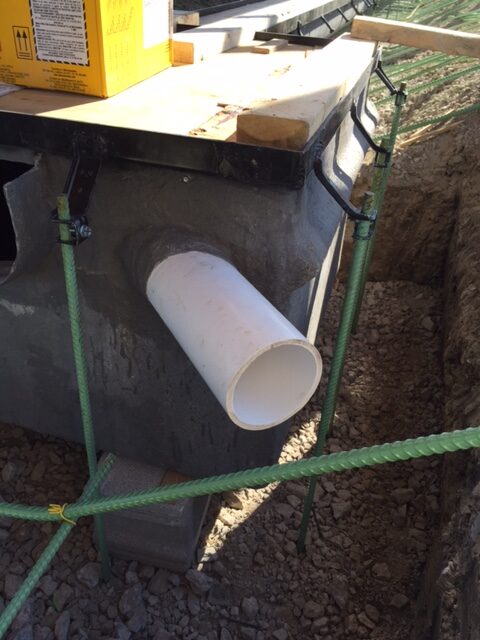

  • Placement – tell us the measurement and location the outlet stub should be placed for quick and easy connection in the field!
  • Material – Pick the material for the outlet stub. Available in PVC (sch 40,) SDR 35, HDPE, Cast Iron, Stainless Steel, CPVC, CMP, & Steel

Catch Basins & Sumps Information

8" wide x 24" long Prefabricated Catch Basin

4" x 24" i.d. Prefabricated Catch Basin

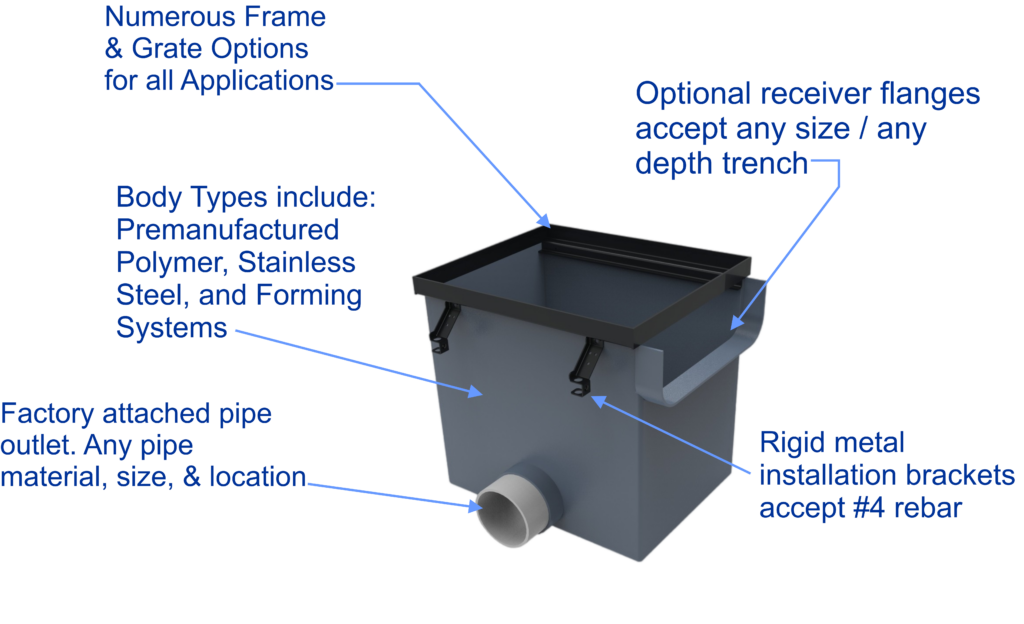

This general purpose catch basin can be manufactured to any depth. The basin is offered with a wide selection of frames and grates to meet any design requirement. Trench receiver flanges can be molded in to accept trench drains or slotted pipes. Outlet pipes can also be factory cast into the basin with any diameter or type of pipe.

6" wide x 24" long Prefabricated Catch Basin

6" x 24" i.d. Prefabricated Catch Basin

This general purpose catch basin can be manufactured to any depth. The basin is offered with a wide selection of frames and grates to meet any design requirement. Trench receiver flanges can be molded in to accept trench drains or slotted pipes. Outlet pipes can also be factory cast into the basin with any diameter or type of pipe.

8" wide x 24" long Prefabricated Catch Basin

8" x 24" i.d. Prefabricated Catch Basin

This general purpose catch basin can be manufactured to any depth. The basin is offered with a wide selection of frames and grates to meet any design requirement. Trench receiver flanges can be molded in to accept trench drains or slotted pipes. Outlet pipes can also be factory cast into the basin with any diameter or type of pipe.

10" wide x 24" long Prefabricated Catch Basin

10" x 24" i.d. Prefabricated Catch Basin

This general purpose catch basin can be manufactured to any depth. The basin is offered with a wide selection of frames and grates to meet any design requirement. Trench receiver flanges can be molded in to accept trench drains or slotted pipes. Outlet pipes can also be factory cast into the basin with any diameter or type of pipe.

12" wide x 24" long Prefabricated Catch Basin

12" x 24" i.d. Prefabricated Catch Basin

This general purpose catch basin can be manufactured to any depth. The basin is offered with a wide selection of frames and grates to meet any design requirement. Trench receiver flanges can be molded in to accept trench drains or slotted pipes. Outlet pipes can also be factory cast into the basin with any diameter or type of pipe.

18" wide x 24" long Prefabricated Catch Basin

18" x 24" i.d. Prefabricated Catch Basin

This general purpose catch basin can be manufactured to any depth. The basin is offered with a wide selection of frames and grates to meet any design requirement. Trench receiver flanges can be molded in to accept trench drains or slotted pipes. Outlet pipes can also be factory cast into the basin with any diameter or type of pipe.

24" wide Prefabricated Catch Basin

24" x 24" i.d. Prefabricated Catch Basin

This general purpose catch basin can be manufactured to any depth. The basin is offered with a wide selection of frames and grates to meet any design requirement. Trench receiver flanges can be molded in to accept trench drains or slotted pipes. Outlet pipes can also be factory cast into the basin with any diameter or type of pipe.

36" wide Prefabricated Catch Basin

36" x 36" i.d. Prefabricated Catch Basin

This general purpose catch basin can be manufactured to any depth. The basin is offered with a wide selection of frames and grates to meet any design requirement. Trench receiver flanges can be molded in to accept trench drains or slotted pipes. Outlet pipes can also be factory cast into the basin with any diameter or type of pipe.

48" wide Pre-Manufactured Catch Basin

48" x 48" i.d. Prefabricated Catch Basin

This general purpose catch basin can be manufactured to any depth. The basin is offered with a wide selection of frames and grates to meet any design requirement. Trench receiver flanges can be molded in to accept trench drains or slotted pipes. Outlet pipes can also be factory cast into the basin with any diameter or type of pipe.
