Prefabricated Trench Drains

Dura Trench prefabricated trench drain systems are our most popular product line.  The pre-sloped commercial trench drain line is offered in 2″4″6″8″10″12″18″24″36″, and 48″ widths.  This precast trench drain system comes standard with 0.5% slope built in but can be manufactured with any slope specified.  If you need a shallow trench drain it can be as shallow as 2″.  There are no maximum depth restrictions on this product other than construct-ability.  Dura trench drain systems offer a stable thermal set polymer body that is not temperature sensitive like most plastic trench drains.  The linear drain body is constructed from UV stable polymers for durability.  This makes Dura Trench drains suitable for some of the most harsh environments.  The long trench drain sections and light weight trench drain body make installation easy.  Plywood in the top of the trench drain channels is standard to keep the trench drain clean during concrete placement.  Built in metal installation aides are rigid and don’t break off.  The product can be outfitted with a large number of frame options including painted steel, galvanized steel, iron, stainless steel, aluminum, plastic, fiberglass, brass, and bronze.  Choose a premium trench drain system that can meet your project requirements.

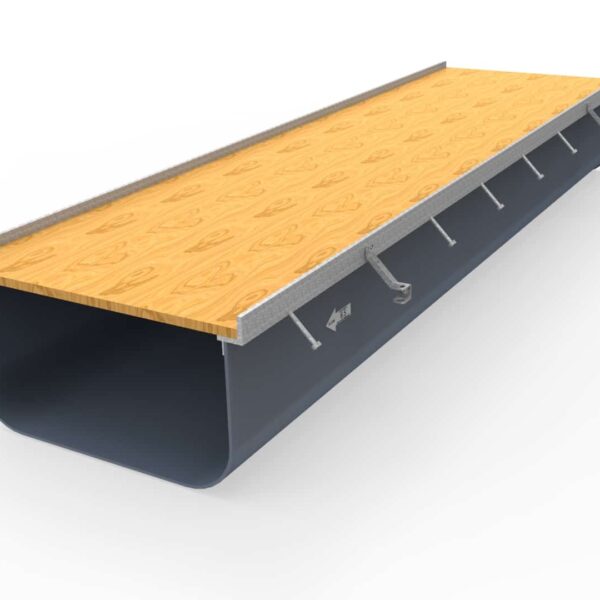

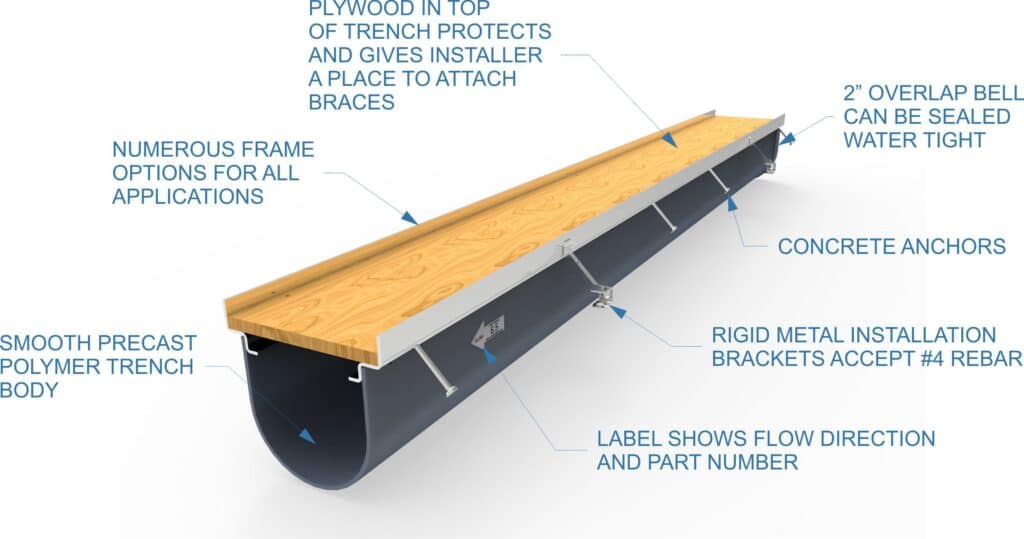

DTPF8 | 8 inch wide Trench Drain Features

Buy Prefabricated Trench Drains

Prefabricated Trench Drains Information

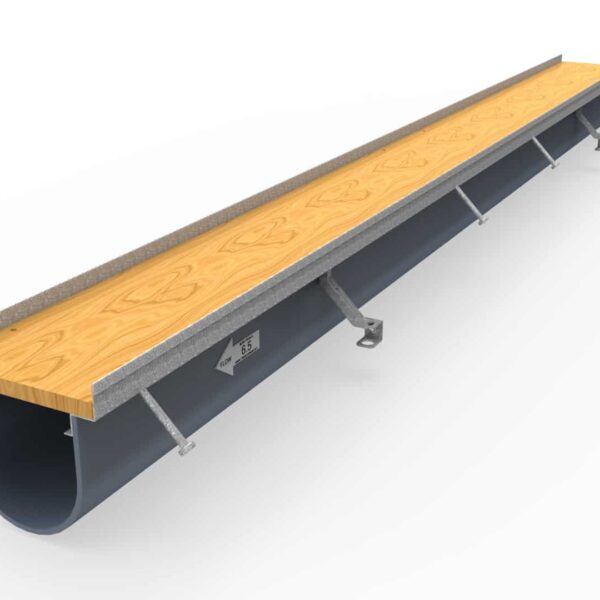

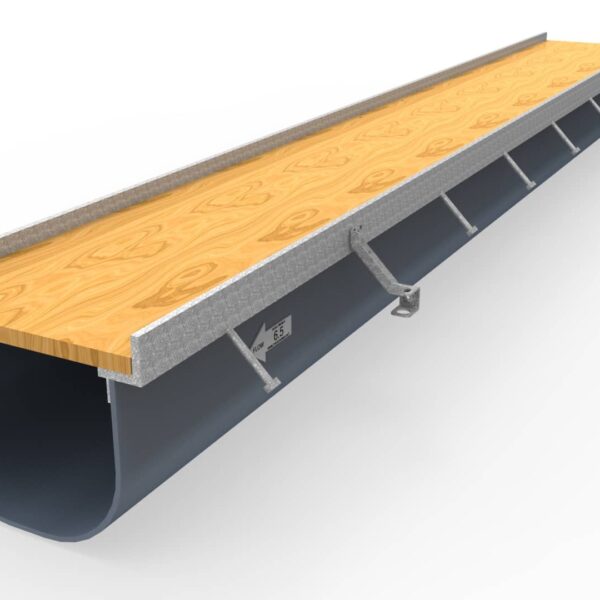

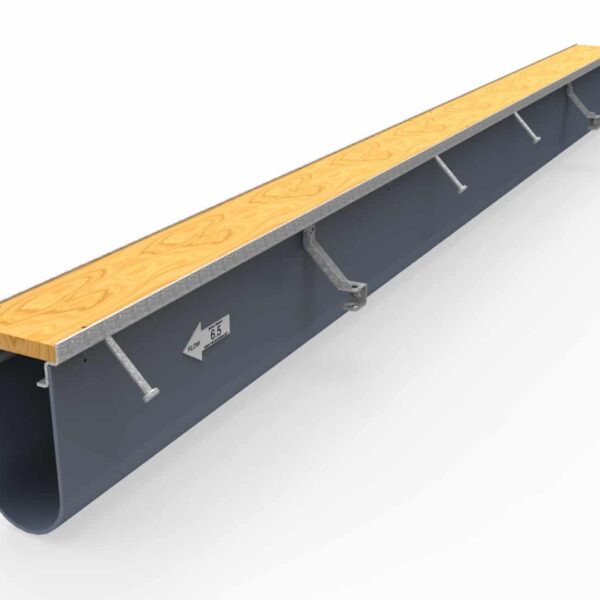

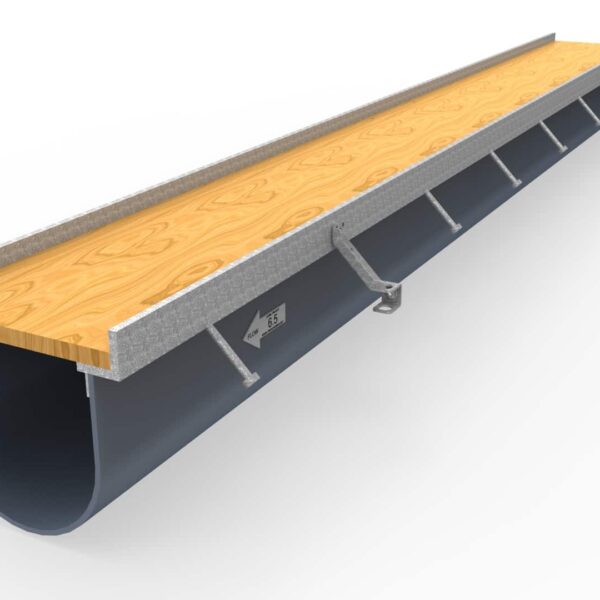

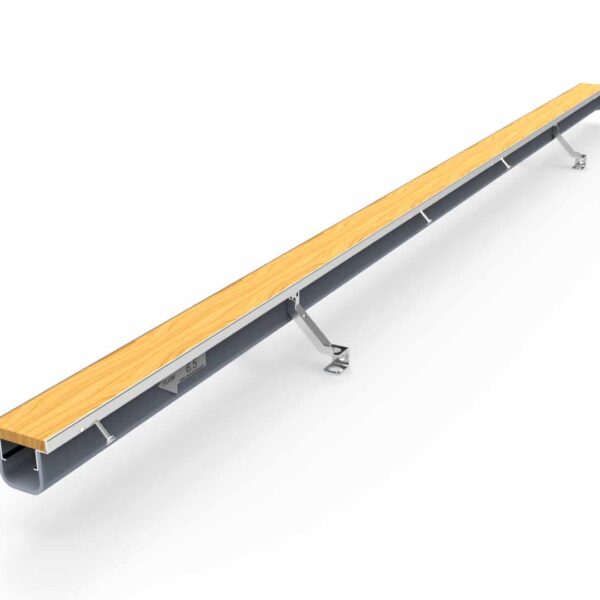

2″ wide precast trench drain system

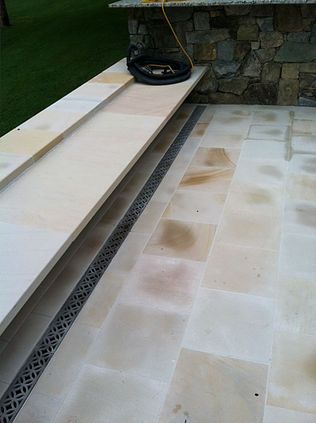

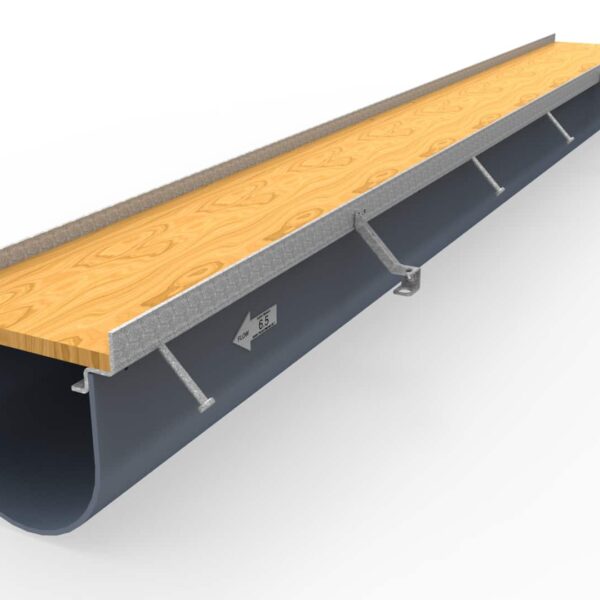

2" wide Prefabricated Trench Drain

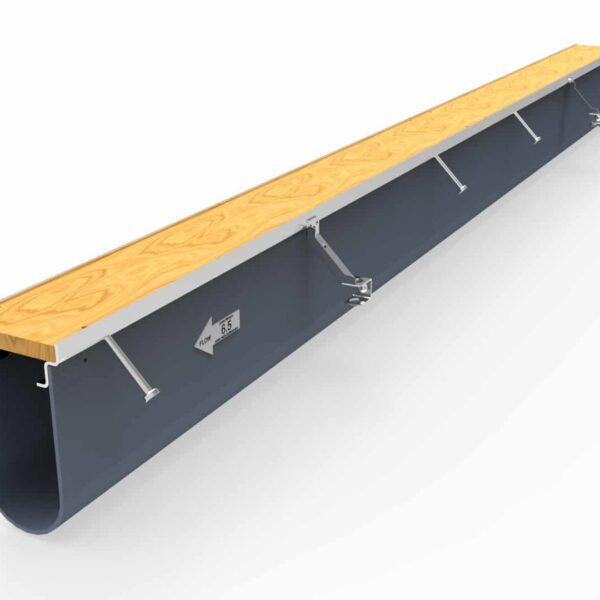

This general purpose trench drain system can handle flows in the 0.3 cfs (150 gpm) range.  Our precast trench drains sections come in pre-sloped 8′ lengths with heavy plywood cover  and installation aides standard.  This linear drain system can easily be made at depths as shallow as 2″ but can slope up to 12″ or more.  Offered with a wide selection of frames and 3″ wide trench drain grates to meet any design requirement.  This narrow trench drain system is useful for when a low profile trench drain is desired but access for cleaning the trench is still required.  This size trench drain system is typically used in patiospool decks, residential projects, and other commercial projects where a low profile is desired.  This linear drain system is also finding use in shallow trench drain applications such as elevated decks, balconies, rooftop pools, and patios.

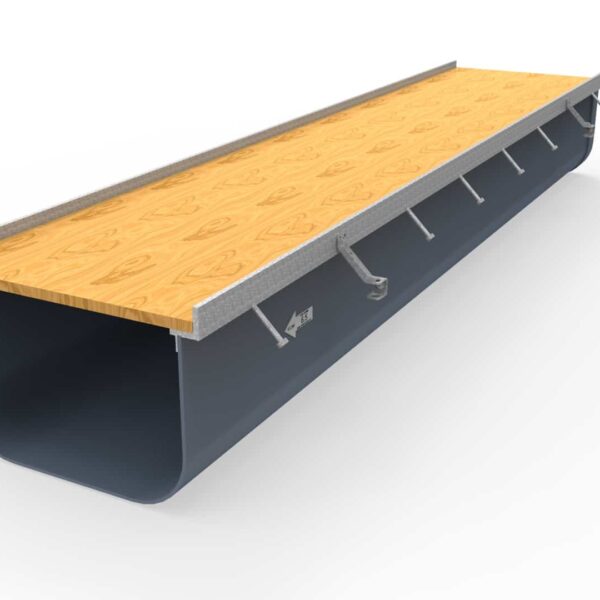

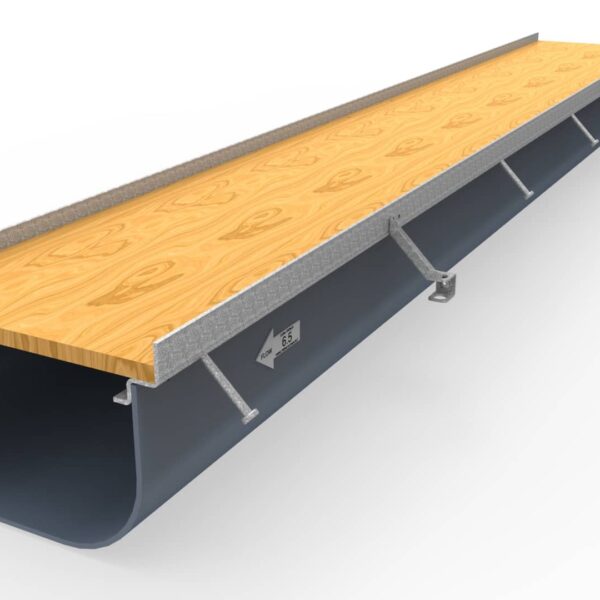

8″ wide precast trench drain system

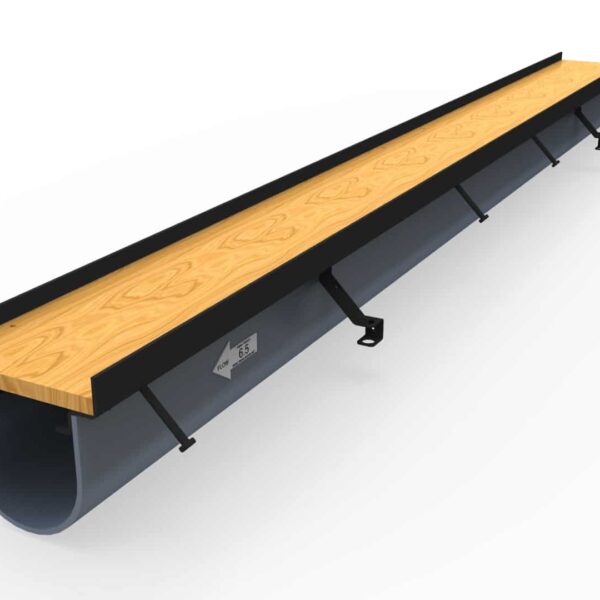

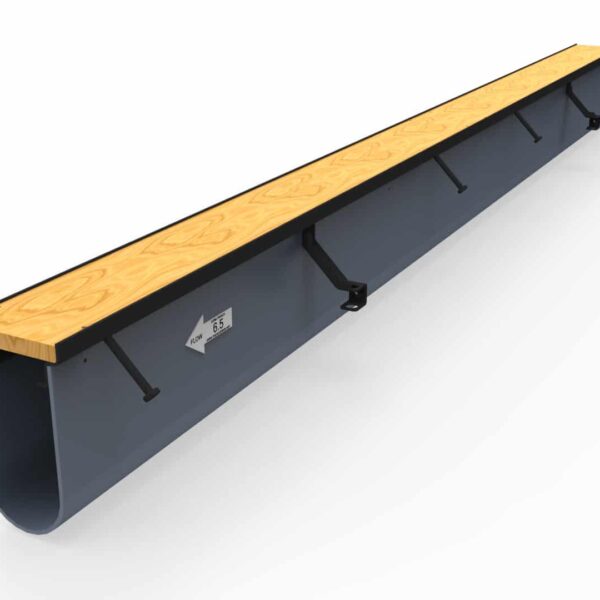

4" wide Prefabricated Trench Drain

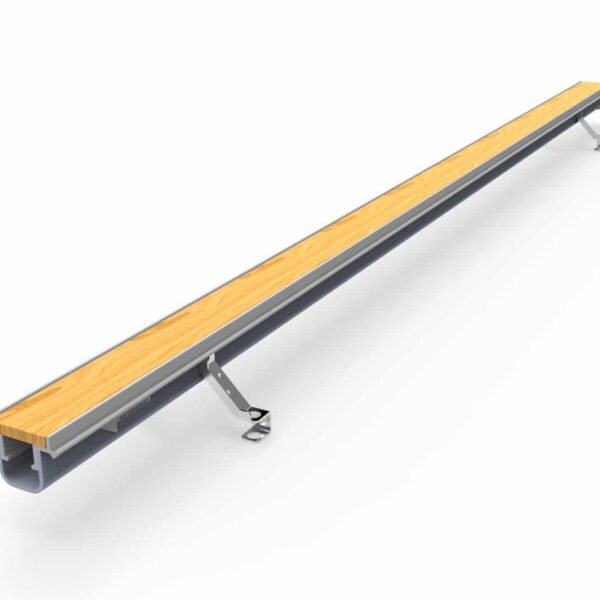

This general purpose trench drain system can handle flows in the 2 cfs (950 gpm) range.  Our precast trench drain sections come in pre-sloped 8′ lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 5″ wide trench drain grates to meet any design requirement.  This size prefabricated trench drain is the most commonly used commercial trench drain system but is also highly useful in residential applications.  This trench drain can be as shallow as 2.5″ deep for shallow trench drain applications.  Because this size trench drain is very common it has the widest selection of grates.  Four inch wide trench drains are great for landscape areas, driveways, around fountains, commercial parking lots, kennelsfood service areasindustrial use, sport fields, airports, and most any other commercial trench drain applications.

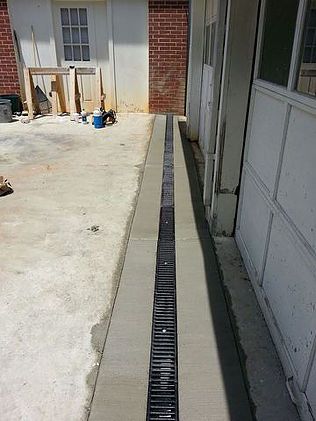

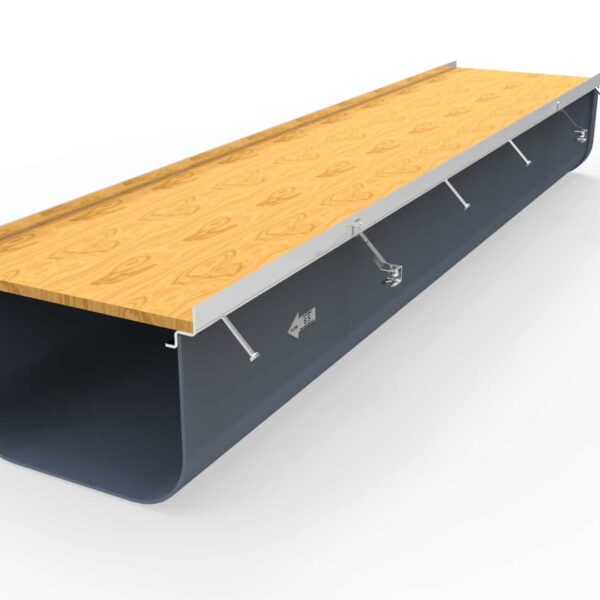

8″ wide precast trench drain system

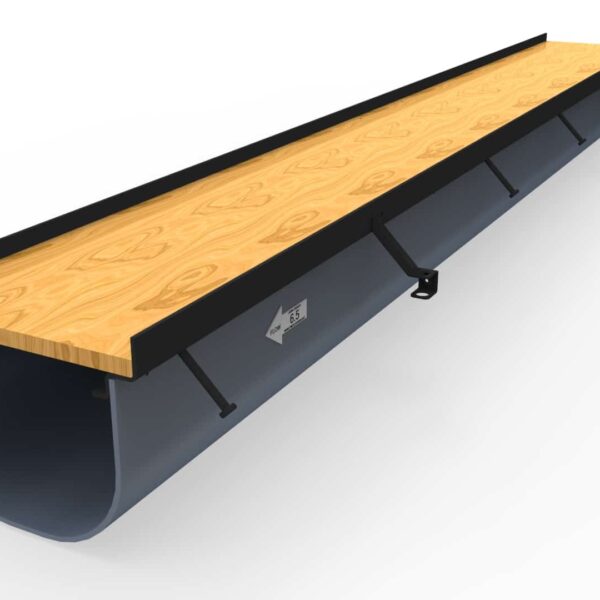

6" wide Prefabricated Trench Drain

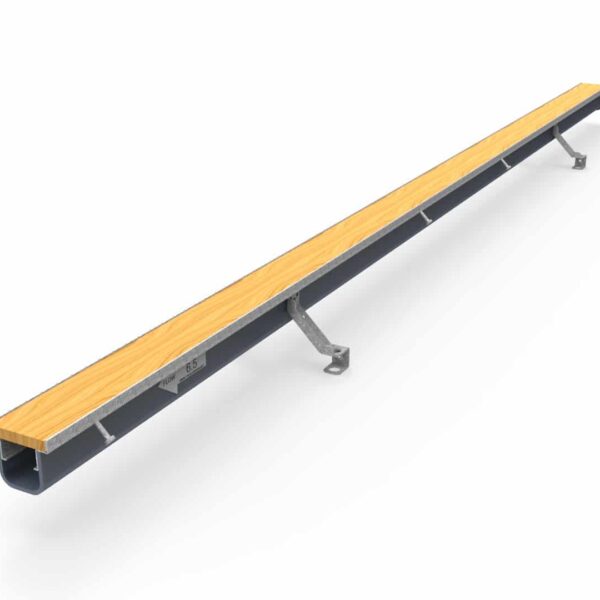

This general purpose trench drain system can handle flows in the 4 cfs (1800 gpm) range.  Our trench drain sections come in pre-sloped 8′ lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 8″ wide trench drain grates to meet any design requirement.  This size trench drain is typically used when a 4″ trench is truly under sized.  This is generally a commercial trench drain system, but in some cases can be used in a residential driveway.

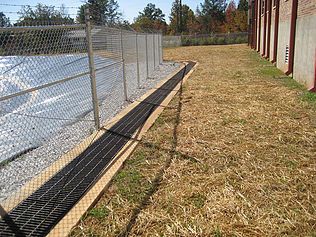

Dura Trench chemical resistant trench drains

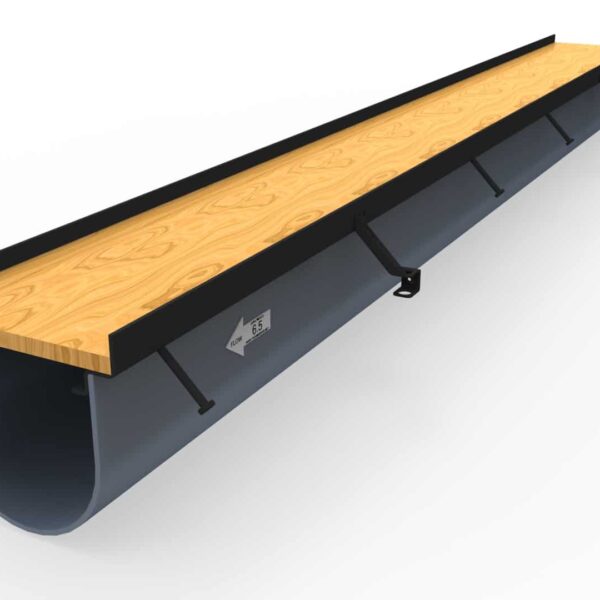

8" wide Prefabricated Trench Drain

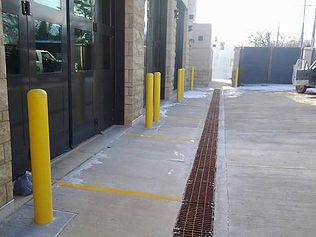

This general purpose trench drain system can handle flows in the 6 cfs (2750 gpm) range.  This trench drain system comes in pre-sloped 8′ lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 10″ wide trench drain grates to meet any design requirement.  The 8″ wide trench drain is a commercial trench drain product.  This heavy duty trench drain is versatile enough for industrial applications, fire stations, parking lots, highwaysairports, etc.

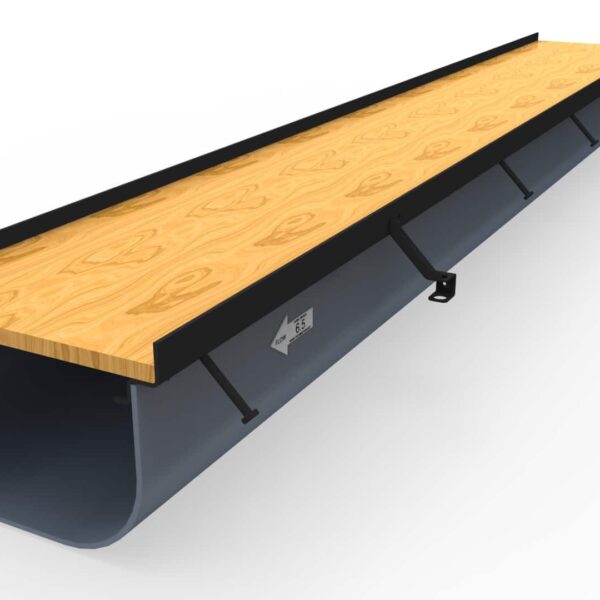

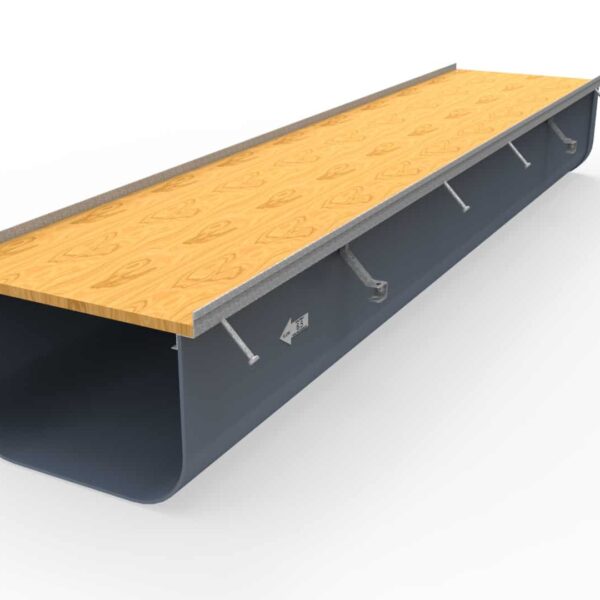

10" wide Prefabricated Trench Drain system

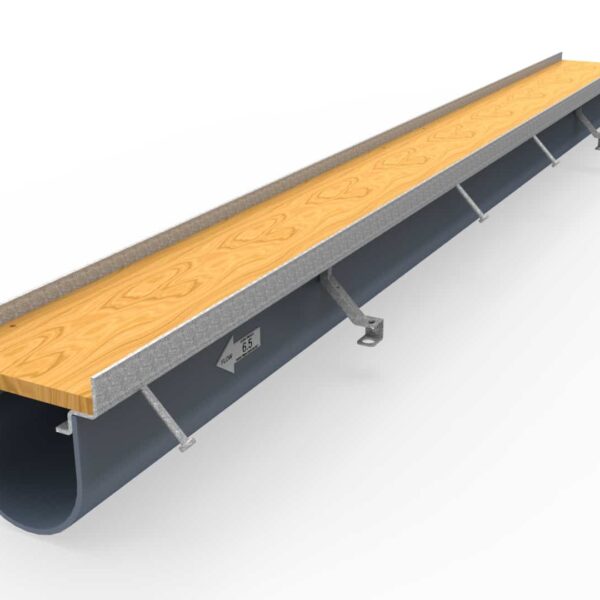

10" wide Prefabricated Trench Drain

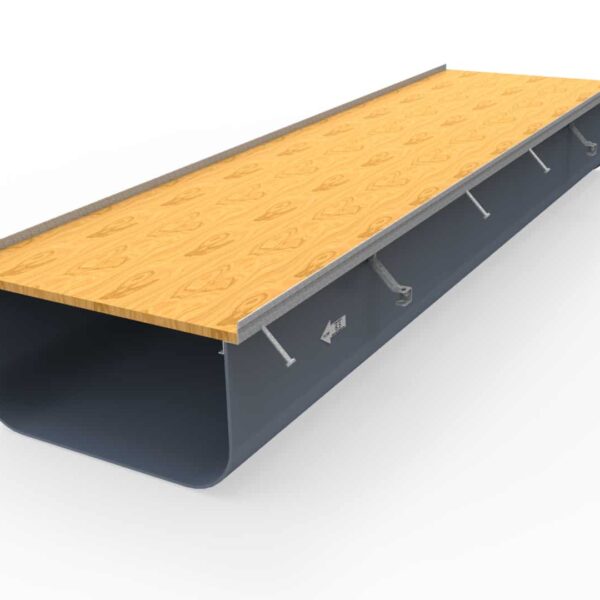

This general purpose commercial trench drain system can handle flows in the 9 cfs (4000 gpm) range.  This trench drain system comes in pre-sloped 8′ lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 12″ wide trench drain grates to meet any design requirement.  This is one of the most widely used commercial trench drain systems.  It is large enough to be cleaned with a standard shovel giving it wide industrial and commercial use.  The 10″ trench drain has many grating options making it suitable for sea portsairportshighway projectsloading docksgas stations, parking lots, industrial areasfood processing, etc.

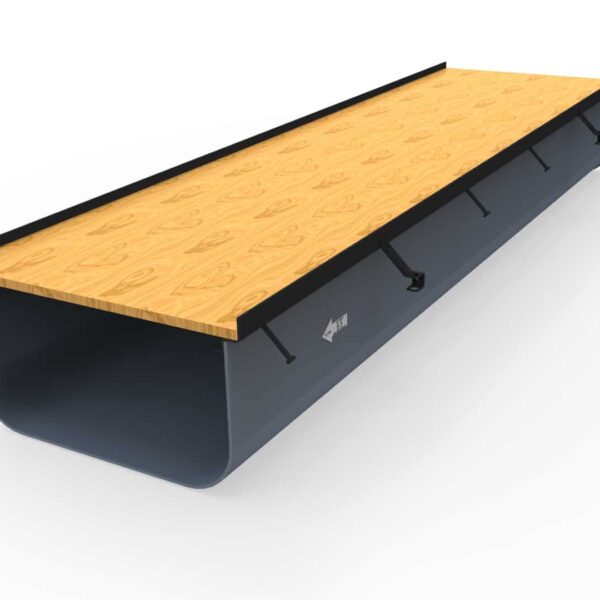

12" wide Prefabricated Trench Drain system

12" wide Prefabricated Trench Drain

This general purpose commercial and industrial trench drain system can handle flows in the 12 cfs (5250 gpm) range.  This trench drain system comes in pre-sloped 8′ lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 14″ wide trench drain grates to meet any design requirement.  This is a common commercial and industrial trench drain system size.  It was a typical size when trench drains were hand formed and continues to be popular today. It is a highly useful industrial size because it can be easily cleaned even when the trench is very deep.  Also a very common commercial trench drain size and can be used in all the same airportsea portfood processing, heavy civil, roadway, and other high flow trench drain system applications.

18" wide Prefabricated Trench Drain system

18" wide Prefabricated Trench Drain

This general purpose commercial trench drain system can handle flows in the 22 cfs (10,000 gpm) range.  This trench drain system comes in pre-sloped 8′ lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 20″ wide trench drain grates to meet any design requirement.  This is the start of the larger high flow trench drain systems.  This size trench drain is sometimes used in commercial or industrial projects, but is most commonly seen in demanding civil trench drain applications.  This can be used in steep cross slopes where all flow must be captured in the trench drain.  Also useful in large paved areas where the flows exceed that of a smaller size trench drain.

24" wide precast Trench Drain System

24" wide Prefabricated Trench Drain

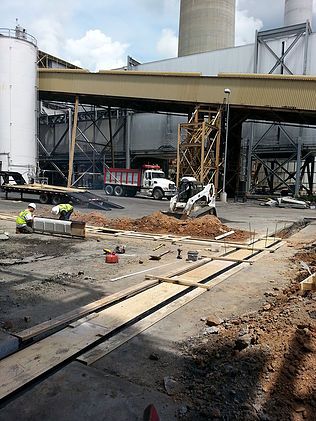

This general purpose commercial trench drain system can handle flows in the 35 cfs (15,500 gpm) range.  This trench drain system comes in pre-sloped 8′ lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 26″ wide trench drain grates to meet any design requirement.  This size trench drain system is useful in industrial and civil applications where high flows or large amounts of sediment are expected.  These trenches have use in power plants, manufacturing, water treatment plants, heavy civil, sea ports, etc.

36" wide Prefabricated Trench Drain system

36" wide Prefabricated Trench Drain

This general purpose commercial trench drain system can handle flows in the 60 cfs (27,000 gpm) range.  This trench drain system comes in pre-sloped 8′ lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 38″ wide trench drain grates to meet any design requirement.  This size trench drain is less commonly used but is necessary in some civil and industrial applications.  This size trench drain can handle high debris loading and very high flow volumes.

48" wide Prefabricated Trench Drain system

48" wide Prefabricated Trench Drain

This general purpose commercial trench drain system can handle flows in the 90 cfs (40,000 gpm) range.  This trench drain system comes in pre-sloped 8′ lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 50″ wide trench drain grates to meet any design requirement.  This is the largest standard commercial and industrial trench drain that Dura Trench manufactures.  This trench drain is often used when multiple trench drains converge into one header trench.  This trench drain is primarily seen in heavy industrial applications and occasional civil applications.

Dura Trench products are designed for heavy duty channel drain applications.  We are the premier manufacturer of commercial trench drain systems.  Our heavy duty trench drains were engineered to outperform all other commercial trench drains.  To be a true commercial trench drain you must have a wide variety of heavy duty trench drain grates for the designers to choose from.  Your commercial trench drain system must have a full line of heavy duty trench drain frames for any application. Your commercial trench drains must have a wide variety of heavy duty channel drain bodies.  The channel drain bodies must be offered for both shallow trench drains and deep depth trench drains.  Finally, a true commercial trench drain system will have a wide selection of outlet pipe materials and sizing options to fit any need.  Eric’sons Dura Trench has manufactured a heavy duty, commercial trench drain line of products that fit this mold.

Our heavy duty trench drains come in a wide variety of widths:  2″ commercial trench drains4″ commercial trench drains6″ commercial trench drains8″ commercial trench drains10″ commercial trench drains12″ commercial trench drains18″ commercial trench drains24″ commercial trench drains36″ commercial trench drains, and 48″ commercial trench drains.  Our heavy duty channel drains also come in shallow trench depths.  We can manufacture shallow trench drains down to 2″ depths.  Many other commercial trench drain systems only offer shallow trench drains with no slope and often only in a 4″ wide commercial trench drain.  Dura Trench can manufacture any of our trench drain widths as a shallow trench drain system.  We can manufacture a rectangular bottom on any of our trench drains allowing all of our systems to be shallow trench drains.  We have manufactured shallow trench drains as wide as 48″ wide at depths as little as 2 inches.  We can also provide slope on any of our shallow trench drains.  Dura Trench shallow trench drain systems can have any slope.  The Dura Trench drain system can work above a waterproofing membrane or can have a clamping collar to accept the waterproofing membrane.  For more on shallow trench drains and membrane trench drain systems click here.  The designer only needs to call out the depth at the deep end and shallow end of the trench drain system.  Conversely, we can also manufacture any of our heavy duty channel drains in very deep depths.  We have made heavy duty trench drain systems for airports and highways that have exceeded 8 feet in depth.

The Dura Trench line of commercial trench drains offers a wide variety of trench drain grating.  We have everything from pedestrian rated grating to heavy duty channel drain grating.  Pedestrian rated trench drains often have more decorative grating made of materials such as plastics, stainless steel, brass, bronze, stone, etc.  Heavy duty trench drains typically use ductile iron, cast iron, or galvanized steel grates.  Consideration must be given to grate loading when using shallow trench drains.  The heavier the load the thicker the grate will be.  Thick grates increase the minimum depth of a shallow trench drain.  No matter the material, Dura trench drain systems are offered in a wide variety of patterns to meet any commercial trench drain application.  If we don’t have a pattern you want let us build it for you.

To have a truly heavy duty trench drain the system must transfer the load from the grate to the surrounding concrete.  A good commercial trench drain system for frequent and heavy duty traffic will have a load bearing frame.  It will not rely on the channel drain body to transfer that load.  The heavy duty channel drain frames that we offer are thick and rigid.  The thickness of the frame makes it rigid and durable.  All heavy duty trench drains must have frames that are also properly anchored in the surrounding concrete.  This is done using concrete anchors.  For heavy duty applications the diameter, length, and angle of these anchors matters.  A good frame should also have the proper end treatment or end frames to complete the system.  Dura Trench drain end frames are heavy gauge and welded to the frames to protect the edge of the drain from damage.  Many “commercial trench drains” are really designed to be economical to manufacture.  Little concern is really given to the heavy duty nature of the trench drain system.  We do not sacrifice the design of our heavy duty channel drain systems to get one more piece on a pallet and save on shipping costs.  We believe that true quality products have a better life time value.  Customers wanting a heavy duty channel drain system want something that will last.  We build our commercial trench drains for this type of application without compromise.​

The Dura Trench line of commercial trench drains is easily sealed water tight.  We offer a variety of sealant applications for our trench drain systems no matter what your application.  Learn more about our commercial trench drain sealants by clicking here.​

Finally, we are the only commercial trench drain manufacturer that will supply our products with any size or type of outlet pipe.  What good is a nice heavy duty trench drain if it can’t carry the water?  Installing a 12″ wide heavy duty channel drain with a 6″ outlet pipe is a little pointless.  We can supply our commercial trench drains with outlet pipes of any size or type.  We have cast 1″ through 24″ pipe outlets into our channel bodies in materials including PVC, HDPE, cast iron, stainless steel, and CPVC.  On shallow trench drains we will cast small diameter pipes out the end or side.  In most cases it is best to cast bottom outlets on shallow trench drains so that cover over the pipe is not an issue.  On deeper commercial trench drains it is not as critical where the outlet pipe is located.  Just ensure there is proper cover over the pipe especially for heavy duty trench drain systems.

​Dura Trench has spent years developing and perfecting our heavy duty channel drains.  In fact, we are not done perfecting our systems.  We believe that as the market, manufacturing technology, and demands change we must continue to innovate if we are to remain a leader in the commercial trench drain market.  Contact us and let us show you the differences in quality and speed of installation of our heavy duty trench drains!
