12 inch wide precast trench drain

$1,236.96$1,886.56

Clear

Description

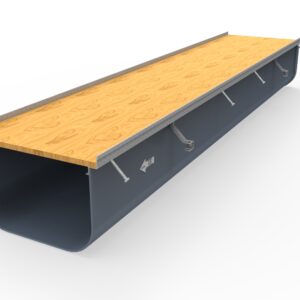

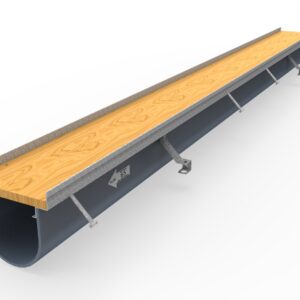

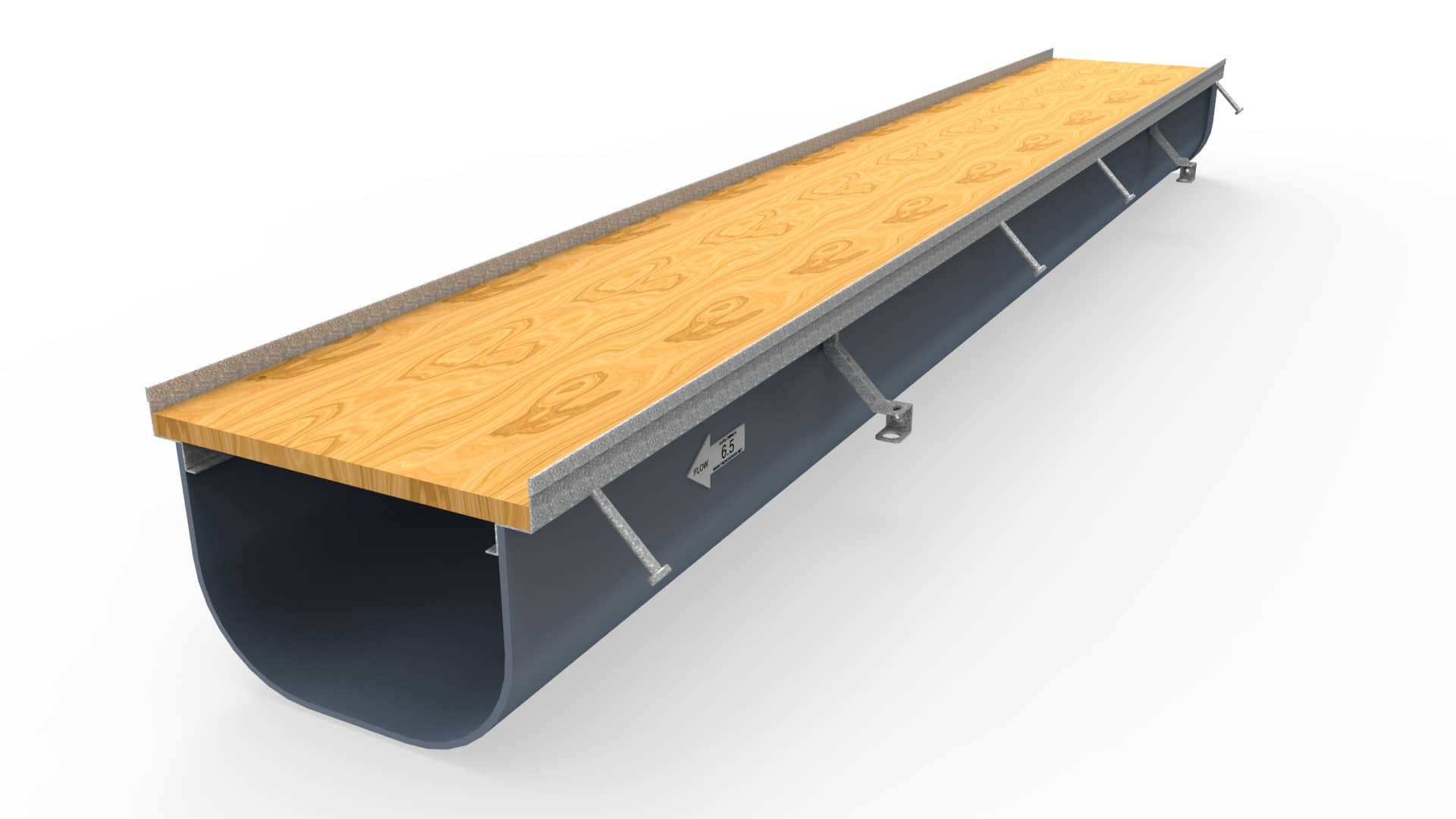

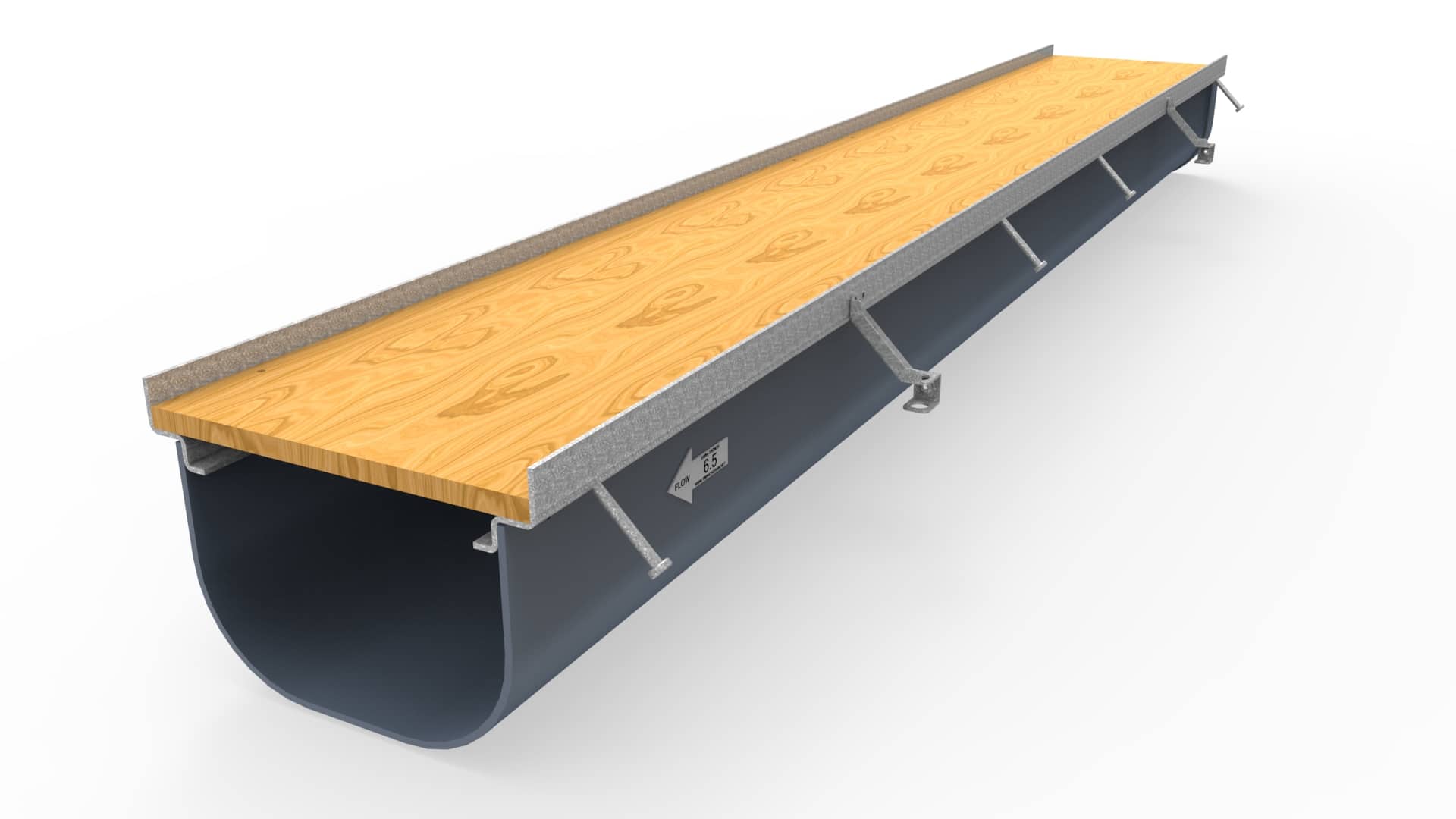

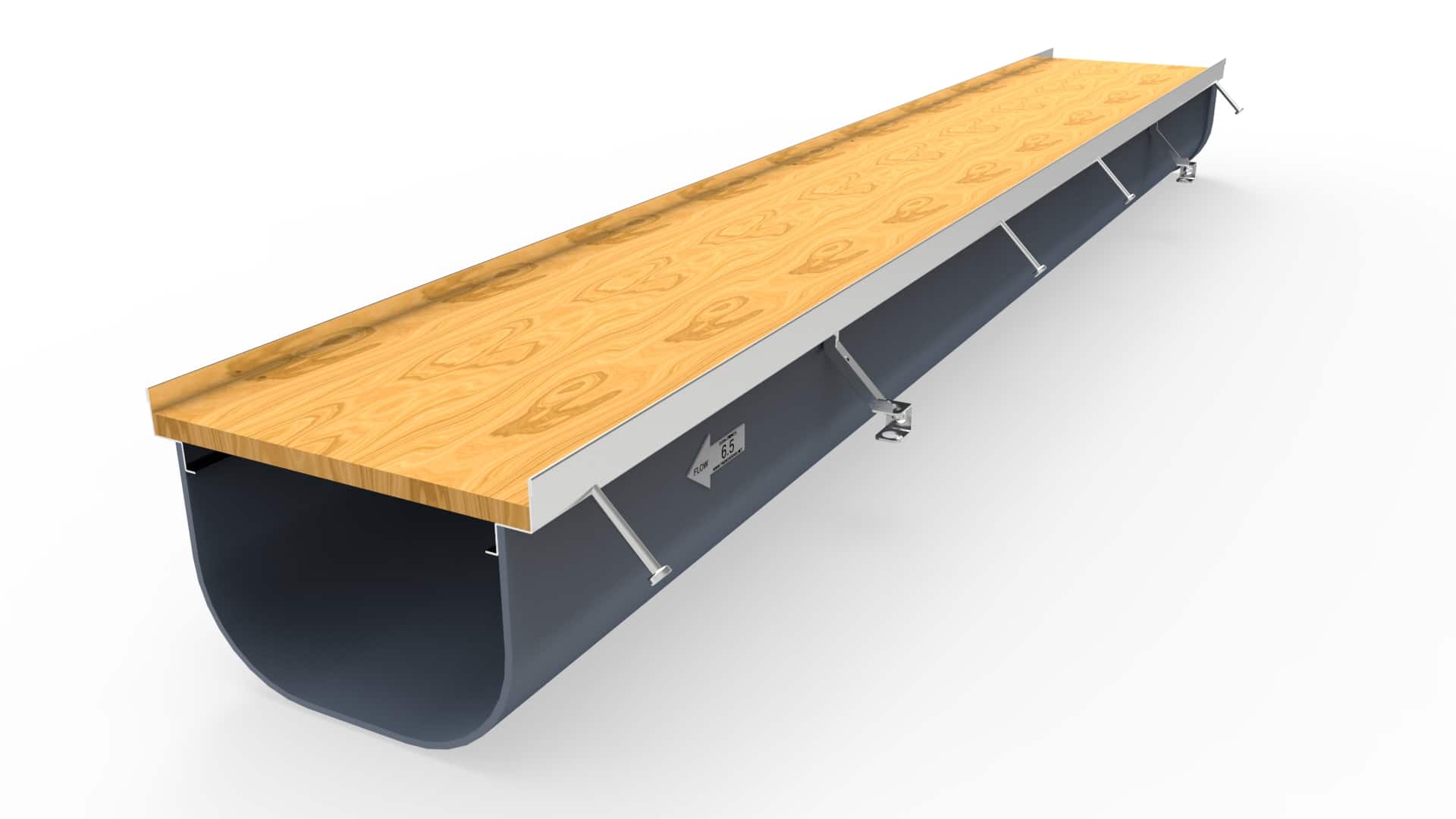

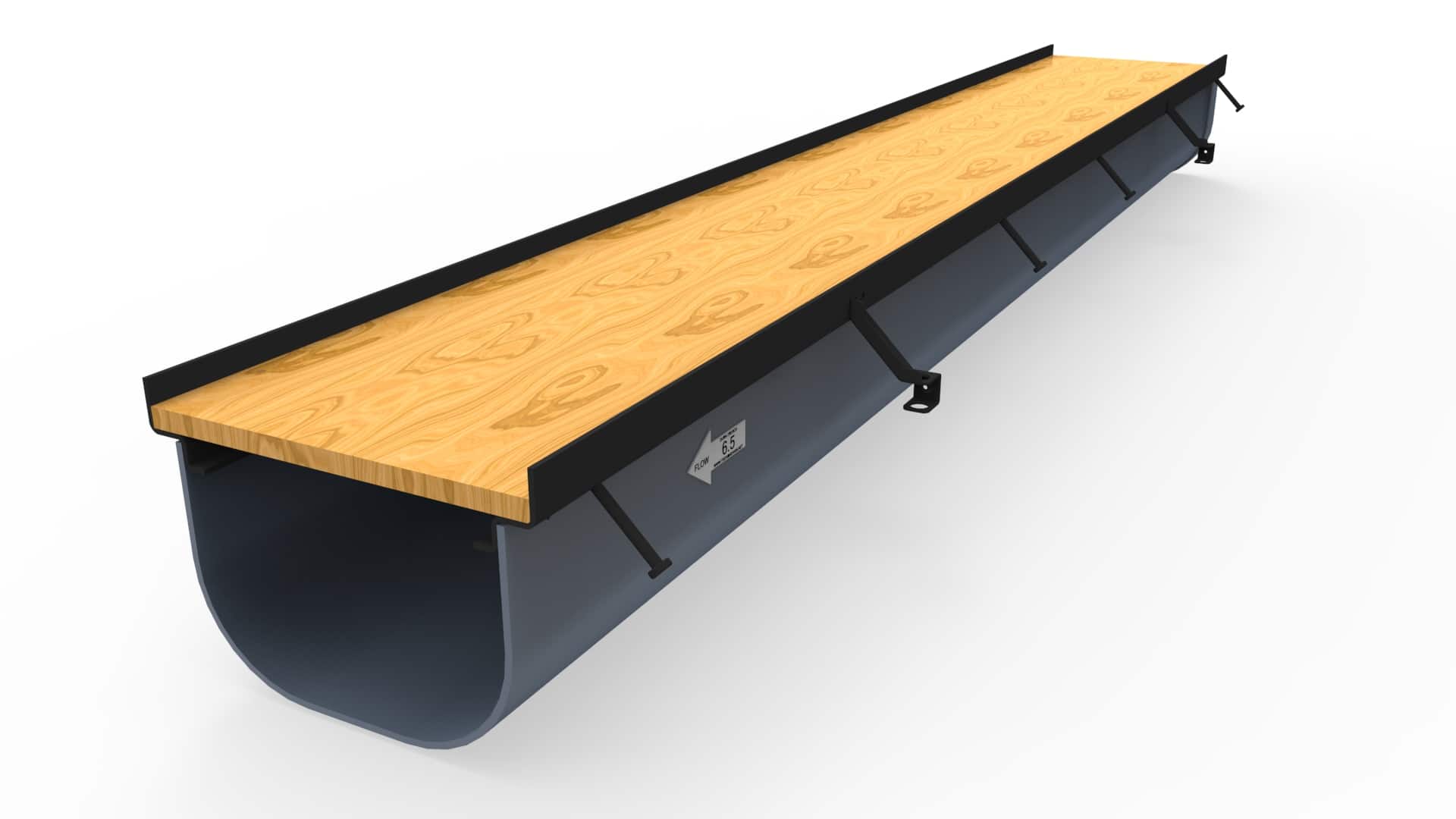

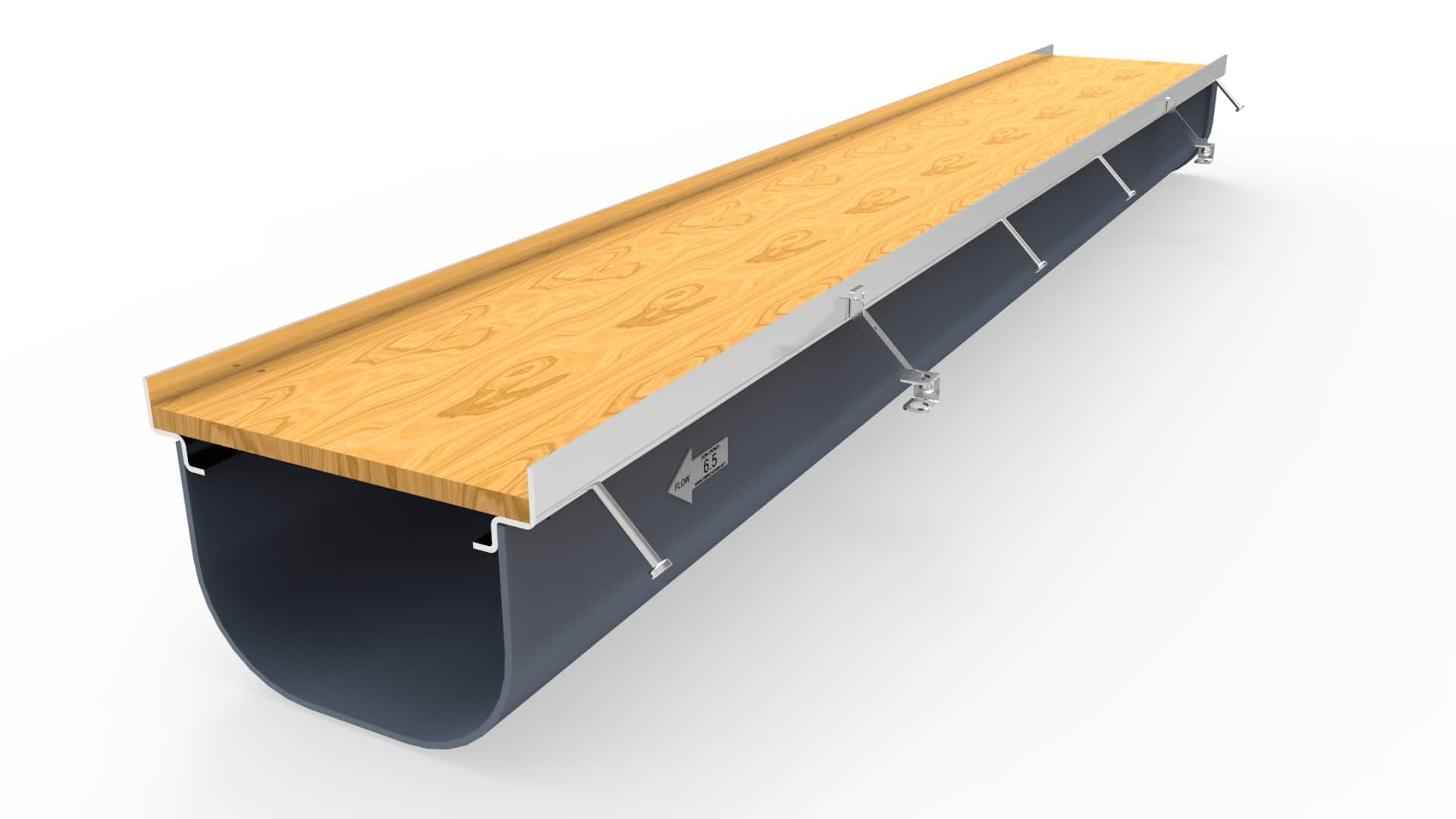

12 inch wide precast trench drain

12″ wide interior trench drains can be sloped from 7″ to 18″ deep typical. Typically used for flows up to 12 cfs (5250 gpm).  Frame options are medium duty galvanized steel, medium duty stainless steel, heavy duty black powder painted steel, heavy duty galvanized steel, heavy duty stainless steel, and extreme duty galvanized steel.  Comes complete with installation brackets, plywood covers, end plates and outlets.  Accepts any of the 14″ wide trench drain grates.  (contact us for pricing and availability on deeper depths)



Typical 12 inch wide precast trench drain applications:

Driveways

Roadways

Heavy civil

Highways

Industrial

Airports

Sea ports

Food processing

Additional information

Weight 65 lbs
Dimensions 108 × 16 × 18 in
PRODUCT INFO Trench width: 12" I.D. Grate width: 14" wide Section length: 8' long Depth: varies from 7" to 18" Slope: 0.5% typical (any other slope as required) Trench Material:  Polyester glass fiber reinforced polymer concrete Frame Material:  Various loadings, materials, and finishes offered.   Note:  after placing order a customer service representative will call you to confirm the details of your order and that it is configured in the manner that you choose.
Frame

EXGS extreme duty galvanized steel frame, HDBP heavy duty black powder painted steel frame, HDGS heavy duty galvanized steel frame, HDSS heavy duty stainless steel frame, MDGS Medium Duty Galvanized Steel Frame, MDSS medium duty stainless steel frame

RETURN & REFUND POLICY This product is assembled to order and will be custom built to your specifications.  As a result the trench is non-returnable.  Grates and locking hardware are returnable.  If they are in re-saleable condition they will be accepted and will be assessed a 25% restocking fee.
SHIPPING INFO Shipping of the DuraTrench product is by truck freight only due to the long section lengths.  A forklift is recommended to unload the materials, however, lift gate service is available for an additional charge.
