Shallow Trench Drains

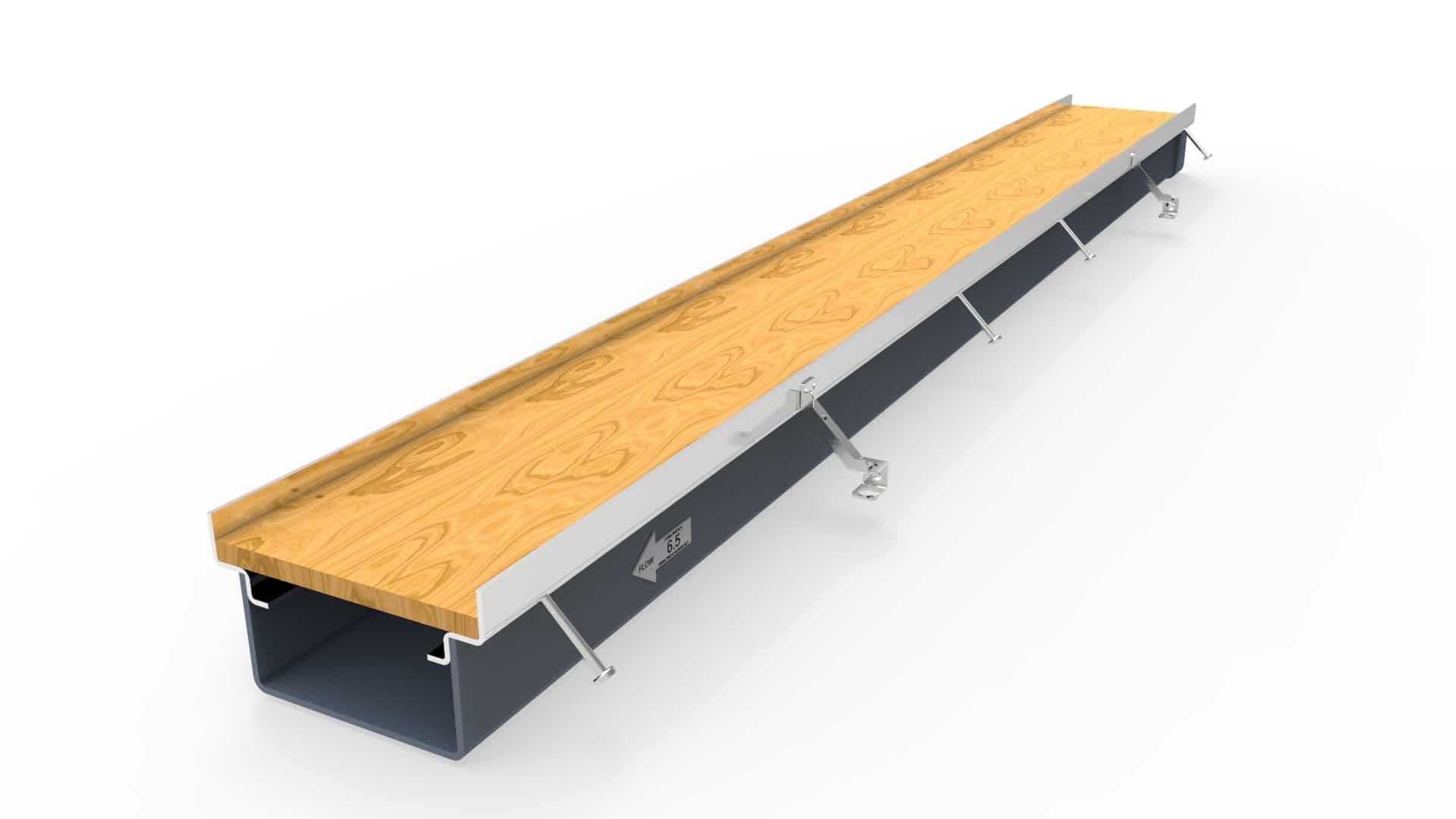

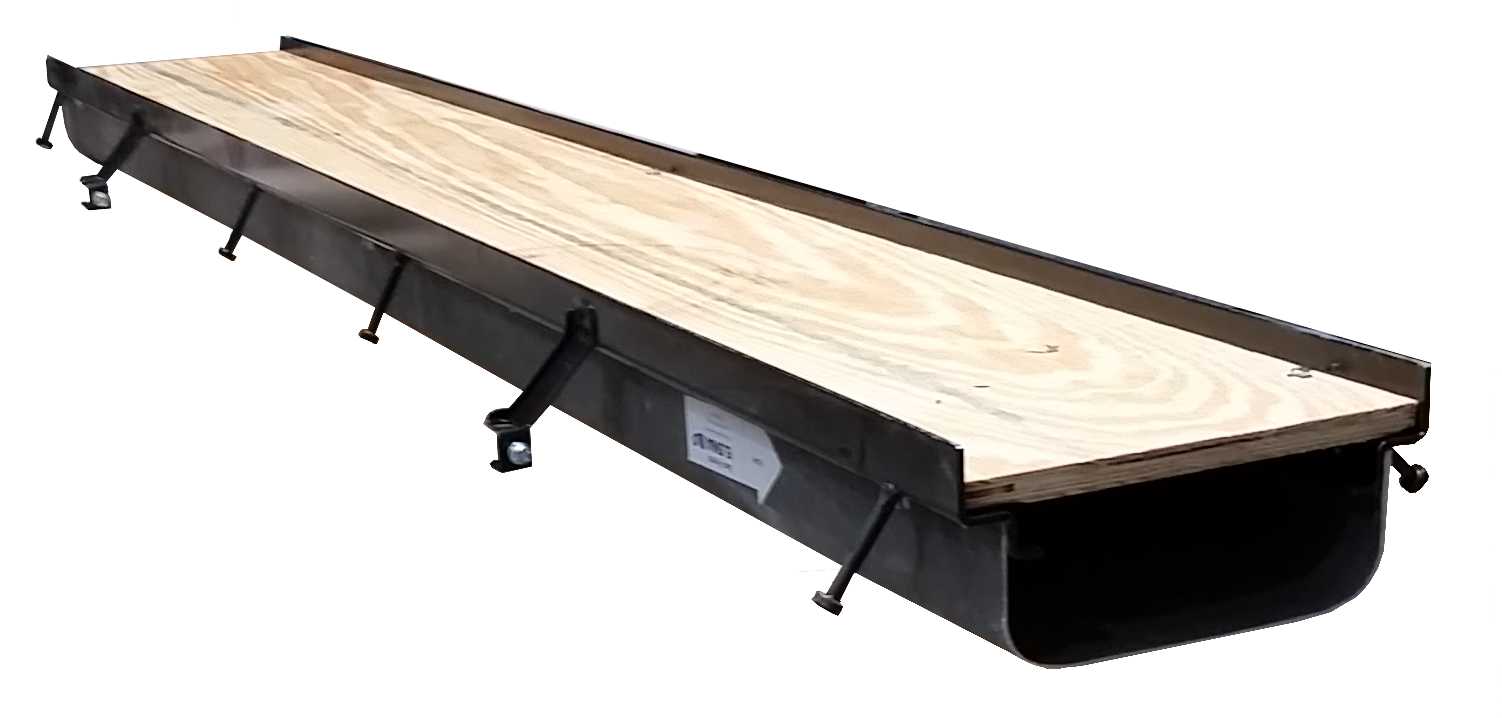

Shallow trench drains are a specialty for other trench drain manufacturers but for Dura Trench these are a standard item.  We manufacture all of our trench drain systems in a shallow configuration no matter the width.  Our shallow trench drain systems have starting depths of 2" deep.  We can also manufacture our shallow trench drains with slope unlike other shallow trench drain systems on the market.  Slope on a shallow drain system is extremely beneficial.  When you have limited flow capacity due to the shallow depth you need all the help you can get to keep the water and debris moving.  We often create systems that slope from 2" to 4" when on elevated decks or above basements.



Our shallow trench drains can have any width.  That's right - our shallow trench drains come in all sizes including 2" wide, 4" wide, 6" wide, 8" wide, 10" wide, 12" wide, 18" wide, 24" wide, 36" wide, and 48" wide.  To properly specify our shallow trench drain systems you don't have to do anything special.  Simply choose one of our commercial grade trench drains in any width and then specify the shallow depths you require.  Our capabilities of manufacturing any shallow depth trench drain will amaze you compared to the other options you have on the market.

TRENCH WIDTH

2" Trench Drain

4" Trench Drain

6" Trench Drain

8" Trench Drain

10" Trench Drain

12" Trench Drain

18" Trench Drain

24" Trench Drain

36" Trench Drain

48" Trench Drain

MIN. DEPTH

1.75"

2.0"

2.5"

2.5"

2.5"

2.5"

3.0"

3.0"

3.5"

3.5"

Also note that if you cannot get a shallow trench drain to work for you above the waterproofing membrane we manufacture trench drains that have a continuous clamping collar to accept the waterproofing membrane.  Our shallow trench drains that are above a waterproofing membrane can be outfit with a outlet pipe and clamping collar for the membrane penetration.  For more information on trench drains interaction with waterproofing membranes click here.
