Channel Drains

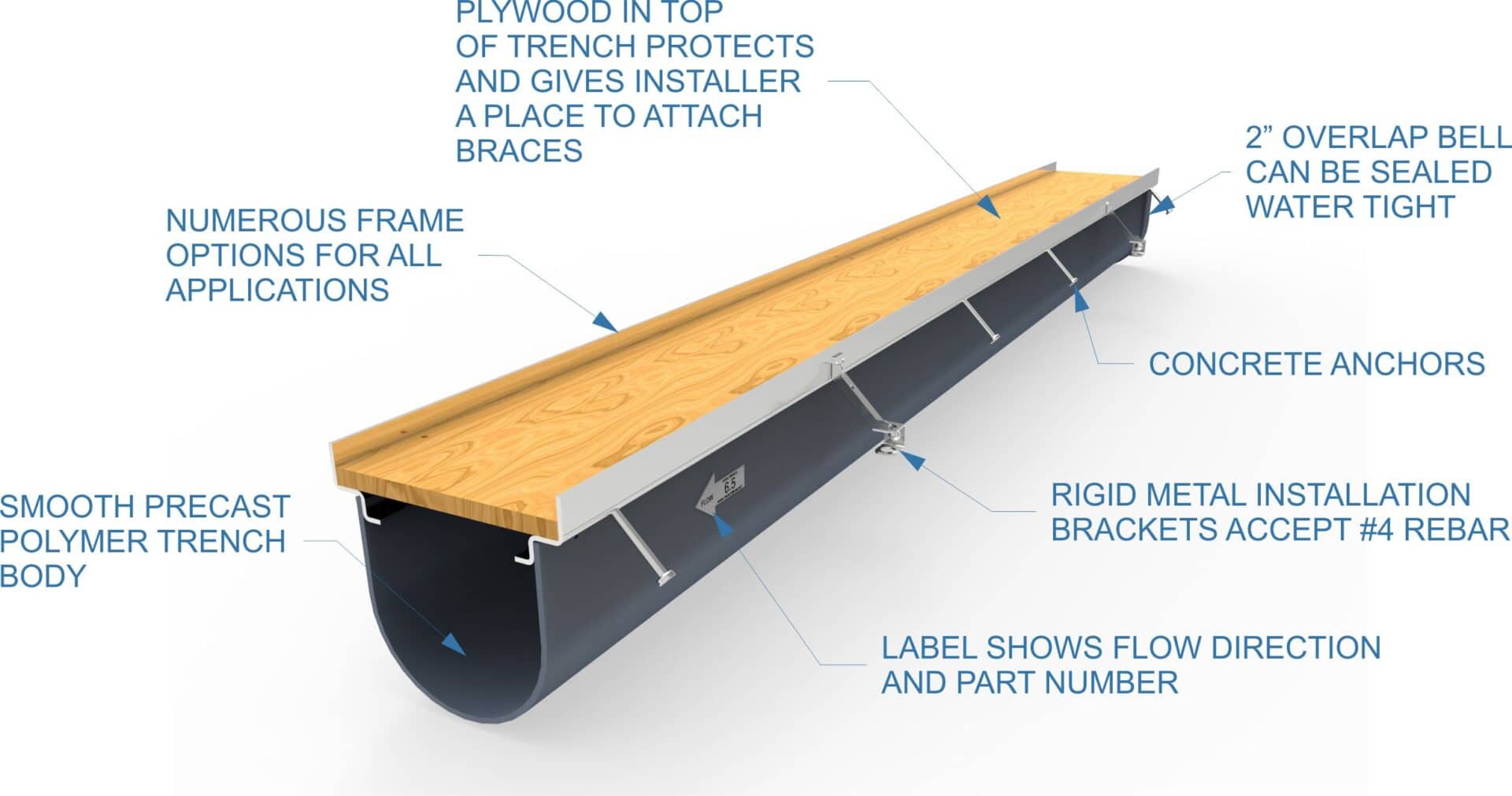

Dura Trench prefabricated channel drains are our most popular product line.  The pre-sloped channel drains are offered in many widths starting at 2" wide through 48" wide.  The channel drains come standard with 0.5% slope built in but can be manufactured with any slope specified.  The minimum depths can be as little as 2".  There are no maximum depth restrictions on this product other than construct-ability.  Dura trench channel drains offer a stable thermal set polymer body that is not temperature sensitive like most plastic channel drains.  The polymer body is also UV stable.  This makes Dura Trench channel drains suitable for some of the most harsh environments.  The long channel drain sections and light weight channel drain body make installation easy.  Plywood in the top of the channel drain is standard to keep the channel drain clean during concrete placement.  Built in metal installation aides are rigid and don't break off.  The product can be outfitted with a large number of frame options including painted steel, galvanized steel, iron, stainless steel, aluminum, plastic, fiberglass, brass, and bronze.  Choose a premium channel drain system that can meet your project requirements.

This general purpose channel drain system can handle flows in the 0.3 cfs (150 gpm) range.  Our channel drains sections come in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 3" wide channel drain grates to meet any design requirement.  This channel drain is typically used in patios, pool decks, residential projects, and other commercial projects where a low profile is desired.

This general purpose channel drain system can handle flows in the 2 cfs (950 gpm) range.  Our channel drain sections come in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 5" wide channel drain grates to meet any design requirement.  This size channel drain is the most commonly used commercial channel drain system but is also highly useful in residential applications.  Because this size channel drain is so common it also has the widest selection of grates.  This size channel drain is great for landscape areas, driveways, around fountains, commercial parking lots, kennelsfood service areas, industrial use, sport fields, airports, and most any other commercial channel drain application.

This general purpose channel drain system can handle flows in the 4 cfs (1800 gpm) range.  Our channel drain sections come in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 8" wide channel drain grates to meet any design requirement.  This size channel drain is typically used when a 4" channel is truly under sized.  This is generally a commercial channel drain product but in some cases can be used in a residential drive way.

This general purpose channel drain system can handle flows in the 6 cfs (2750 gpm) range.  Our channel drain sections come in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 10" wide channel drain grates to meet any design requirement.  The 8" wide channel drain is a commercial trench drain product.  This heavy duty channel drain is versatile enough for industrial applications, fire stations, parking lots, highways, airports, etc.

This general purpose channel drain system can handle flows in the 9 cfs (4000 gpm) range.  Our channel drain sections come in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 12" wide channel drain grates to meet any design requirement.  This is one of the most widely used commercial channel drains.  It is large enough to be cleaned with a standard shovel giving it wide industrial and commercial use.  This size channel drain has a lot of grating options making it suitable for sea ports, airports, highway projects, loading docks, gas stations, parking lots, industrial areas, food processing, etc.

This general purpose channel drain system can handle flows in the 12 cfs (5250 gpm) range.  Our channel drain sections come in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 14" wide channel drain grates to meet any design requirement.  This is a common commercial channel drain system size.  It was a typical size when channel drains were hand formed and continues to be popular today. It is a highly useful industrial size because it can be easily cleaned even when the channel is very deep.  This is still a very common commercial size and can be used in all the same airport, sea port, food processing, heavy civil, roadway, and other high flow channel drain applications.

This general purpose channel drain system can handle flows in the 22 cfs (10,000 gpm) range.  Our channel drain sections come in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 20" wide channel drain grates to meet any design requirement.  This is the start of the larger high flow channel drain systems.  This size channel drain is sometimes used in commercial or industrial projects, but is most commonly seen in demanding civil applications.  This can be used in steep cross slopes where all flow must be captured in the channel drain.  Also useful in large paved areas where the flows exceed that of a smaller size channel drain.

This general purpose channel drain system can handle flows in the 35 cfs (15,500 gpm) range.  Our channel drain sections come in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 26" wide channel drain grates to meet any design requirement.  This size channel drain system is useful in industrial and civil applications where high flows or large amounts of sediment are expected.  These channels have use in power plants, manufacturing, heavy civil, sea ports, etc.

This general purpose channel drain system can handle flows in the 60 cfs (27,000 gpm) range.  Our channel drain sections come in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 38" wide channel drain grates to meet any design requirement.  This size channel drain is less commonly used but is necessary in some civil and industrial applications.  This size channel drain can handle high debris loading and very high flow volumes.

This general purpose channel drain system can handle flows in the 90 cfs (40,000 gpm) range.  Our channel drain sections come in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  Offered with a wide selection of frames and 50" wide channel drain grates to meet any design requirement.  This is the largest standard channel drain that Dura Trench manufactures.  This channel drain is often used when multiple channel drains converge into one header channel.  This channel drain is primarily seen in heavy industrial applications and occasional civil applications.
