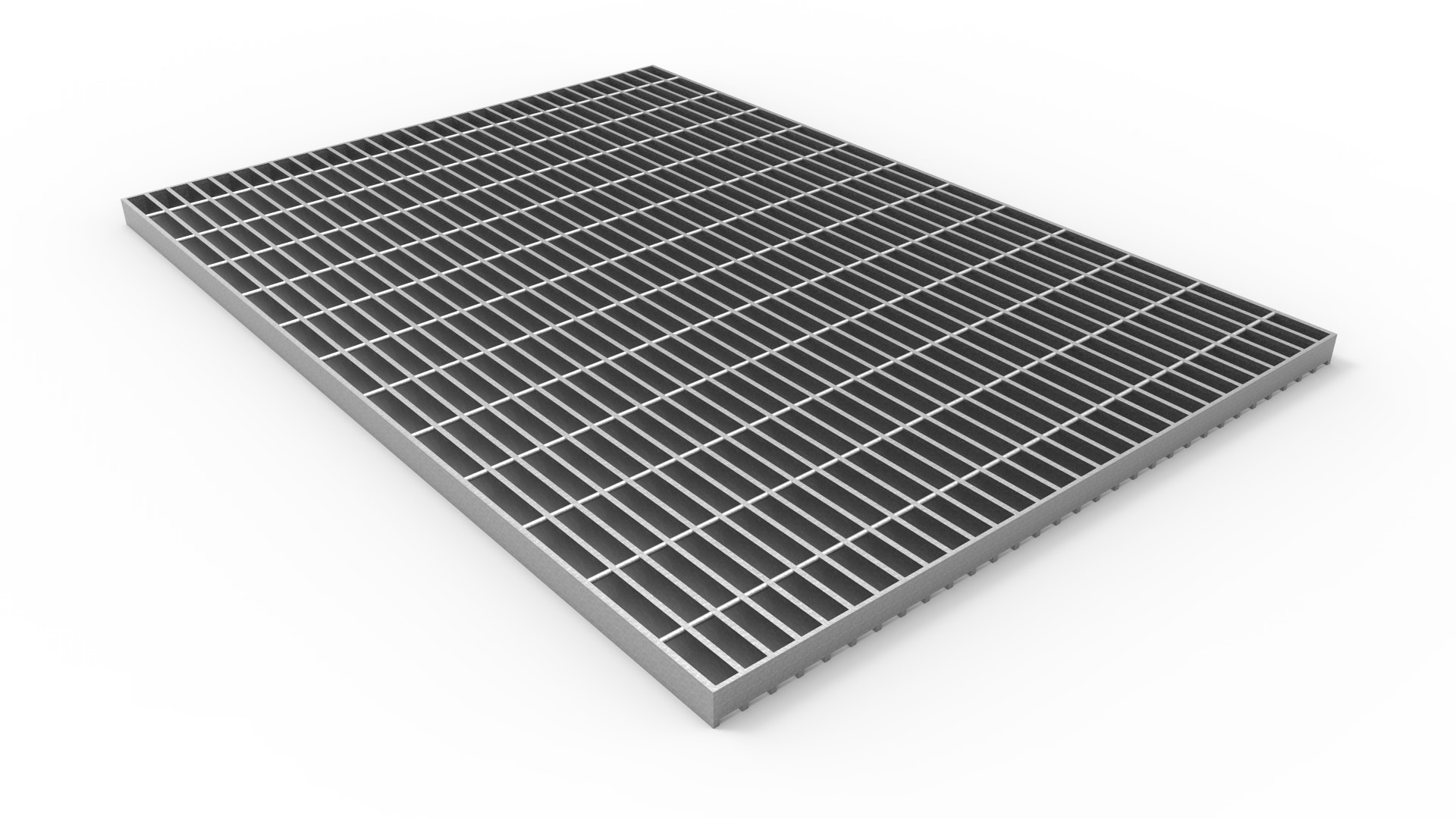

50-inch Wide Galvanized Steel Bar Grate – Medium Duty

Category: 50" wide trench drain grates, Drainage Grates
SKU: 50G24GSB
Documents: Click here for Specification Sheet

SKU: 50G24GSB

50-inch Wide Galvanized Steel Bar Grate – Medium Duty

  • 50-inches wide x 24-inches long x 1.5-inches thick
  • Fabricated with 3/8-inch thick bearing bars at 1 3/16-inch on center, banded edges, and cross bars at 4-inch on center
  • Rated for DIN Class B – Medium Duty Grate design load of at least 28,100 lbs per foot. (125 kn)
  • General purpose use
  • Corrosion resistant
  • Typically used on a 48-inch stainless steel trench drain or a 48-inch wide catch basin
  • The openings allow for the intake of large volumes of water
  • Typically used in industrial and manufacturing facilities and any other areas where a high intake volume and corrosion resistance are necessary
