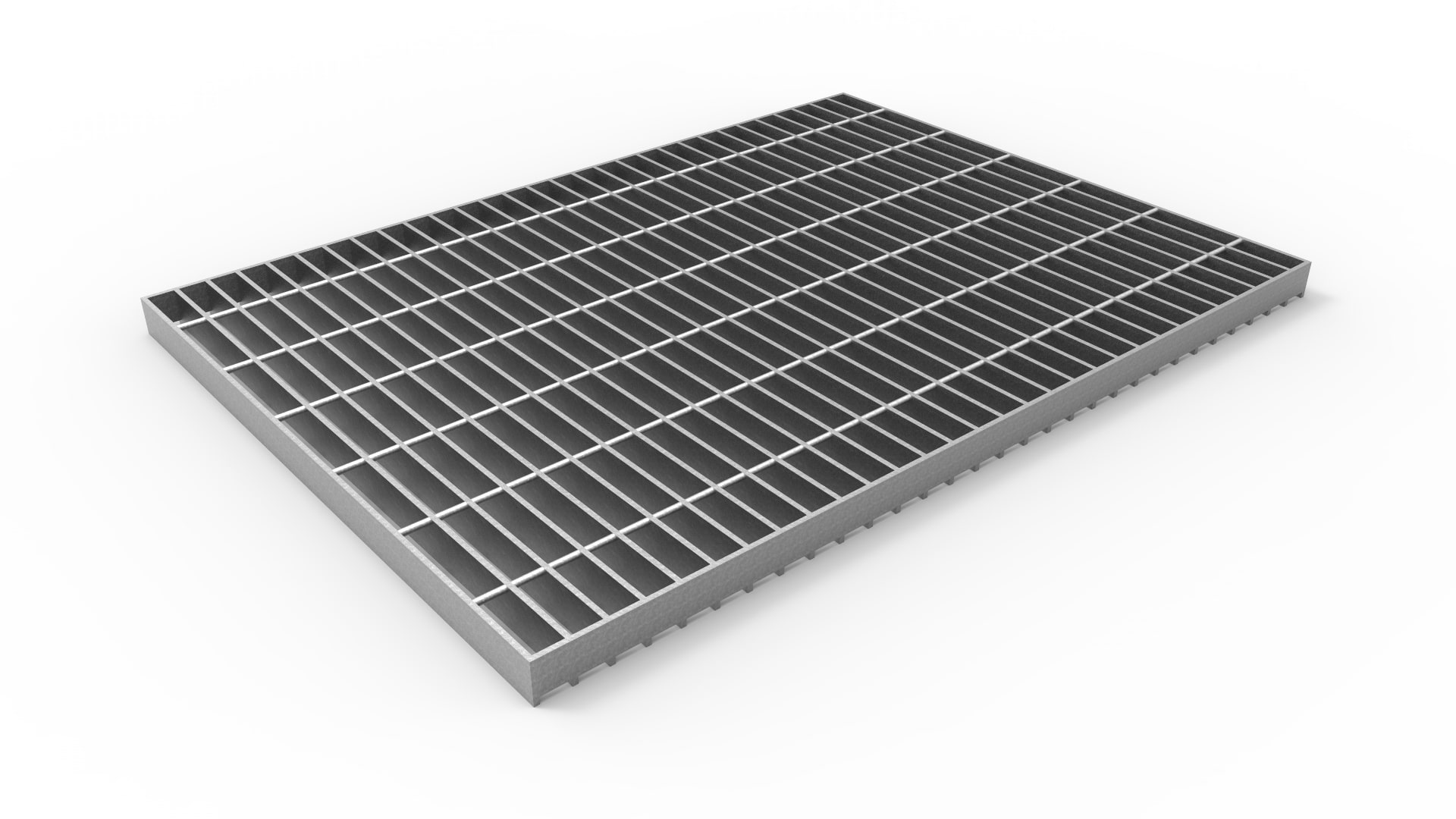

26″ wide galvanized steel trench drain bar grate


SKU: 26G24GSA Categories: ,


galvanized steel bar grate  – 26″ wide x 24″ long x 1.5″ thick, with 3/16″ thick bearing bars at 1 3/16″ O.C., banded edges, and cross bars at 4″ o.c


This is a good general purpose 26″ wide trench drain grate.  It is typically used on an 24” wide prefabricated trench drain or 24” wide catch basin.  The larger openings plug less often making this grate ideal for the intake of large amounts of water.  Typical uses are trench drains in industrial and manufacturing facilities, and any other area where a high intake volume is required.

Additional information

Weight 91.5 lbs
Dimensions 24 × 26 × 1.5 in
Documents Click here for Specification Sheet
