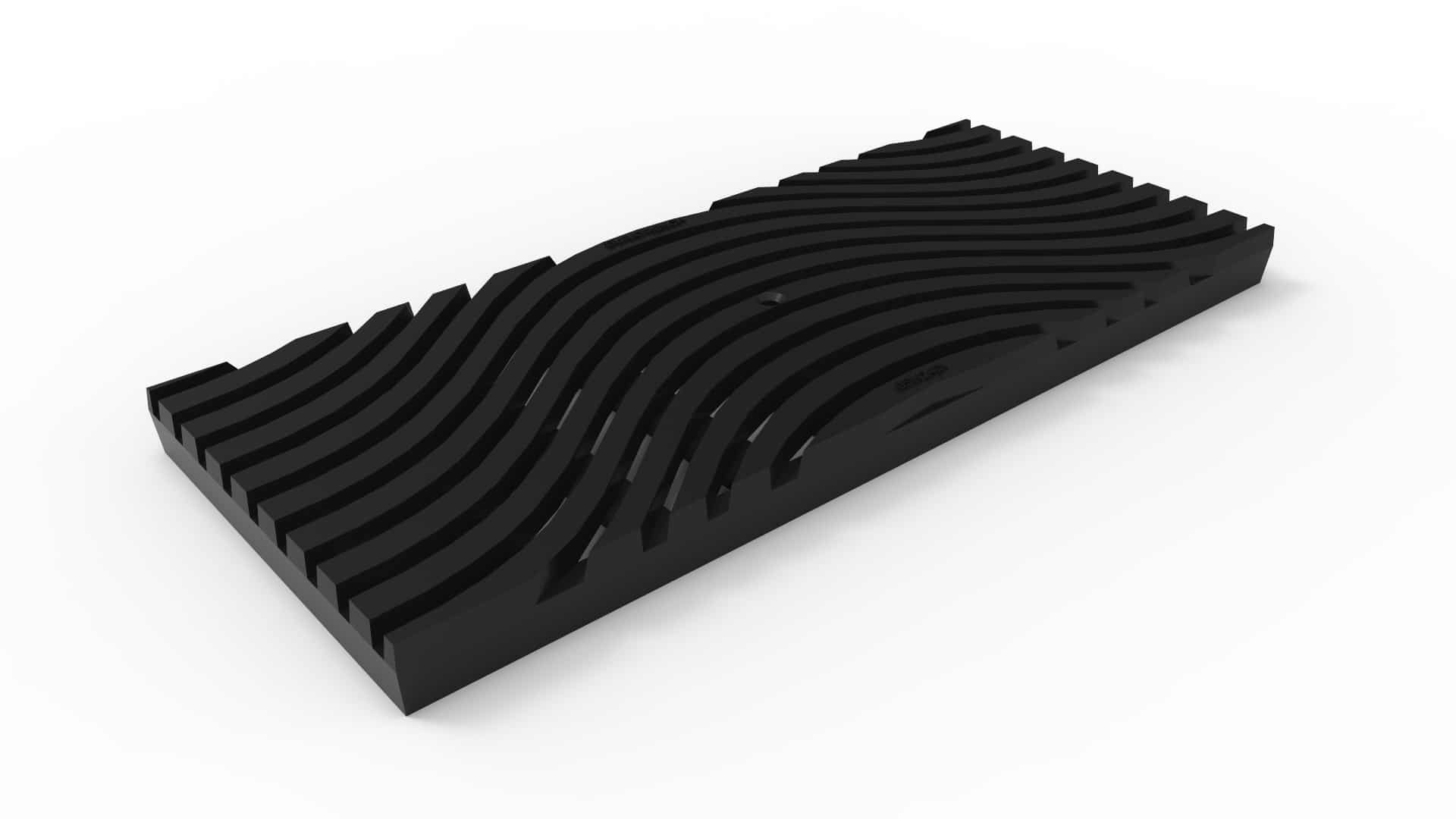

10″ wide ADA wave pattern ductile iron trench drain grate


SKU: 10W24DI Categories: ,


Ductile iron wave pattern grate – black – 10″ wide x 24″ long x 1.5″ thick  – rated for DIN load class C.


This 10″ wide trench drain grate is used where the designer wants the trench drain to be aesthetically pleasing and still needs ADA compliance.  This wave pattern grate also has significant inflow capability.  It is typically used on an 8″ wide trench drain or 8″ wide catch basin.  The smaller openings are more prone to clogging than a slotted grate, but will provide adequate inflow when properly maintained.  Typical uses are trench drains in combined traffic and pedestrian areas such as at shopping centers, churches, parks, pavilions, and any other area where  high flow rates are required but the design cannot be compromised.

Additional information

Weight 48.6 lbs
Dimensions 24 × 10 × 1.5 in
Documents Click here for Specification Sheet
Locking Devices

GLSS8 Stainless grate lock, GLZN8 Zinc plated grate lock, None
