24 inch wide utility trench

$2,278.08$2,783.08

Clear

Description

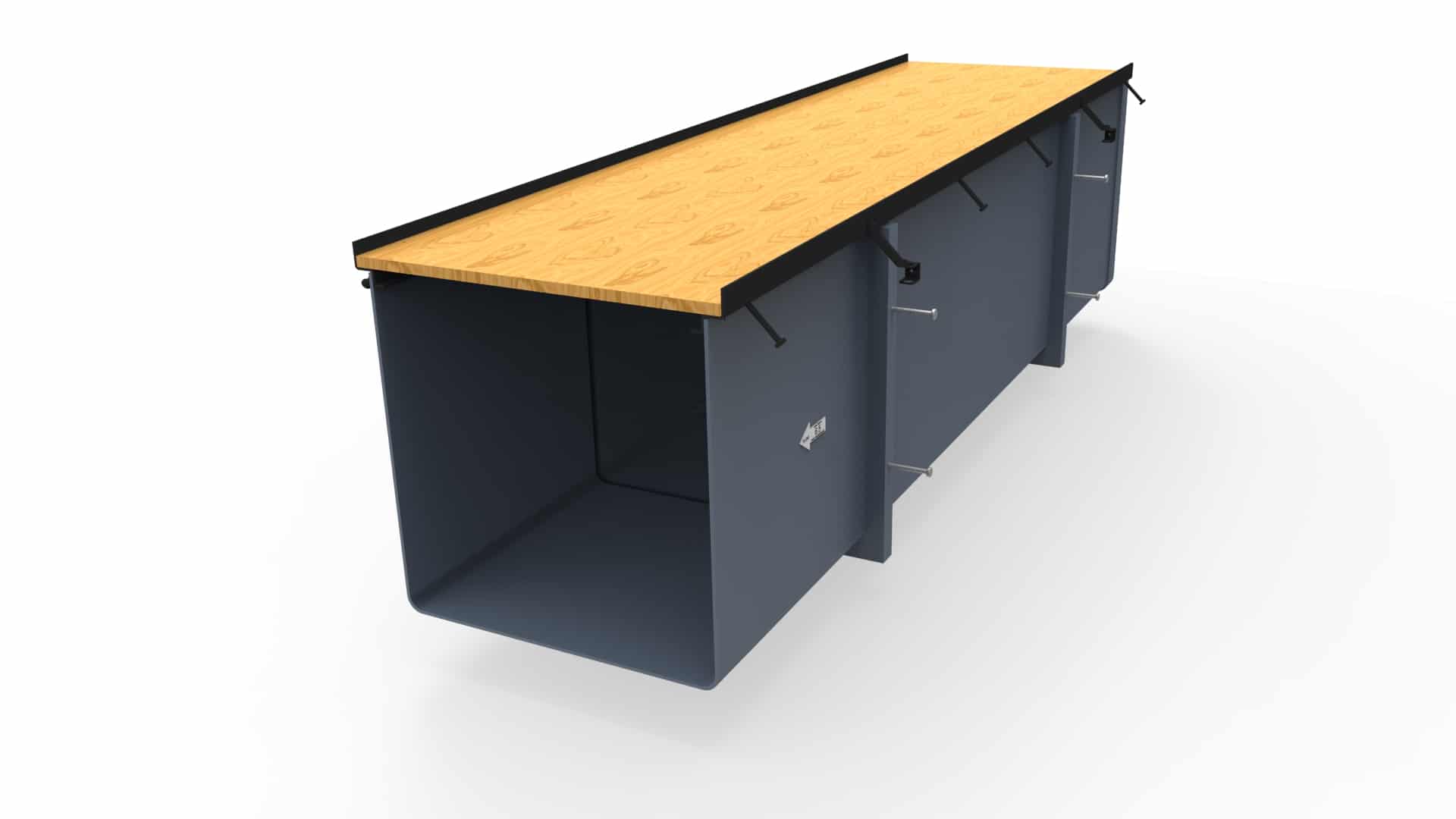

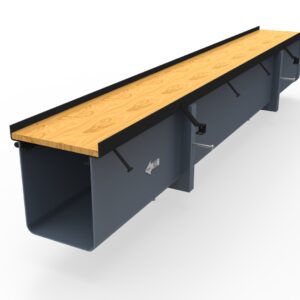

Dura Trench DTUT – 24 inch wide utility trench.  This utility trench has an interior width of 24″ wide.  The depth can be neutral or sloped from 12″ to 24″ deep typical.  1 5/8″ channel strut cast into walls at 48″ o.c.  Frame options are heavy duty black powder painted steel, heavy duty galvanized steel, heavy duty stainless steel, and extreme duty galvanized steel.  These 24″ wide utility trenches come in modular sections that are typically 8′ long.  Each section comes pre-sloped and indexes with the next section.  All sections are numbered for easy installation.Comes complete with installation brackets, plywood covers, end plates and outlets.  Accepts any of the 26″ wide trench drain covers or grates.  (contact us for pricing and availability on deeper depths, turns, and custom features)



Use the Dura Trench 24 inch wide utility trenches for:



Compressed air piping

High voltage electrical access

Oil and grease lines

Water lines

Drain lines

Chemical piping

Low voltage communications

Secondary containment

etc.



How can we help you with your 24 inch wide utility trench needs?

Additional information

Weight N/A
PRODUCT INFO Trench width: 24" I.D. Grate width: 26" wide Section length: 8' long Depth: varies from 12" to 24" Slope: 0.0% & 0.5% typical (any other slope as required) Trench Material:  Polyester glass fiber reinforced polymer concrete Frame Material:  Various loadings, materials, and finishes offered.   Note:  after placing order a customer service representative will call you to confirm the details of your order and that it is configured in the manner that you choose.
Frame

EXGS extreme duty galvanized steel frame, HDBP heavy duty black powder painted steel frame, HDGS heavy duty galvanized steel frame, HDSS heavy duty stainless steel frame

RETURN & REFUND POLICY This product is assembled to order and will be custom built to your specifications.  As a result the trench is non-returnable.  Grates and locking hardware are returnable.  If they are in re-saleable condition they will be accepted and will be assessed a 25% restocking fee.
SHIPPING INFO Shipping of the DuraTrench product is by truck freight only due to the long section lengths.  A forklift is recommended to unload the materials, however, lift gate service is available for an additional charge.
