18 inch wide utility trench

$2,465.20$2,983.12

Clear

Description

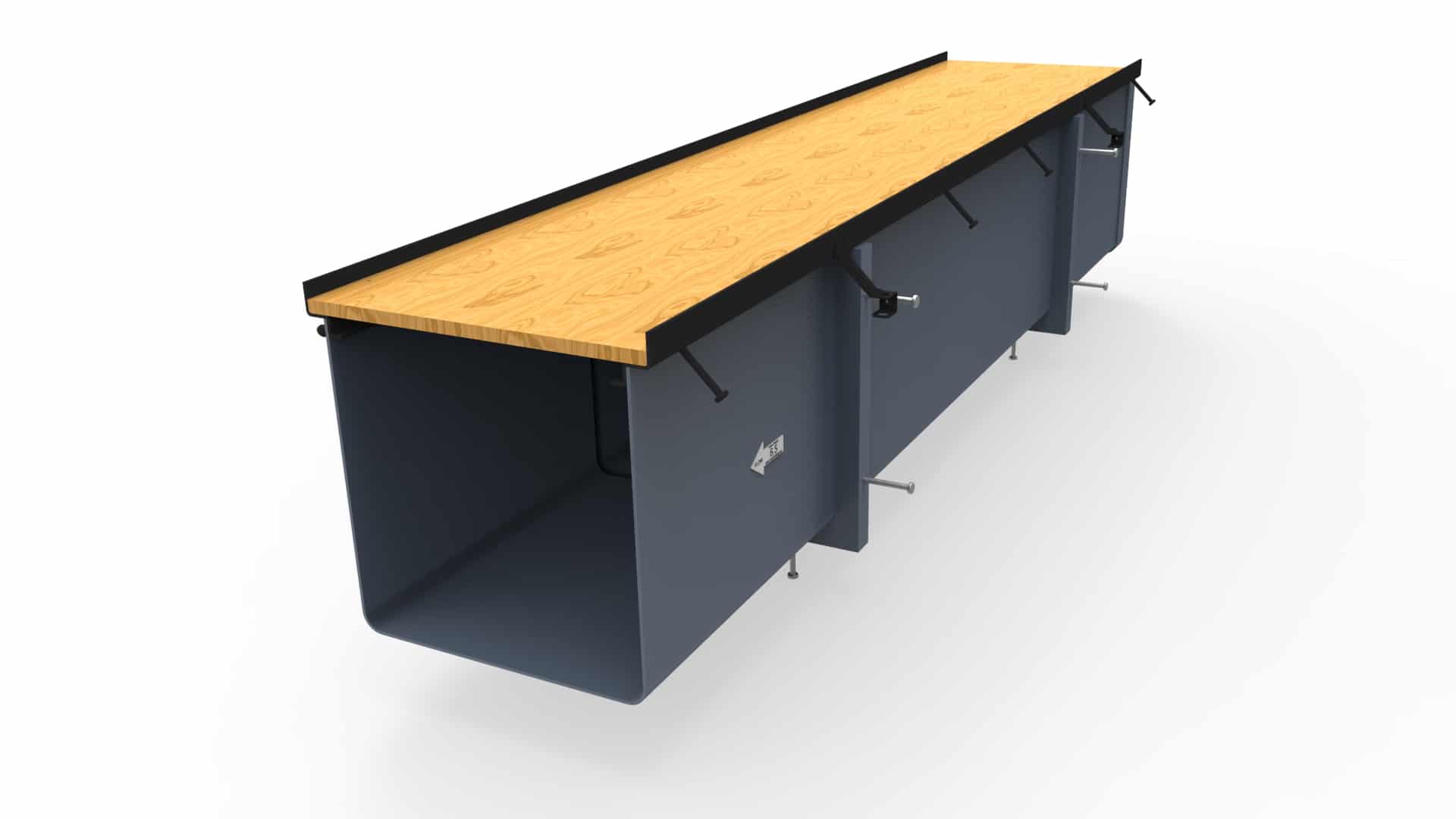

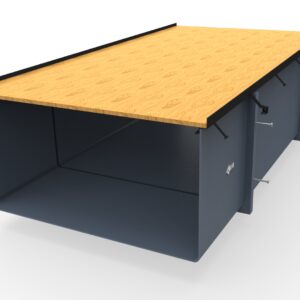

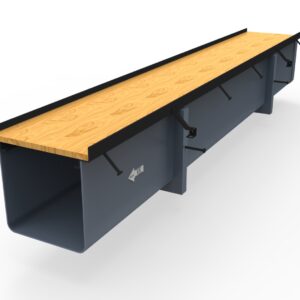

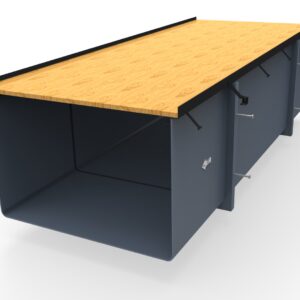

Dura Trench DTUT – 18 inch wide utility trench.  This utility trench has an interior width of 18″ wide.  The depth can be neutral or sloped from 18″ to 24″ deep typical.  1 5/8″ channel strut cast into walls at 48″ o.c.  Frame options are heavy duty black powder painted steel, heavy duty galvanized steel, heavy duty stainless steel, and extreme duty galvanized steel.  These 18″ wide utility trenches come in modular sections that are typically 8′ long.  Each section comes pre-sloped and indexes with the next section.  All sections are numbered for easy installation.Comes complete with installation brackets, plywood covers, end plates and outlets.  Accepts any of the 20″ wide trench drain covers or grates.  (contact us for pricing and availability on deeper depths, turns, and custom features)

Utility trenches are made to offer you the ability to handle large volumes of water on your property or at your business. Utility trenches are made to be used for all kinds of tough jobs and can help your property to handle tough chemical runoff as well as regular water runoff. All of our trenches are made in segments that can easily be joined together to prevent leaks and breakdown of the integrity of your trenches.

You will get all of the things that you need to install and place your trenches when you order from us. All of our trenches come with a prefabricated slope, installation brackets, and the trench covers and end caps that you need. You will also be able to choose from powder-painted steel, galvanized steel, extreme heavy-duty galvanized steel, and stainless steel for your installation needs. These products are made to hold up to tough traffic passing over them as well as high volumes of runoff.

You can also use your trenches to pass compressed air piping, high voltage electrical access, oil and grease lines, and water lines through areas of your property. We know that you cannot afford to have these lines damaged and we make sure that our trenches will keep your voltage, air and grease, and oil lines safe and secure at all times. Digging your own trenches or pouring your own trenches will not offer the same protection for these critical items that our products can give to you.

Being able to add the 20” wide trench drain covers to your installed trenches is another big benefit and you can connect these trenches with ease to other parts of your drainage system with ease. You will not have to work in a bunch of custom solutions to make your trenches fit into your existing drainage if that is how you are planning to use your trenches. We can also make you custom fittings and connections as needed to help you get the most out of the trench installation that we have provided for you.

All of our orders are accompanied by a consultation from our skilled customer service team to make sure that you have all the parts and pieces that you need for a successful installation overall. We want you to have a great experience when you work with us and we make sure that you get the support to make this possible. Being sure that you are getting the precise items that you need for your utility trenches is a big benefit to working with us for your trench supplies and needs.

You will find that our unique design for our trenches makes them easy to install with fewer people and you will get a long-lasting trench solution that you can count on no matter what kinds of tough traffic or drainage these trenches need to handle on a daily basis. You will also be spared the hassles of having to customize and design each segment of your trenching. We make really high-quality trenches that are easy to assemble and place.

Use the Dura Trench 18 inch wide utility trenches for:

Compressed air piping

High voltage electrical access

Oil and grease lines

Water lines

Drain lines

Chemical piping

Low voltage communications

Secondary containment

etc.

How can we help you with your 18 inch wide utility trench needs?

Additional information

Weight N/A
PRODUCT INFO Trench width: 18" I.D. Grate width: 20" wide Section length: 8' long Depth: varies from 12" to 24" Slope: 0.0% & 0.5% typical (any other slope as required) Trench Material:  Polyester glass fiber reinforced polymer concrete Frame Material:  Various loadings, materials, and finishes offered.   Note:  after placing order a customer service representative will call you to confirm the details of your order and that it is configured in the manner that you choose.
Frame

EXGS extreme duty galvanized steel frame, HDBP heavy duty black powder painted steel frame, HDGS heavy duty galvanized steel frame, HDSS heavy duty stainless steel frame

RETURN & REFUND POLICY This product is assembled to order and will be custom built to your specifications.  As a result the trench is non-returnable.  Grates and locking hardware are returnable.  If they are in re-saleable condition they will be accepted and will be assessed a 25% restocking fee.
SHIPPING INFO Shipping of the DuraTrench product is by truck freight only due to the long section lengths.  A forklift is recommended to unload the materials, however, lift gate service is available for an additional charge.
