12 inch wide slotted drain

$2,000.90$2,528.60

Clear

Description

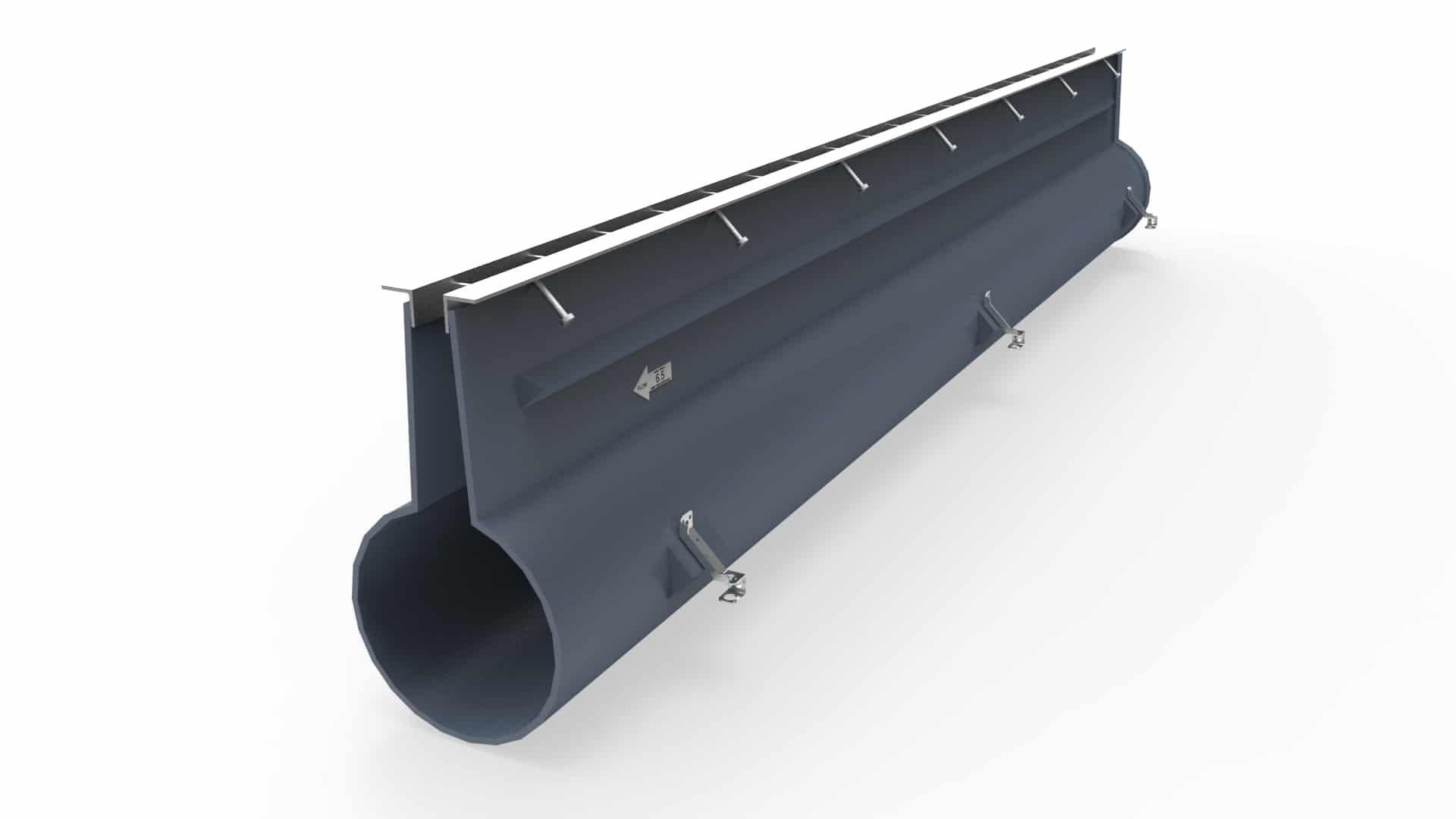

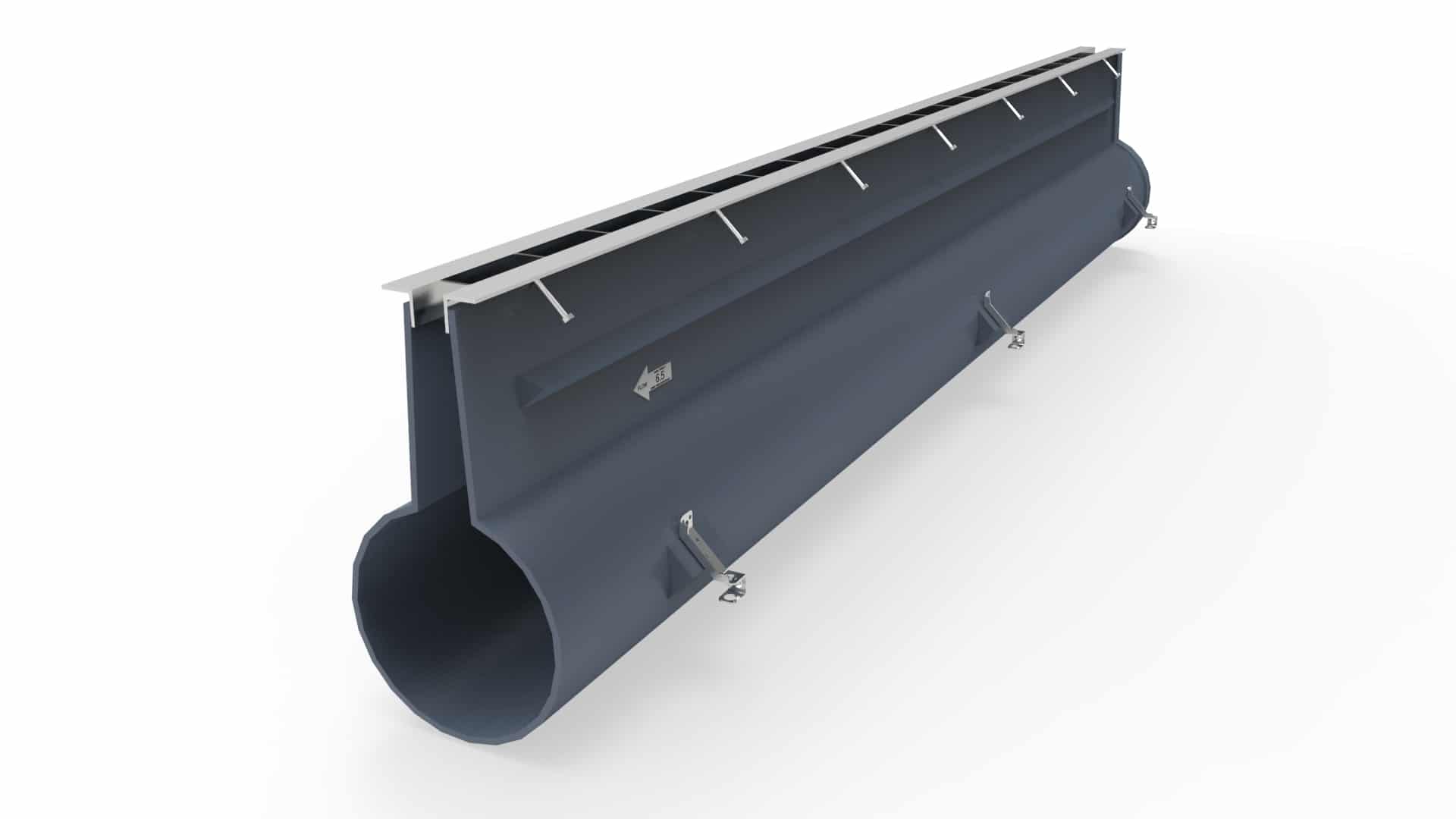

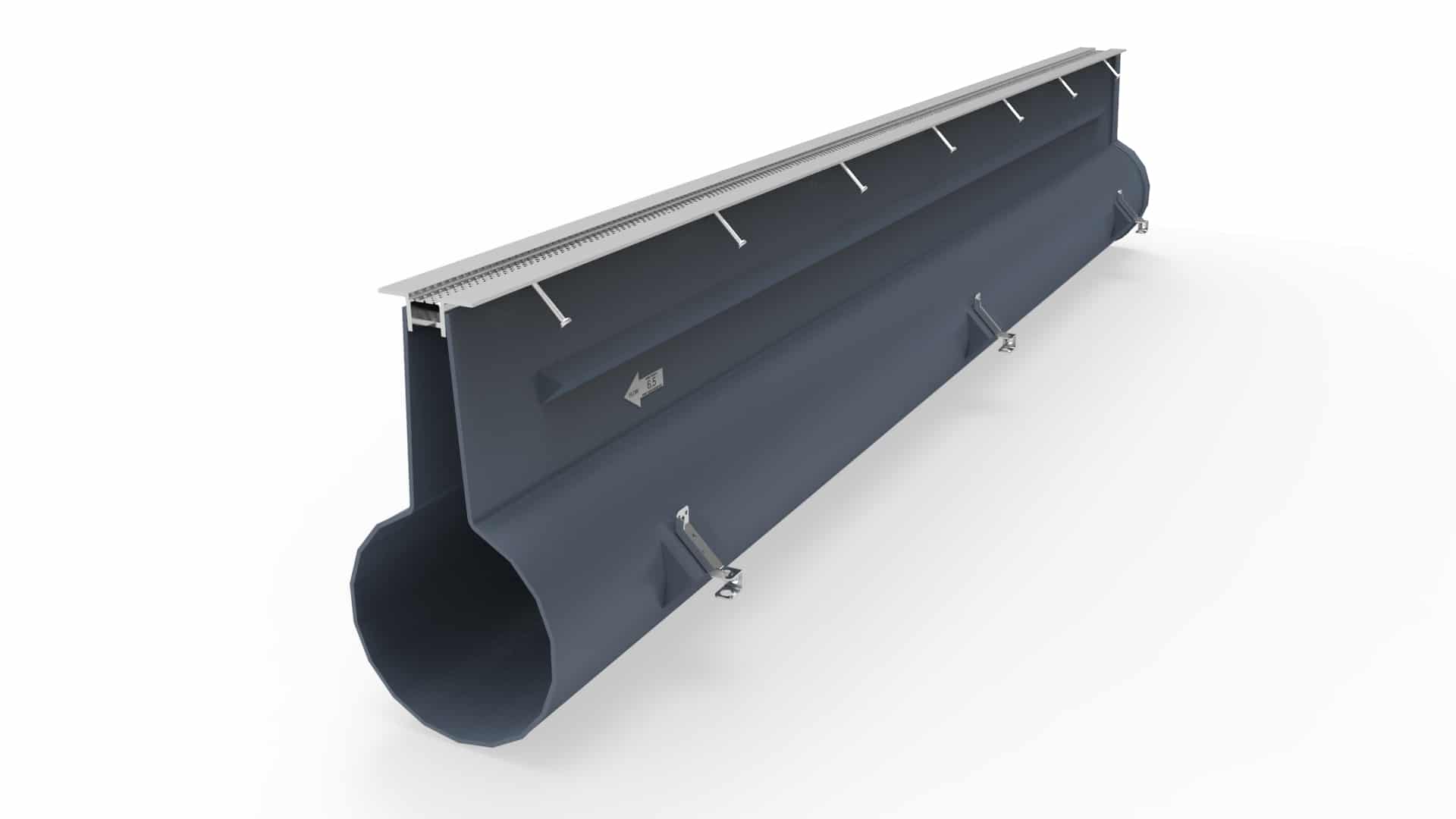

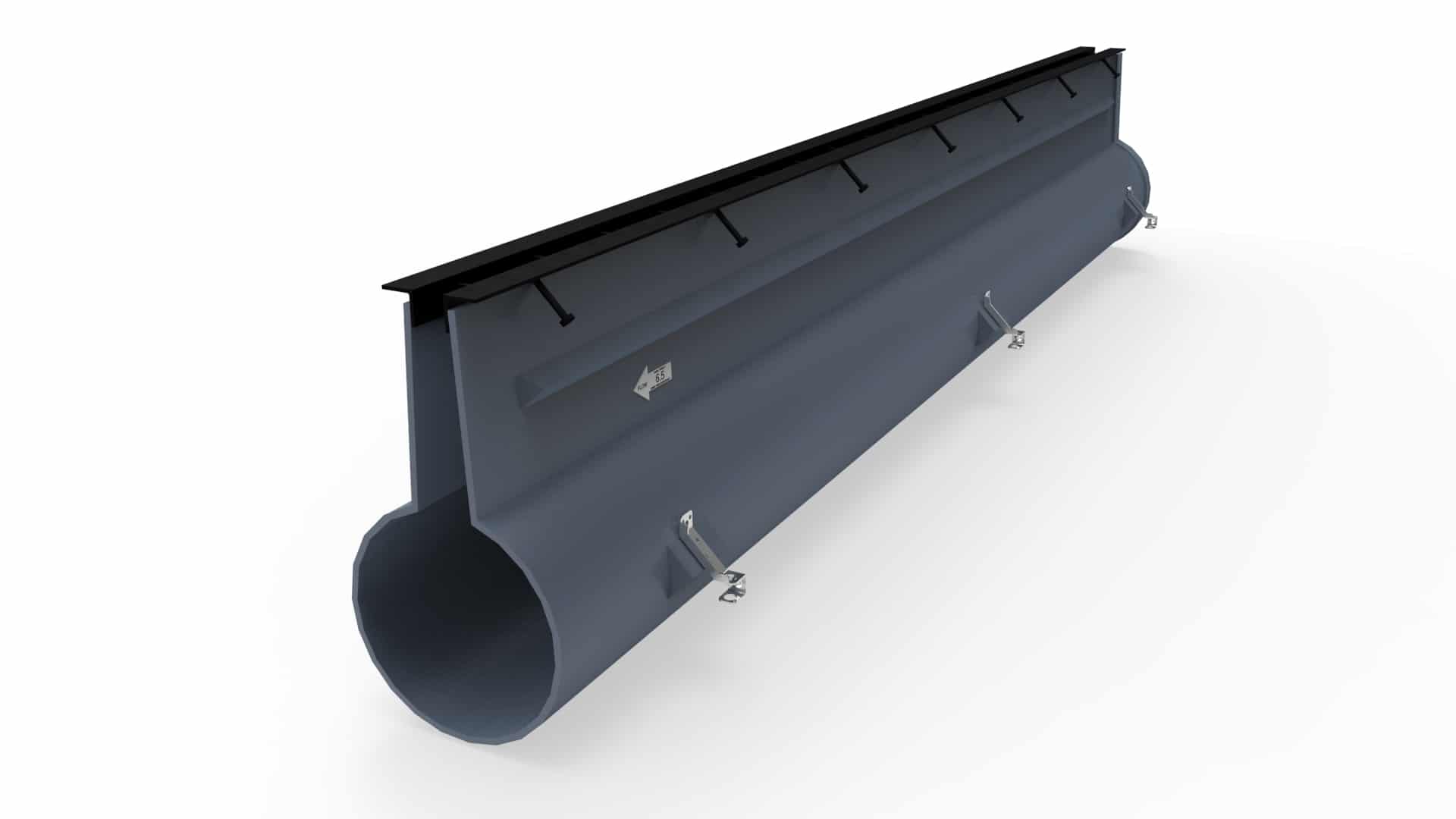

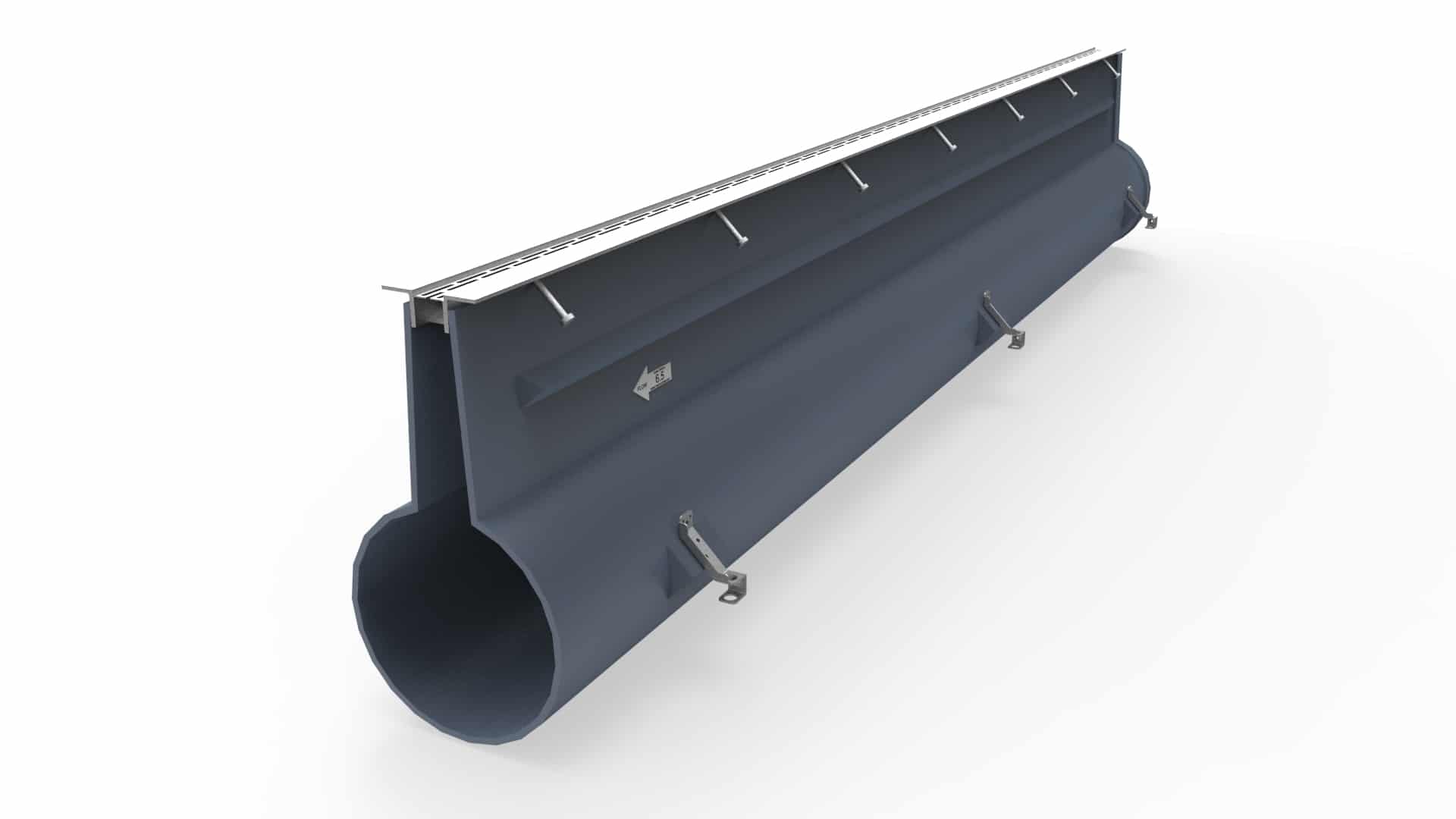

12 inch wide slotted drain

12″ diameter slotted drain (slot drain) can be sloped from 16″ to 26″ deep typical.  Typically used for flows up to 5 cfs (2250 gpm).  Frame options are heavy duty and extreme duty in black powder painted steel, galvanized steel, and stainless steel.  Dura Trench 12 inch wide slotted drains come complete with installation brackets, end plates and outlets. (contact us for pricing and availability on deeper depths)

Slot drains are a great solution for many kinds of drainage system needs. You can use them for walkways, around pool surrounds, at the edges of garden beds and in manufacturing settings. Picking the right size drain can make all the difference to your drainage system performance and slot drains are a great way to remove liquid wastes without pulling debris and other items into the water at the same time. These drains will keep a large amount of the debris that clogs drains from being introduced into your drainage system.

In manufacturing settings, these drains are perfect for walkways and areas that need to be kept free of water but might also cause issues with debris getting into the drains and clogging them. You can sweep across the top of these kinds of drains, or mop over them and there will be few issues with debris or junk getting into the drainage system to become an issue in another location. Even floor cleaning units will be able to pass over these drains with ease and will not have trouble cleaning the flooring space around the drain slot.

These drains are also very effective along paths and walkways, where slotted drains might cause tripping hazards for people. If you have an area that needs access to a high level of drainage that can withstand a lot of weight passing over it, these are often the right kinds of drains for this need as well.

Slot drains can be made in many different materials to withstand all kinds of levels of traffic. If you have to drive large machines or cars over your drainage system, a slot drain can be the right choice for this part of your drainage system needs.

These drains are commonly used at industrial sites as well as airports and seaports to prevent tripping and slipping hazards while also handling large volumes of water. You might not even know that you are walking across one of these drains because they are so discreet and often appear to be seams in the concrete or other walkway surface.

This is really ideal if you have business people walking across the area in question where heeled shoes might get caught in a traditional drain or if you are wanting to be sure that people can wheel bags or suitcases without impediment.

You can choose to have your slot drain made in any kind of material that is needed for the kind of wastes that you are dealing with on a daily basis. If you have caustic or chemical wastes that need to be drained or cleaned off of a walkway or work area, you can elect to use slotted drains that are made of durable materials that will not corrode or fall apart when exposed to these chemicals. Slot drains can be made in any arrangement and can attach to the rest of your drainage system with ease.

You can order custom slotted drains or select from our extensive selection of prefabricated slot drains for your drainage system needs.

Typical 12 inch wide slotted drain applications:

Highways

Roadways

Sea ports

Airports

Driveways

Additional information

Weight N/A
Dimensions N/A
PRODUCT INFO Pipe diameter: 12" I.D. Slot width: select 1/4" wide or 1.75" wide Section length: 10' long Depth: varies from 16" to 26" Slope: 0.5% typical (any other slope as required) Trench Material:  Polyester glass fiber reinforced polymer concrete Frame Material:  Various loadings, materials, and finishes offered.   Note:  after placing order a customer service representative will call you to confirm the details of your order and that it is configured in the manner that you choose.
Frame

EXSPBP, EXSPGS, EXSPSS, HDSPBP, HDSPGS, HDSPSS

SPECIFICATION SHEETS
HDSPBP EXSPBP
HDSPGS EXSPGS
HDSPSS EXSPSS

RETURN & REFUND POLICY This product is assembled to order and will be custom built to your specifications. As a result the trench is non-returnable. Grates and locking hardware are returnable. If they are in re-saleable condition they will be accepted and will be assessed a 25% restocking fee.
SHIPPING INFO Shipping of the DuraTrench product is by truck freight only due to the long section lengths. A forklift is recommended to unload the materials, however, lift gate service is available for an additional charge.
