8-inch Wide ADA Fiberglass Mesh Trench Drain Grate


8-in Wide ADA Fiberglass Mesh Trench Drain Grate

Manufactured to order

SKU: 08HC48FG Categories: ,

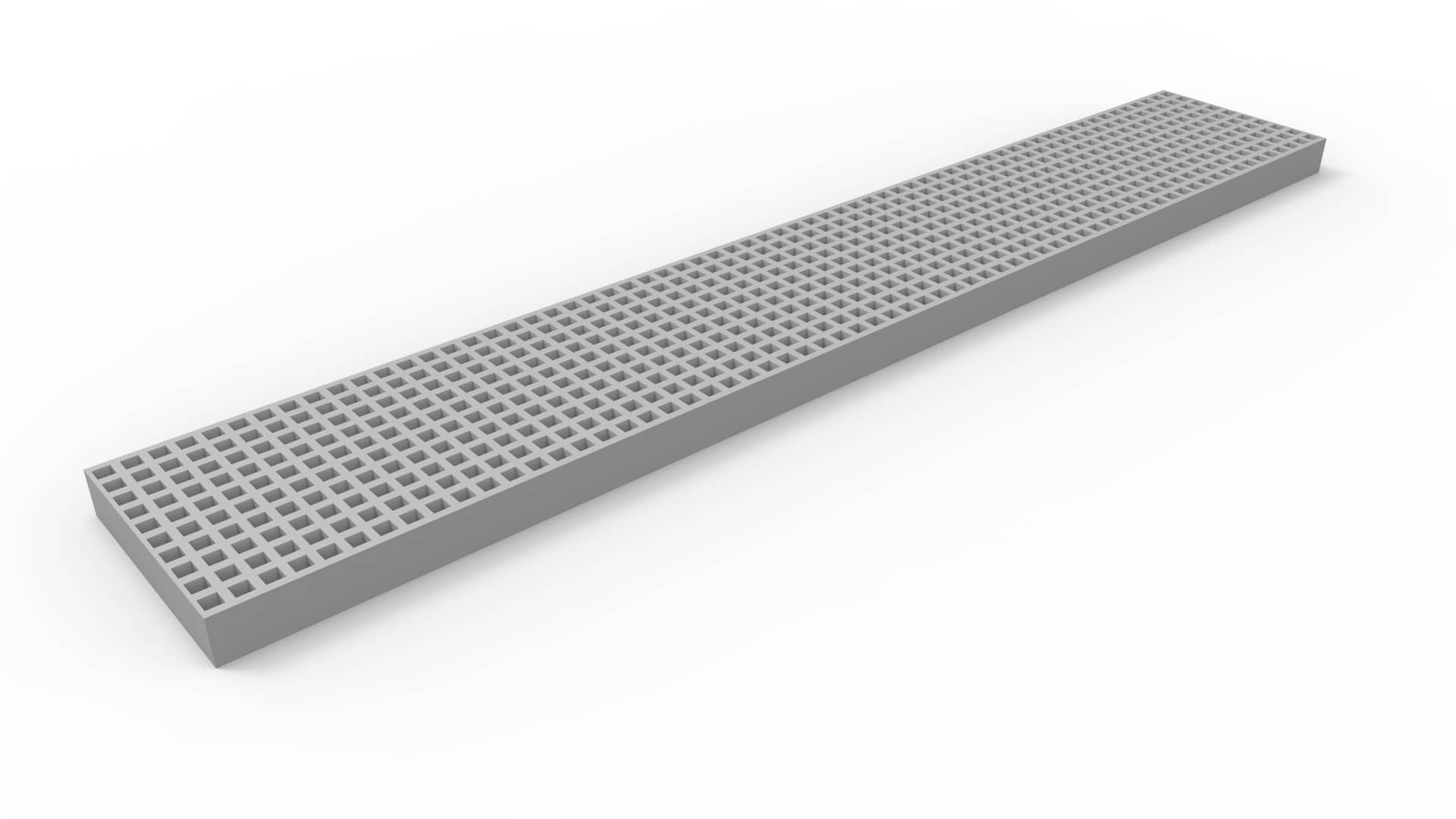

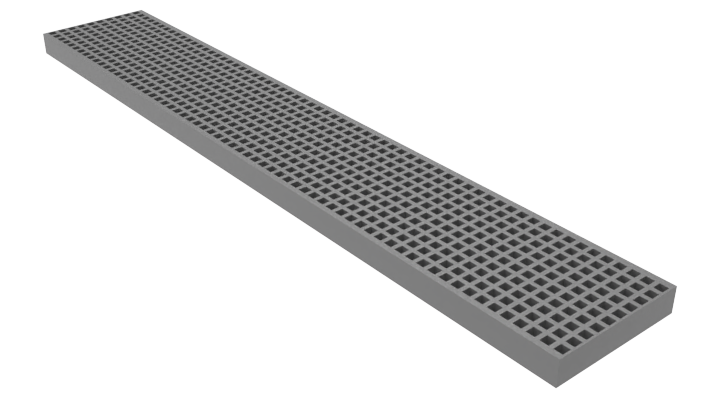

8-in Wide ADA Fiberglass Mesh Trench Drain Grate

  • Anti-slip grit is useful in wet and/or slimy environments
  • Available without the grit upon request – please specify this in the notes at checkout
  • Light gray color
  • .5″ x .5″ mesh spacing for ADA compliance
  • Rated for DIN load class C
  • Ideal for use when corrosion resistance and good inflow are important
  • The grate comes with an anti-slip grit on the top that is useful in wet and slimy environments. Upon request, it can be ordered without the traction grit.  I
  • t is typically used on a 6″ wide prefabricated trench drain, 6″ wide stainless steel trench drain, or 6″ wide catch basin.
  • Typical uses are trench drains in slick production areas of manufacturing plants and food and beverage plants.  We have also seen the use of this grating in applications such as pools, kennels, and many other pedestrian areas.

Additional information

Weight 12.7 lbs
Documents Click here for Specification Sheet
