50" wide stainless perforated trench drain grate

50" wide stainless perforated trench drain grate

SKU: 50E24SS

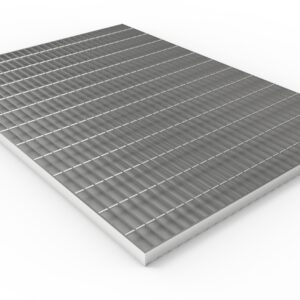

T304 Stainless steel perforated grate - 50" wide x 24" long x 1.5" thick - rated for DIN load class C.


This 50" wide trench drain grate is used where corrosion resistance, ADA compliance and heel compliance are a priority.  It is typically used on a 48" wide prefabricated trench drain, 48" wide stainless steel trench drain, or 48" wide catch basin.  The small openings are more prone to clogging, but will provide adequate inflow when properly maintained.  Typical uses are trench drains in production areas where the user is trying to keep small objects out of the drain.  This trench drain grate is also used in parks and common areas where pedestrians are present and a large drain is required.

  • Documents

    Click here for Specification Sheet
