50-inch Wide Galvanized Steel Bar Grate – Light Duty

Category: 50" wide trench drain grates, Drainage Grates
SKU: 50G24GSA
Documents: Click here for Specification Sheet

SKU: 50G24GSA

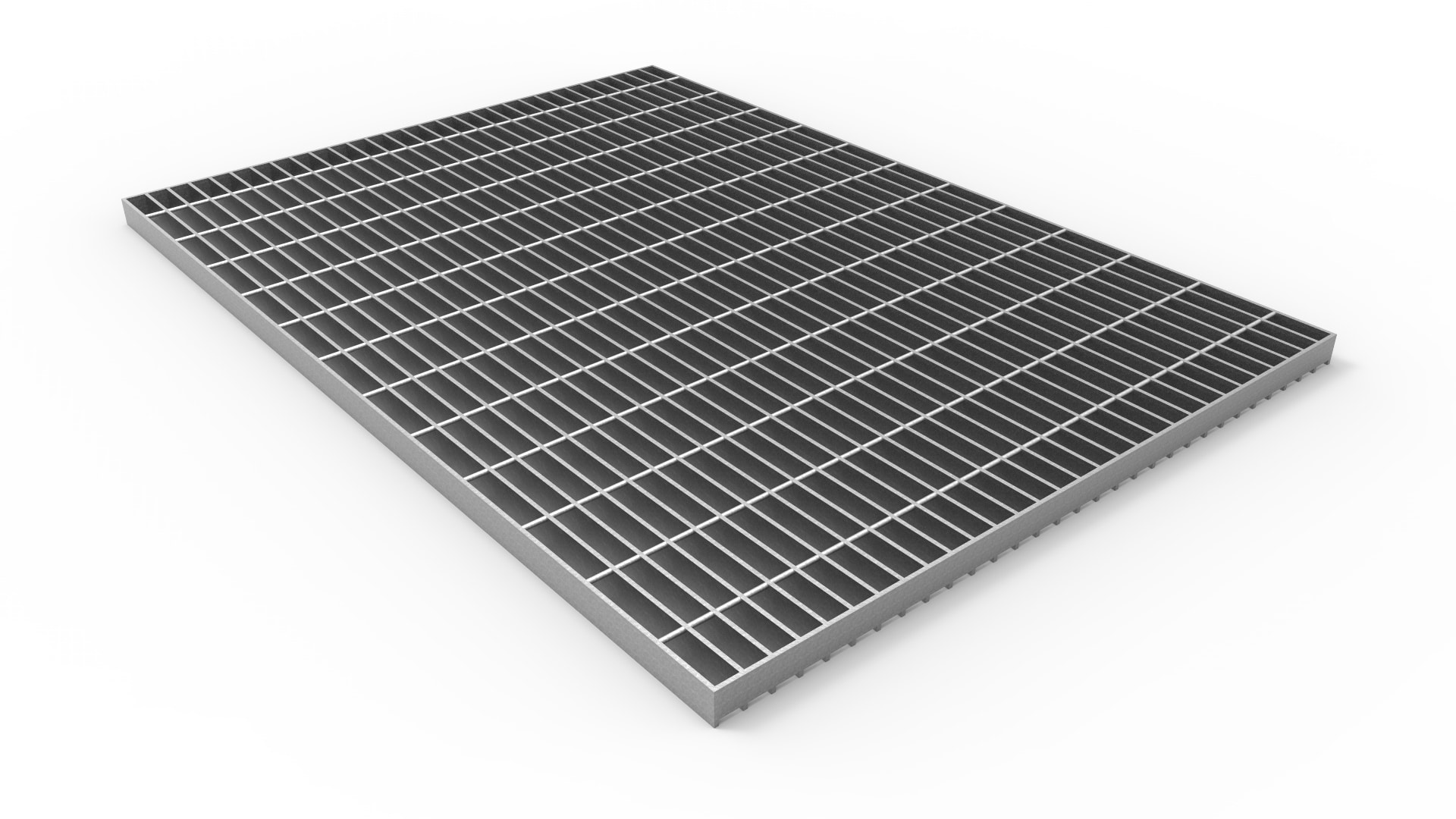

50-inch Wide Galvanized Steel Bar Grate – Light Duty

  • 50-inches wide x 24-inches long x 1.5-inches thick
  • Fabricated with 3/8-inch thick bearing bars at 1 3/16-inch on center, banded edges, and cross bars at 4-inch on center
  • Rated for DIN Class A – Light Duty Grate design load up to or exceeding 3,372 lbs per foot. (15 kn)
  • General purpose use
  • Corrosion resistant
  • Typically used on a 48-inch stainless steel trench drain or a 48-inch wide catch basin
  • The openings allow for the intake of large volumes of water
  • Typically used in commercial kitchens, chemical plants, food and beverage facilities, industrial and manufacturing facilities and any other areas where a high intake volume and corrosion resistance are necessary
