50-inch Wide Black Ductile Iron Solid Trench Drain Cover

Category: 50" wide trench drain grates, Drainage Grates
SKU: 50A24DI
Documents: Click here for Specification Sheet

SKU: 50A24DI

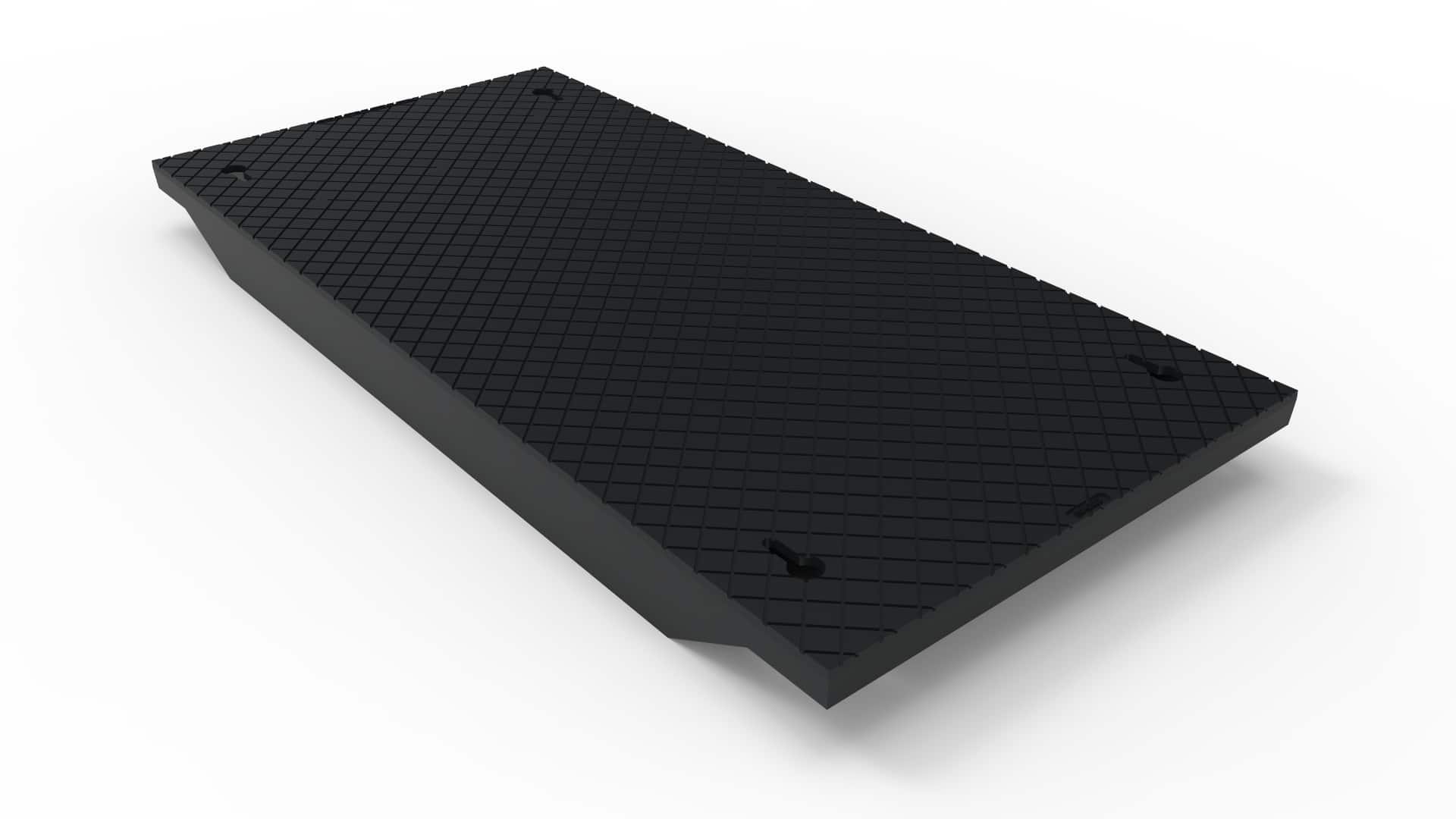

50-inch Wide Black Ductile Iron Solid Trench Drain Cover – Extra Heavy Duty

  • Important, please specify smooth or embossed finish (slip-resistant) in the notes at checkout
  • 50″ wide x 24″ long x 1.5″ thick
  • Black painted finish
  • Rated for DIN load class D – Extra heavy-duty grate design load of at least 89,920 lbs per foot. (400 kn). For pneumatic forklift traffic.  Roads and Highways. H-20 Load Rated
  • Four “lifting eyes” located on each corner of the grate for use with a chain-lifting device.
  • Typical uses are utility trenches in airports, water and wastewater treatment facilities, industrial and manufacturing facilities, and any other area where utility trenches may be required
  • Optional customization is available. Contact your local sales rep for more information
  • Contact your local sales rep to inquire about rate discounts that may be available to you
