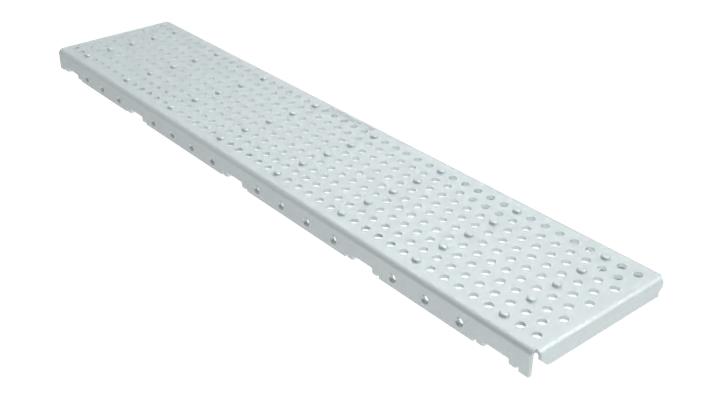

5-in Wide Light Duty Perforated Galvanized Steel Trench Drain Grate

$37.53

5-in Wide Light Duty Perforated Galvanized Steel Trench Drain Grate

Call for Availability

dura trench log spelled out

Description

SKU: 05E24GSA

5-in Wide Light Duty Perforated Galvanized Steel Trench Drain Grate

  • 12-Gauge stamped perforated galvanized steel with ADA compliant & heel proof openings
  • Hot-dipped galvanized for excellent corrosion resistance
  • Architectural grade grate is rated for DIN load class A, best suited for pedestrian-only traffic
  • Typically used on a 4″ wide prefabricated trench drain or 4″ wide catch basin
  • Excellent slip resistance
  • Use this grate in areas to act as a screen to keep solids on top of the trench drain, preventing the solids from entering the trench drain channel.
  • Use this grate as an economical alternative to stainless steel in pedestrian areas
  • Because of the small openings, proper maintenance is required to maintain the adequate inflow of water to the drainage system

Brand

Eric'sons Dura Trench

Eric'sons Dura Trench manufactures high quality trench drains, slot drains, stainless steel trench drains, trench drain grates, radius trench drains, and utility trenches.
dura trench log spelled out

Additional information

Weight 3.8 lbs
Dimensions 24 × 5 × .75 in
Documents Click here for Specification Sheet
