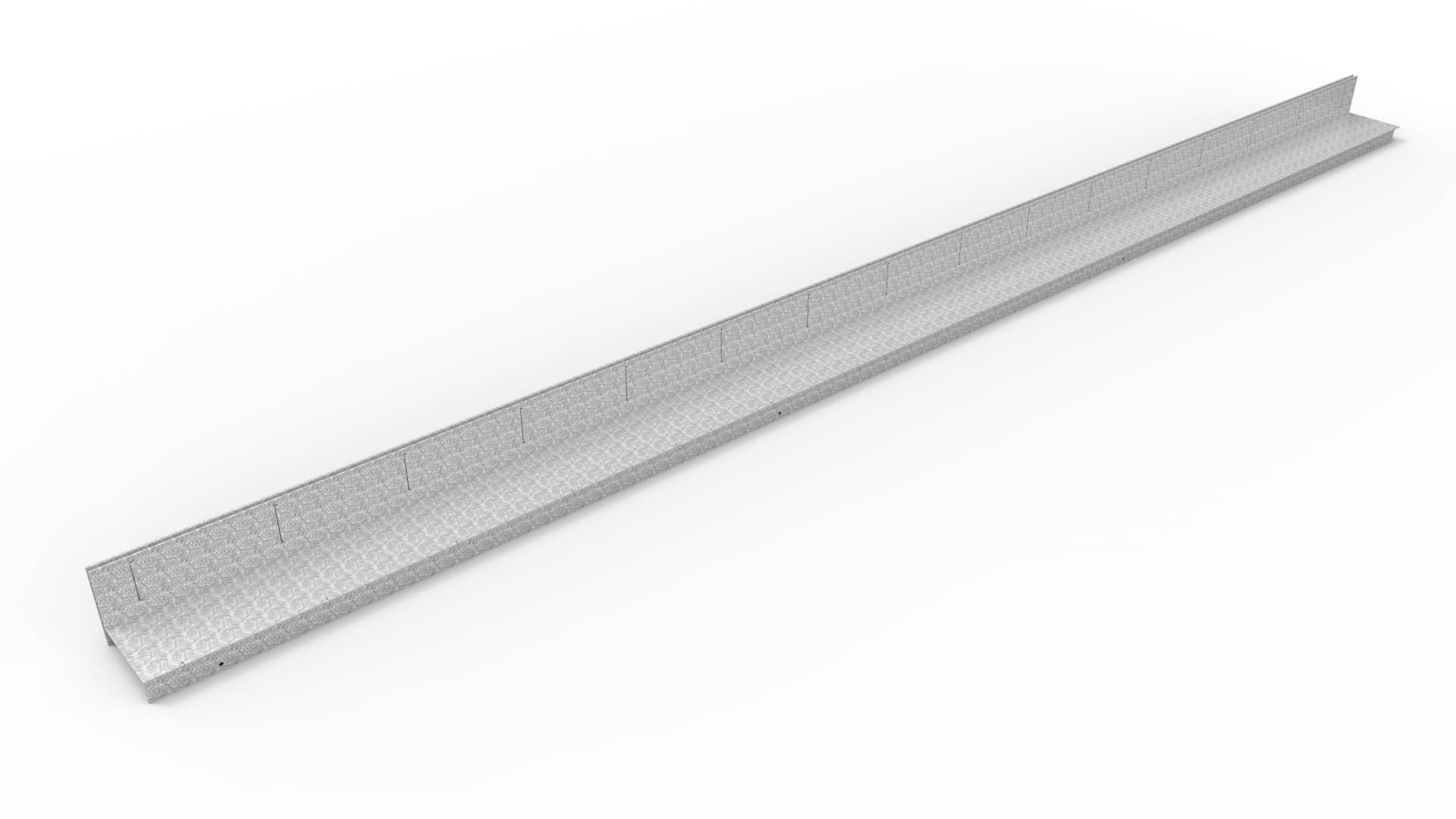

5-in. Wide Galvanized Paver Slot Trench Drain Cover

$299.61

5-in. Wide Galvanized Paver Slot Trench Drain Cover

Call for Availability

SKU: 05P48GS Categories: ,

Description

SKU: 05P48GS

5-in. Wide Galvanized Paver Slot Trench Drain Cover

  • 1/4″ wide ADA-compliant slot opening
  • Rated for DIN load class C.
  • This is a specialty trench drain grate that is 5″ wide at the base but has a slotted throat that extends to the surface and is ADA compliant and Heel proof
  • The cover is designed to be used with stone or brick pavers
  • The recess is 3″ allowing a thin-set bed plus a standard 2 3/4″ thick paving stone
  • Typically used on a 4″ wide prefabricated trench drain, or 4″ wide catch basin.
  • Hot-dipped galvanized for corrosion resistance
  • This grate allows for a larger trench drain below with a small almost invisible top
  • Use this grate in high-end patios, pavilions, around fountains, pools, and any other area where the look of the trench drain is very important.
  • Ideal for retrofitting a previously installed trench drain.
  • When considering a new drainage system, we recommend using our standard slot drain product line. This is still an excellent option for retro-fitting an existing trench drain system.

Additional information

Weight 32.0 lbs
Documents Click here for Specification Sheet
