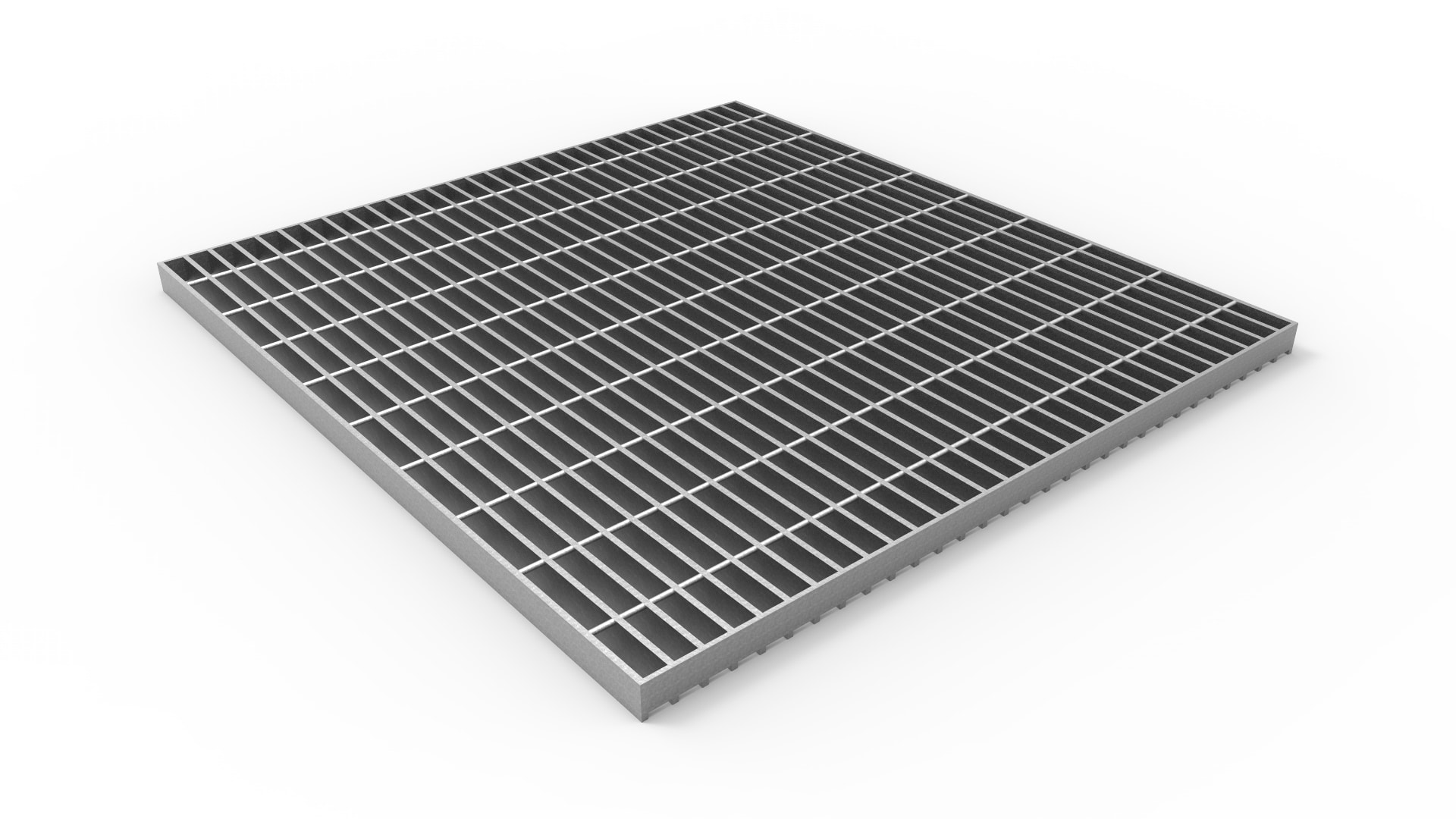

38″ wide galvanized steel trench drain bar grate


SKU: 38G24GSB Categories: ,


galvanized steel bar grate  – 38″ wide x 24″ long x 1.5″ thick, with 1/4″ thick bearing bars at 1 3/16″ O.C., banded edges, and cross bars at 4″ o.c


This is a good general purpose 38″ wide trench drain grate.  It is typically used on an 36″ wide prefabricated trench drain or 36″ wide catch basin.  The larger openings plug less often making this grate ideal for the intake of large amounts of water.  Typical uses are trench drains in industrial and manufacturing facilities, and any other area where a high intake volume is required.

Additional information

Weight 185.40 lbs
Dimensions 24 × 38 × 1.5 in
Documents Click here for Specification Sheet
