26″ wide ductile iron slotted trench drain grate


Call for availability

SKU: 26B24DIF Categories: ,

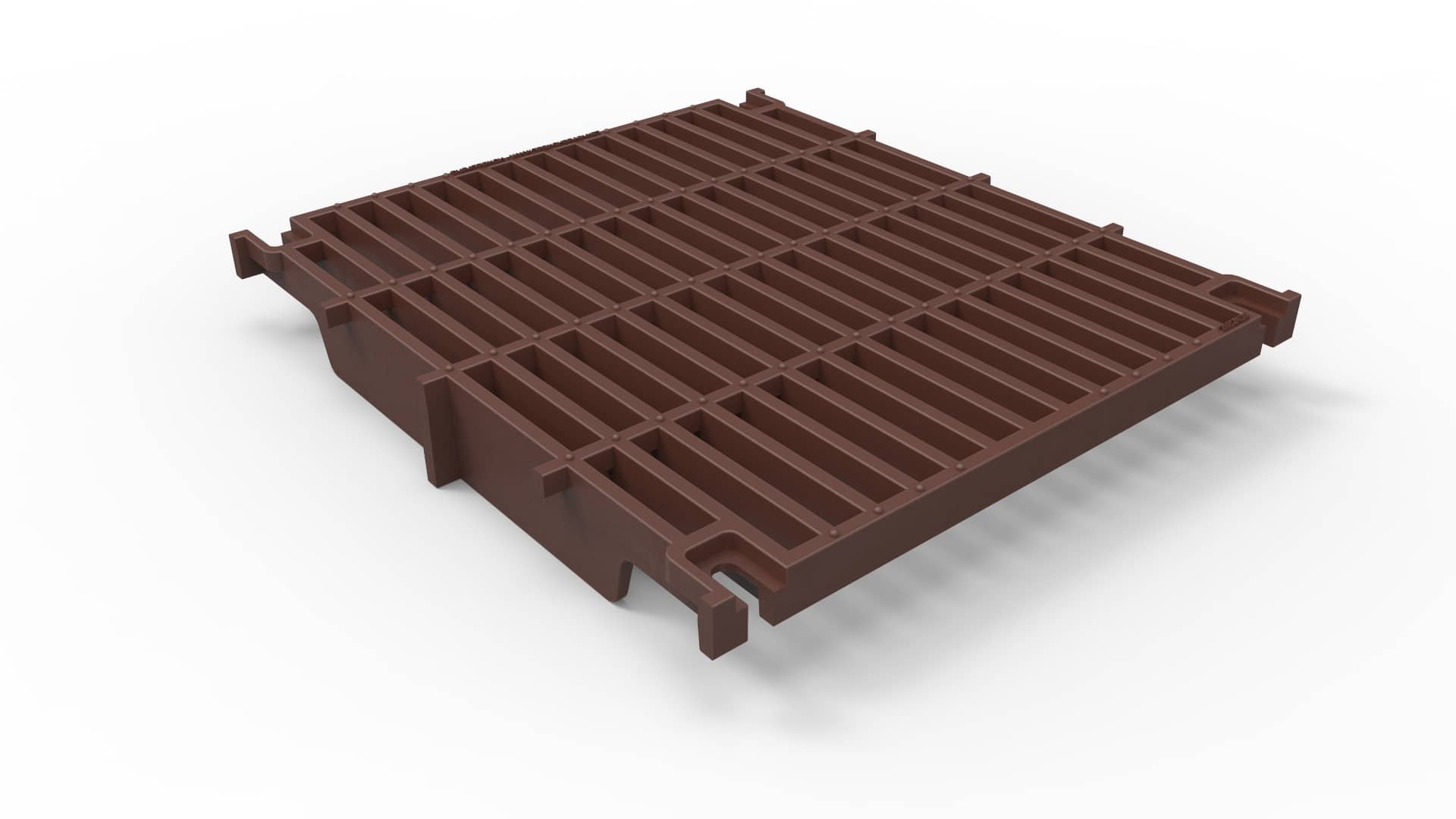

Ductile Iron Slotted Grate – natural finish – 26″ wide x 24″ long x 1.5″ thick – rated for DIN load class F.


This is one of our strongest 26″ wide trench drain grates.  It is typically used on an 24” wide prefabricated trench drain or 24” wide catch basin.  The larger openings plug less often making this grate ideal for the intake of large amounts of water.  Typical uses are trench drains in airports, sea ports, industrial and manufacturing facilities, and any other area where extremely high loads are present.

Additional information

Weight 140 lbs
Dimensions 24 × 26 × 3.5 in
Documents Click here for Specification Sheet
