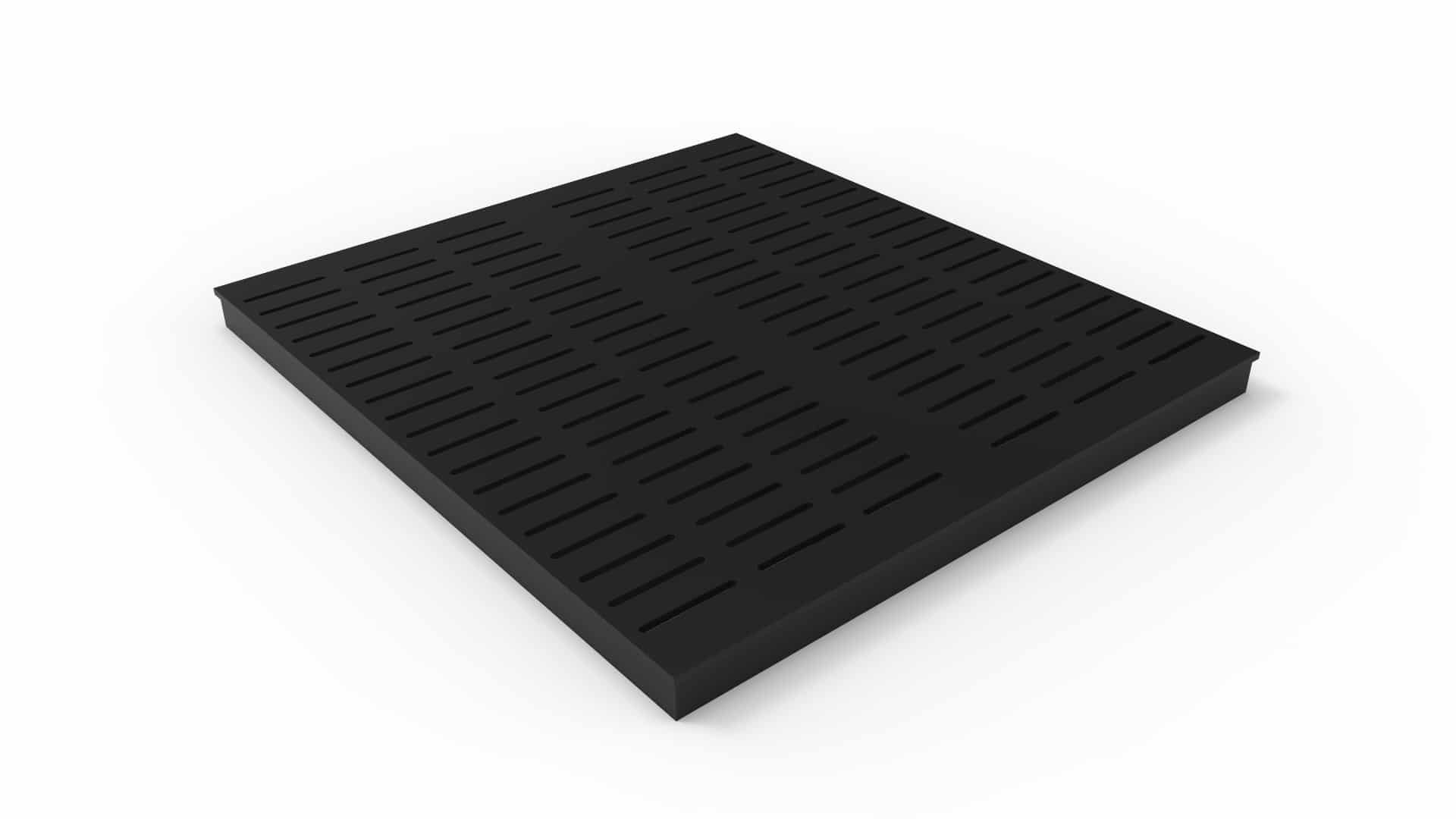

26″ wide ADA/Heel Proof black powder coated steel slotted trench drain grate


SKU: 26CF24BPB Categories: ,


Pedestrian ADA / heel proof black powder coated steel longitudinally slotted grate – 26″ wide x 24″ long x 1.5″ thick  – rated for DIN load class B.


This 26″ wide trench drain grate is used where ADA compliance and heel compliance take priority over inflow.  It is typically used on an 24” wide prefabricated trench drain or 24” wide catch basin.  The small openings are more prone to clogging, but will provide adequate inflow when properly maintained.  Typical uses are trench drains in combined traffic and pedestrian areas such as at shopping centers, churches, gas stations, and any other area where a high flow rates are required but pedestrians may be present.

Additional information

Weight 183.9 lbs
Dimensions 24 × 26 × 1.5 in
Documents Click here for Specification Sheet
