20″ wide ADA/Heel proof stainless steel slotted trench drain grate


SKU: 20CF24SSB Categories: ,

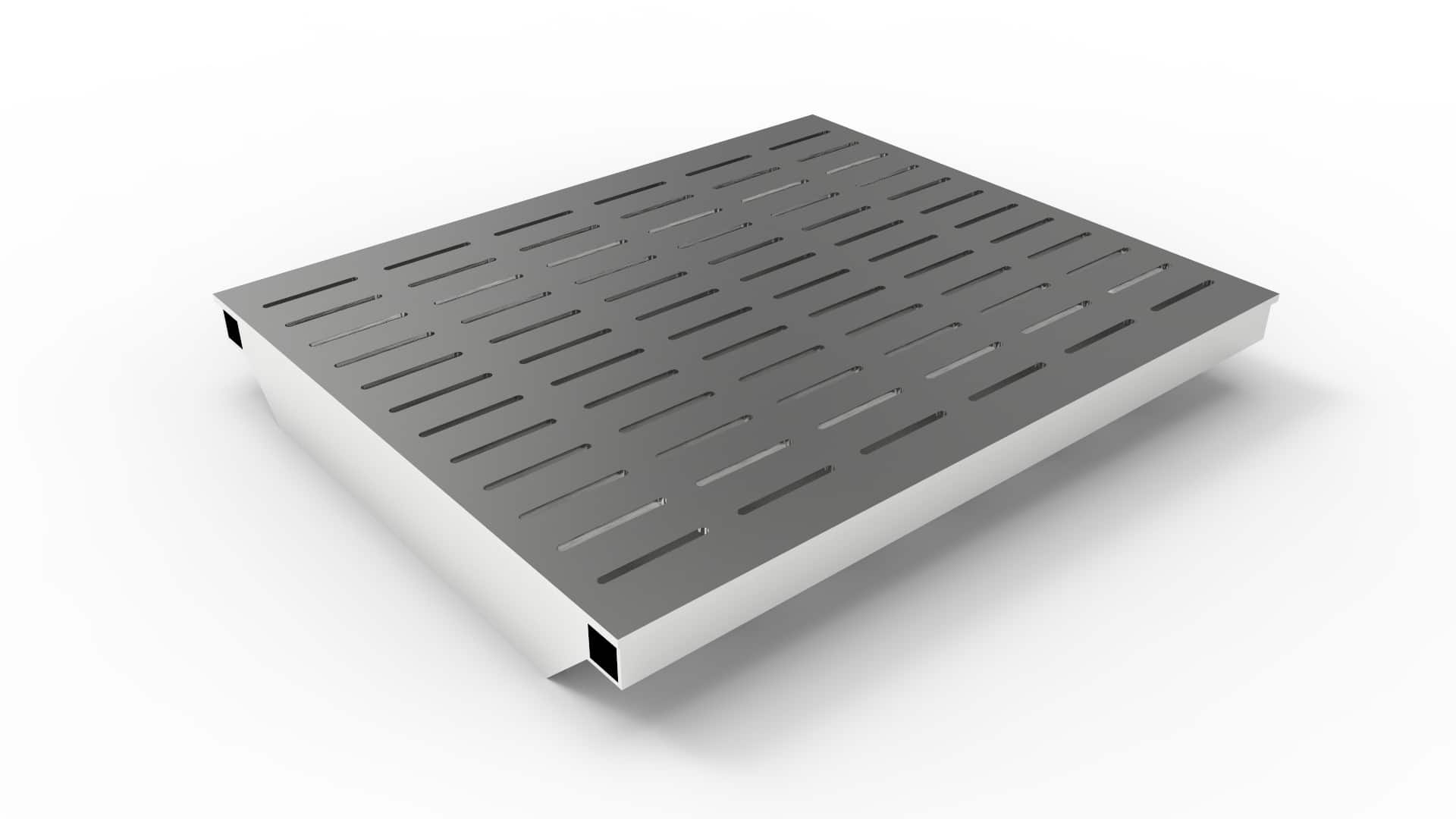

T304 Stainless steel ADA compliant / Heel proof grate – 20″ wide x 24″ long x 1.5″ thick – rated for DIN load class B.


This 20″ wide trench drain grate is used where corrosion resistance, ADA compliance and heel compliance take priority over inflow.  It is typically used on an 18″ wide stainless steel trench drain or 18″ wide catch basin.  The small openings are more prone to clogging, but will provide adequate inflow when properly maintained.  Typical uses are trench drains in production areas where the user is trying to keep small objects out of the drain.  This trench drain grate is also used in parks and common areas where pedestrians are present and a large drain is required.

Additional information

Weight 100.5 lbs
Dimensions 24 × 20 × 1.5 in
Documents Click here for Specification Sheet
