12″ wide ADA/Heel proof stainless steel slotted trench drain grate


SKU: 12CF24SSC Categories: ,

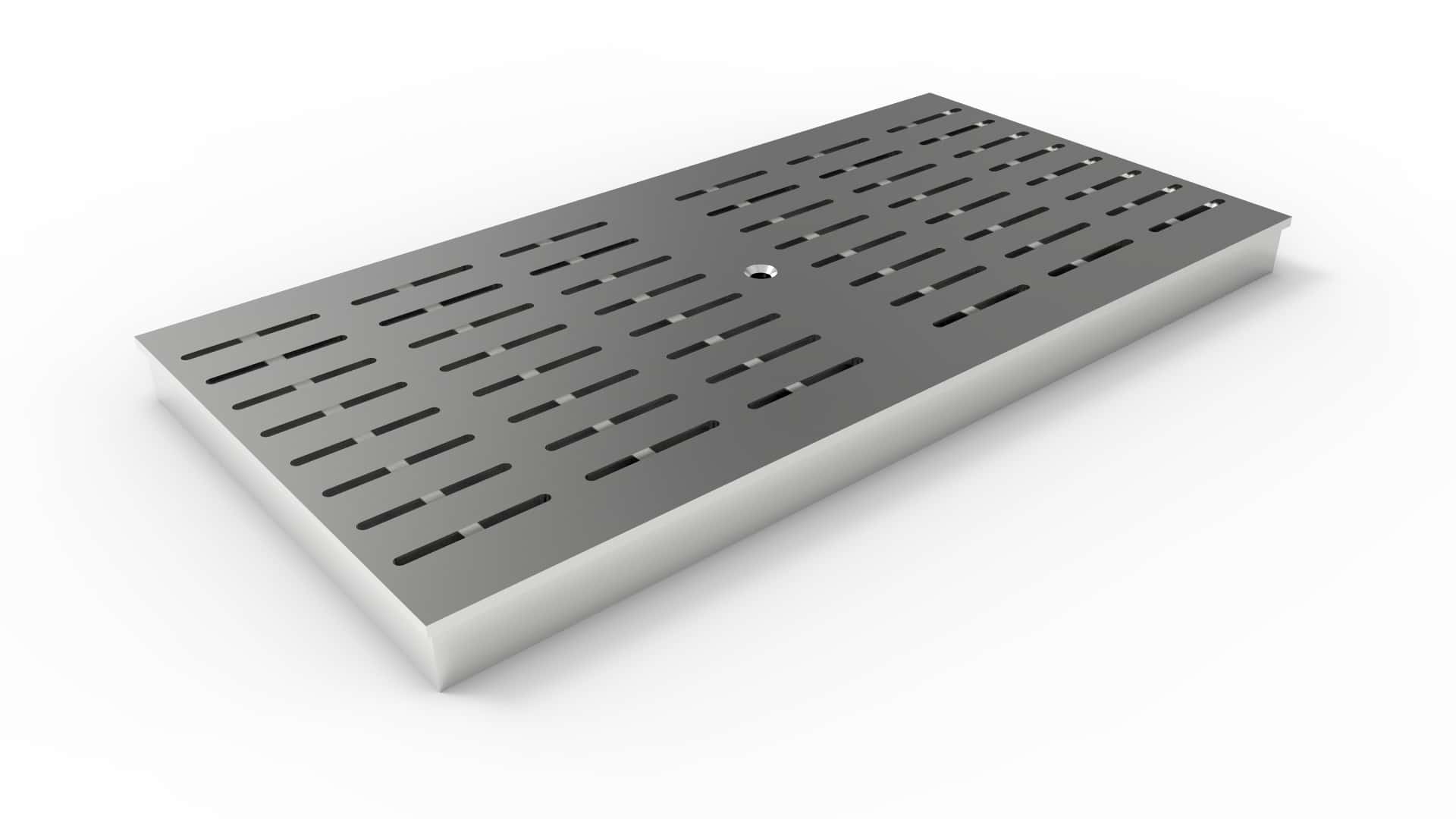

T304 Stainless steel ADA compliant / Heel proof grate – 12″ wide x 24″ long x 1.5″ thick – rated for DIN load class C.


This 12″ wide trench drain grate is used where corrosion resistance, ADA compliance and heel compliance take priority over inflow.  It is typically used on an 10” wide precast trench drain, 10” wide stainless steel trench drain, or 10” wide catch basin.  The small openings are more prone to clogging, but will provide adequate inflow when properly maintained.  Typical uses are trench drains in production areas where the user is trying to keep small objects out of the drain.  This grate is also used in combined pedestrian and vehicular traffic areas where a corrosion resistant grate option is desired.

Additional information

Weight 43.6 lbs
Dimensions 24 × 12 × 1.5 in
Documents Click here for Specification Sheet
