10″ wide stainless steel trench drain bar grate

$1,297.51

SKU: 10G24SSE Categories: ,

Description

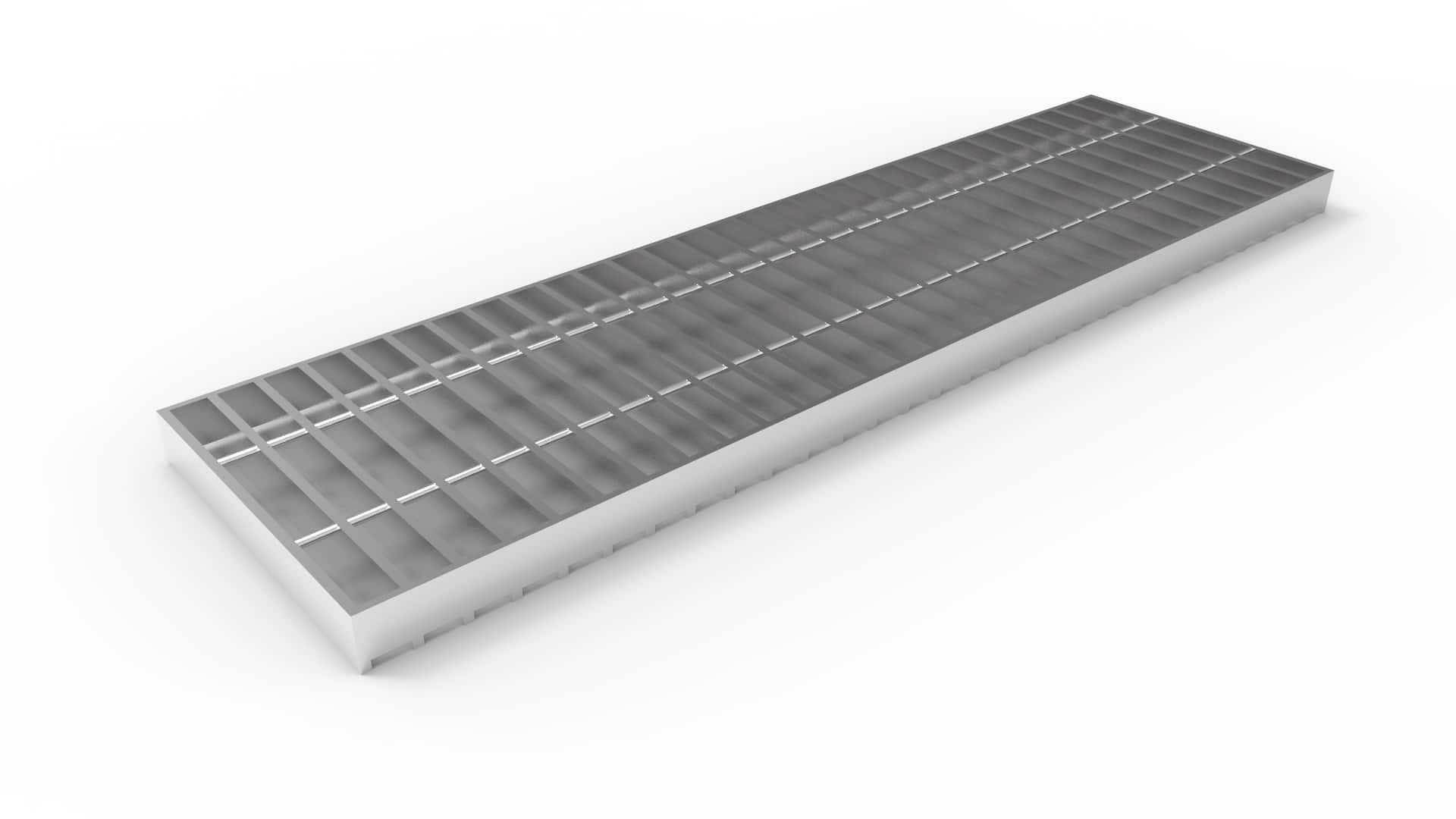

T304 stainless steel bar grate  – 10″ wide x 36″ long x 1.5″ thick, with 3/8″ thick bearing bars at 1 3/16″ O.C., banded edges, and cross bars at 4″ o.c



This is a good general purpose corrosion resistant 10″ wide trench drain grate.  It is typically used on an 8″ wide stainless steel trench drain or 8″ wide catch basin.  The larger openings plug less often making this grate ideal for the intake of large amounts of water.  Typical uses are trench drains in kitchens, chemical plants, food and beverage facilities, industrial and manufacturing facilities, and any other area where a high intake volume and corrosion resistance are required.

Additional information

Weight 36.8 lbs
Dimensions 24 × 10 × 1.5 in
Documents Click here for Specification Sheet
Locking Devices

GLSS8 Stainless grate lock, None
