Chemical Trench Drains

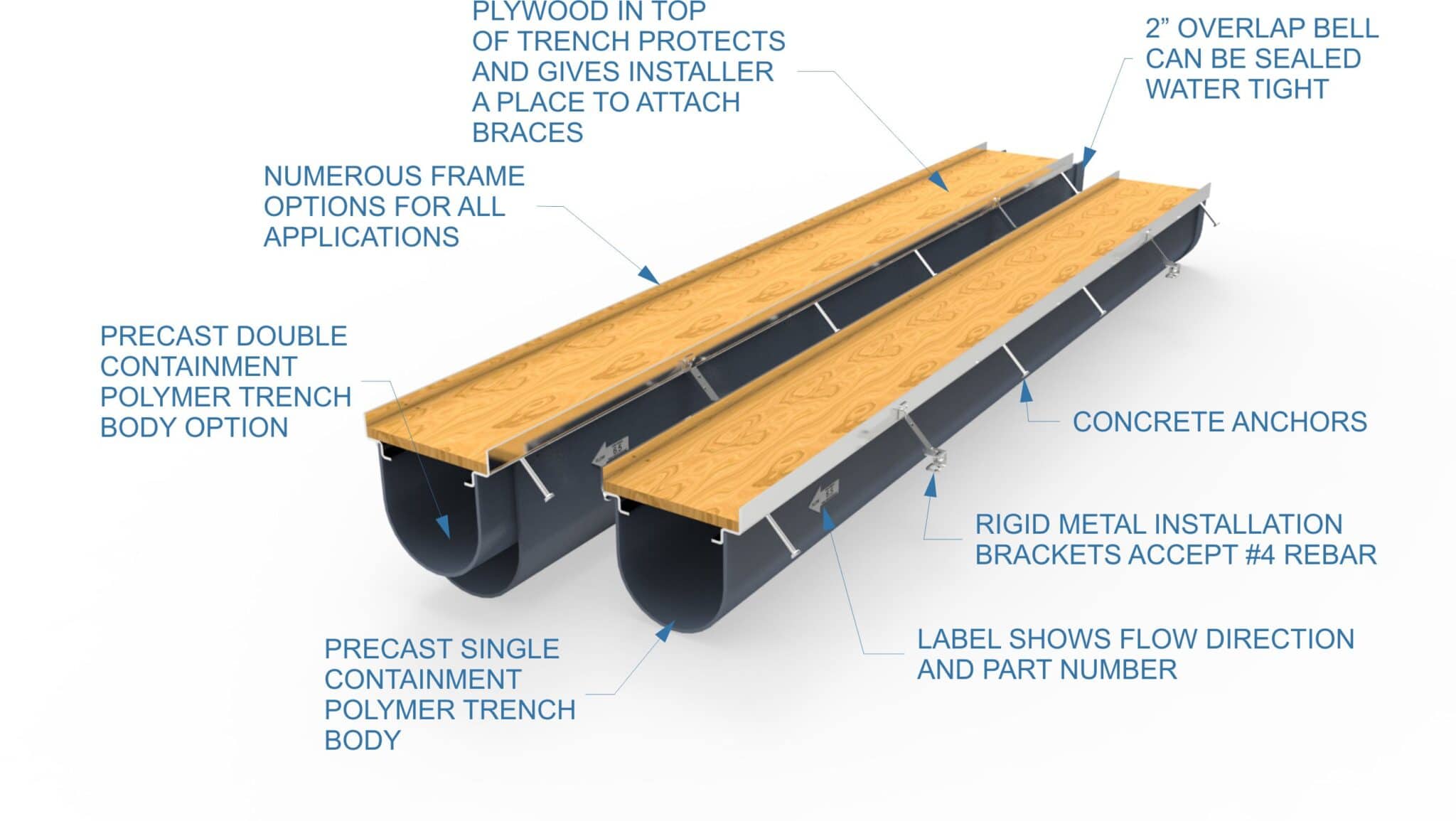

Dura Trench offers secondary containment chemical resistant trench drains in both single and double containment options.  Chemical resistant trench drains have all the features and benefits of our standard prefabricated trench drains with plywood tops, extensive frame and grate options, built in installation aides, any slope, any depth, etc.  Chemical trench drains are offered in 2", 4", 6", 8", 10", 12", 18", 24", 36", and 48" widths.  The primary difference with the chemical resistant trench drains is the composition of the trench bodies making them suitable for secondary containment and high chemical loading drainage applications.  The trench body utilizes a vinyl ester chemical resistant resin along with hard ceramic and aggregates that resist abrasion.  Other resin options are also available.  The chemicals, temperatures, and concentrations should be evaluated for suitability with the chemistry of the resin selected.  View the chemical resistance guide for more information.



The chemical resistant trench drains can be ordered in long sections to reduce field sealing of the joints.  When using for secondary containment of chemicals, the 2" water tight seal-able joint connection will ensure that the system seals tight and stays sealed.  The dual containment trench has an outer chemical resistant liner that can be monitored to ensure that no leaking of the chemical trench systems is occuring.  Dura Trench has the knowledge and ability to construct the right trench drain system for your chemical containment application to ensure environmental compliance.

2" i.d. Chemical Trench Drain

This chemical resistant trench drain can handle flows in the 0.3 cfs (150 gpm) range.  Product comes in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 3" wide trench drain grates to meet any design requirement.

4" i.d. Chemical Trench Drain

This chemical resistant trench drain can handle flows in the 2 cfs (950 gpm) range.  Product comes in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 5" wide trench drain grates to meet any design requirement.

6" i.d. Chemical Trench Drain

This chemical resistant trench drain can handle flows in the 4 cfs (1800 gpm) range.  Product comes in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 8" wide trench drain grates to meet any design requirement.

6" i.d. Chemical Double Containment Trench Drain

This chemical resistant double containment trench drain has an inner and outer liner.  This size can handle flows in the 4 cfs (1800 gpm) range.  Outer secondary containment trench drain liner can have inspection ports or automated leak detection instruments.   Product comes in pre-sloped 8' lengths or 16' lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 8" wide trench drain grates to meet any design requirement.

8" i.d. Chemical Trench Drain

This chemical resistant trench drain can handle flows in the 6 cfs (2750 gpm) range.  Product comes in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 10" wide trench drain grates to meet any design requirement.

8" i.d. Chemical Double Containment Trench Drain

This chemical resistant double containment trench drain has an inner and outer liner.  This size can handle flows in the 6 cfs (2750 gpm) range.  Outer secondary containment trench drain liner can have inspection ports or automated leak detection instruments.   Product comes in pre-sloped 8' lengths or 16' lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 10" wide trench drain grates to meet any design requirement.

10" i.d. Chemical Trench Drain

This chemical resistant trench drain can handle flows in the 9 cfs (4000 gpm) range.  Product comes in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 12" wide trench drain grates to meet any design requirement.

10" i.d. Chemical Double Containment Trench Drain

This chemical resistant double containment trench drain has an inner and outer liner.  This size can handle flows in the 9 cfs (4000 gpm) range.  Outer secondary containment trench drain liner can have inspection ports or automated leak detection instruments.   Product comes in pre-sloped 8' lengths or 16' lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 12" wide trench drain grates to meet any design requirement.

12" i.d. Chemical Trench Drain

This chemical resistant trench drain can handle flows in the 12 cfs (5250 gpm) range.  Product comes in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 14" wide trench drain grates to meet any design requirement.

12" i.d. Chemical Double Containment Trench Drain

This chemical resistant double containment trench drain has an inner and outer liner.  This size can handle flows in the 12 cfs (5250 gpm) range.  Outer secondary containment trench drain liner can have inspection ports or automated leak detection instruments.   Product comes in pre-sloped 8' lengths or 16' lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 14" wide trench drain grates to meet any design requirement.

18" i.d. Chemical Trench Drain

This chemical resistant trench drain can handle flows in the 22 cfs (10,000 gpm) range.  Product comes in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 20" wide trench drain grates​ to meet any design requirement.

18" i.d. Chemical Double Containment Trench Drain

This chemical resistant double containment trench drain has an inner and outer liner.  This size can handle flows in the 22 cfs (10,000 gpm) range.  Outer secondary containment trench drain liner can have inspection ports or automated leak detection instruments.   Product comes in pre-sloped 8' lengths or 16' lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 20" wide trench drain grates to meet any design requirement.

24" i.d. Chemical Trench Drain

This chemical resistant trench drain can handle flows in the 35 cfs (15,500 gpm) range.  Product comes in pre-sloped 8' lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 26" wide trench drain grates to meet any design requirement.

24" i.d. Chemical Double Containment Trench Drain

This chemical resistant double containment trench drain has an inner and outer liner.  This size can handle flows in the 35 cfs (15,500 gpm) range.  Outer secondary containment trench drain liner can have inspection ports or automated leak detection instruments.   Product comes in pre-sloped 8' lengths or 16' lengths with heavy plywood cover  and installation aides standard.  These linear drains are offered with a wide selection of frames and 26" wide trench drain grates to meet any design requirement.
